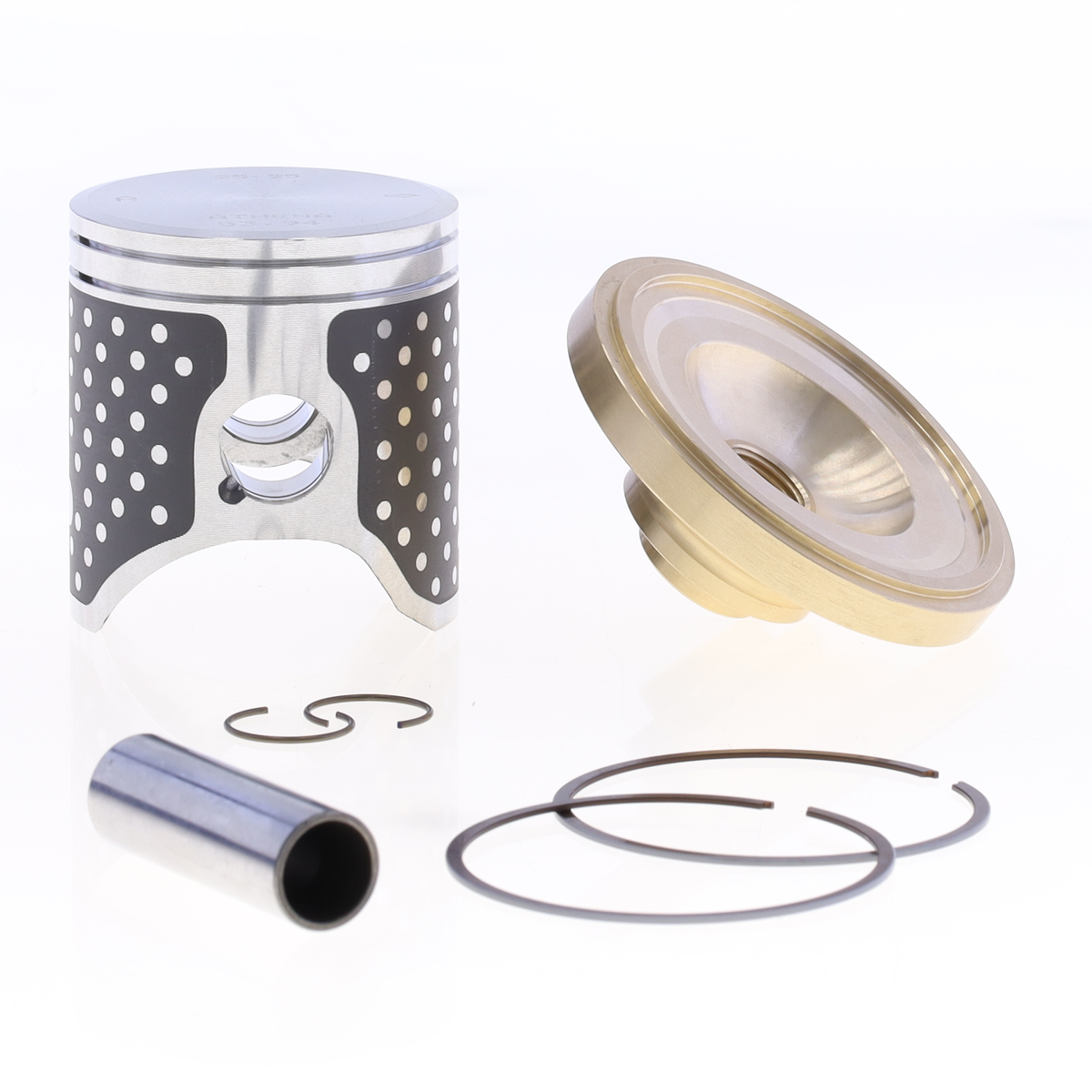

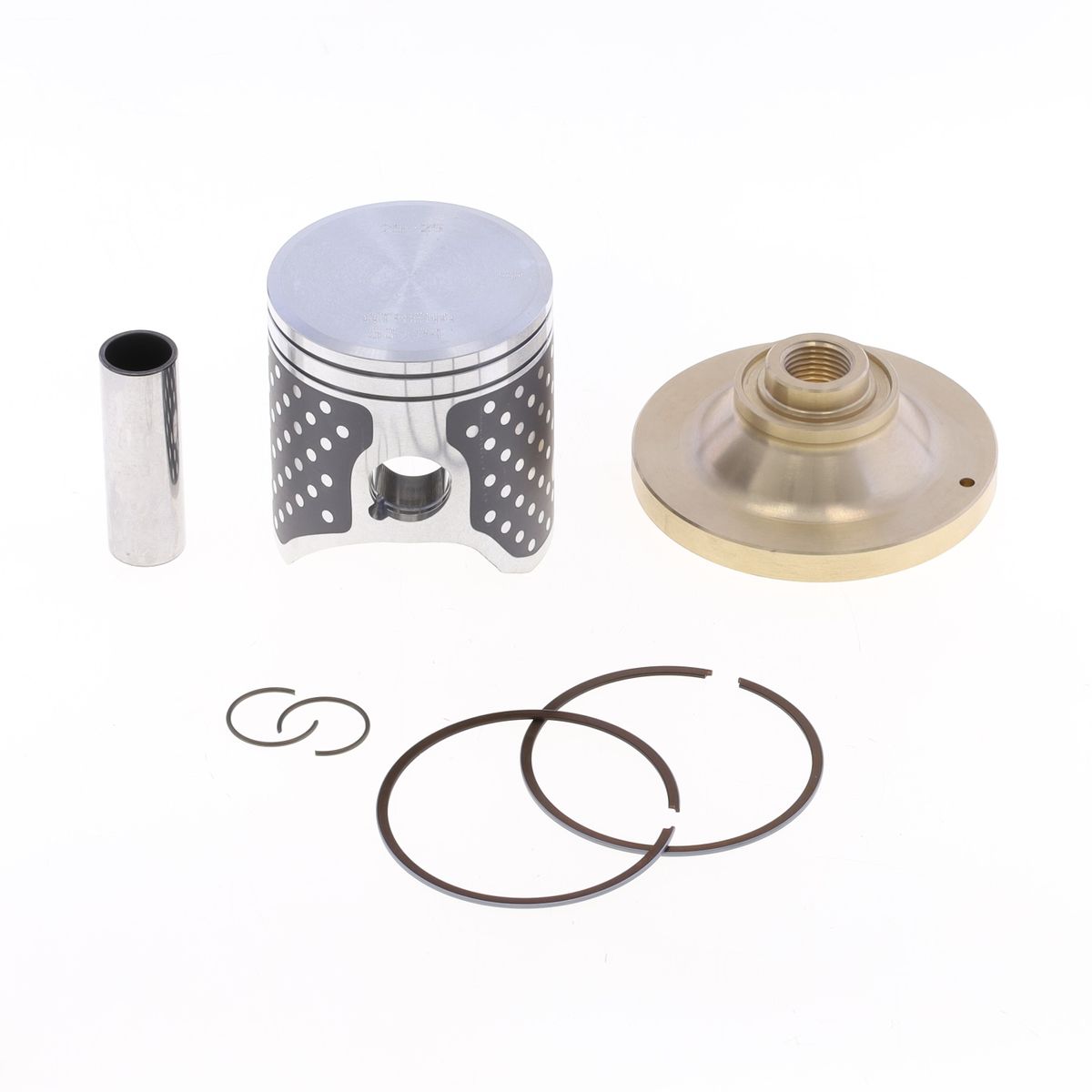

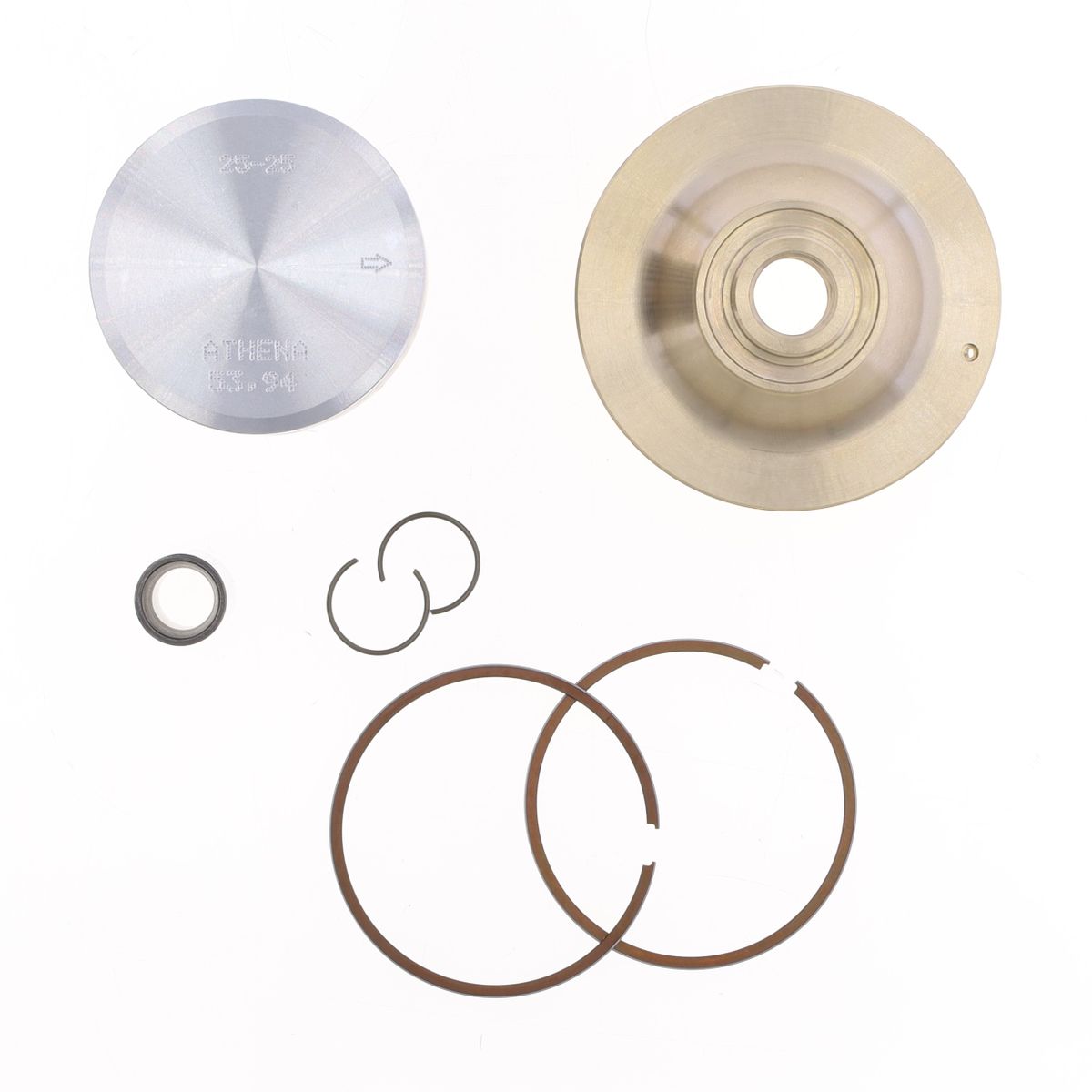

2T Cast Racing Piston Ø 54 mm and Inner Dome Kit
Race Use Only Product – Not intended for street use – Please check details on the “Race use only” footer’s section
WARNING: The piston and dome in this kit are only compatible when used together. Do not use alternative pistons, only those with part numbers S4C05400026A, -B, -C, -D.
Description
Enhance your KTM, Husqvarna, or GasGas 125cc engine with the Athena high-performance piston kit, designed to deliver improved combustion efficiency, reliability, and thermal stability. Manufactured with high-quality materials and precision engineering, this kit optimizes engine performance by reducing mechanical stress and enhancing overall efficiency.
Piston Features:
✅ Flat-top truncated-cone piston with 12° beveled edge – Optimizes compression ratio and enhances turbulence in the combustion chamber for a more efficient burn.
✅ Oil Dots coated walls – Reduces friction and improves lubrication, ensuring smoother operation and extended durability.
✅ Includes two semi-trapezoidal chrome-plated steel rings – Improves gas sealing and provides superior wear resistance under high temperatures.
Bronze Inner Dome – Superior Thermal and Structural Stability
The bronze inner dome ensures excellent thermal resistance and structural stability, maintaining more consistent temperatures and improving heat dissipation within the combustion chamber. Its optimized design enhances the squish effect, promoting better flame propagation for a more uniform and efficient combustion process.
⚠ Important Notes:
- Designed exclusively for use with the Athena piston included in the kit.
- Not compatible with OEM pistons or aftermarket replacements designed for OEM applications.
🏁 Unlock your engine’s full potential with the Athena piston kit – Order now! 🚀
Bullet points
Optimized squish effect for better combustion efficiency
Bronze inner dome ensures thermal and structural stability
Oil Dots coating reduces friction and increases durability
Includes chrome-plated steel rings for superior gas sealing
Technical features
| Big End Pin Diameter (mm) | 15X45X10 |
| Compression Height (mm) | 28.90 |
| Compression Ratio | 15.4:1 |
| Line | Enduro |
| Number Of Segments | 2 |
| Piston Head Type | Flat |
| Piston Pin Type | Biconical |
| Piston Size (mm) | 53.94 |
| Piston Type | Cast |
