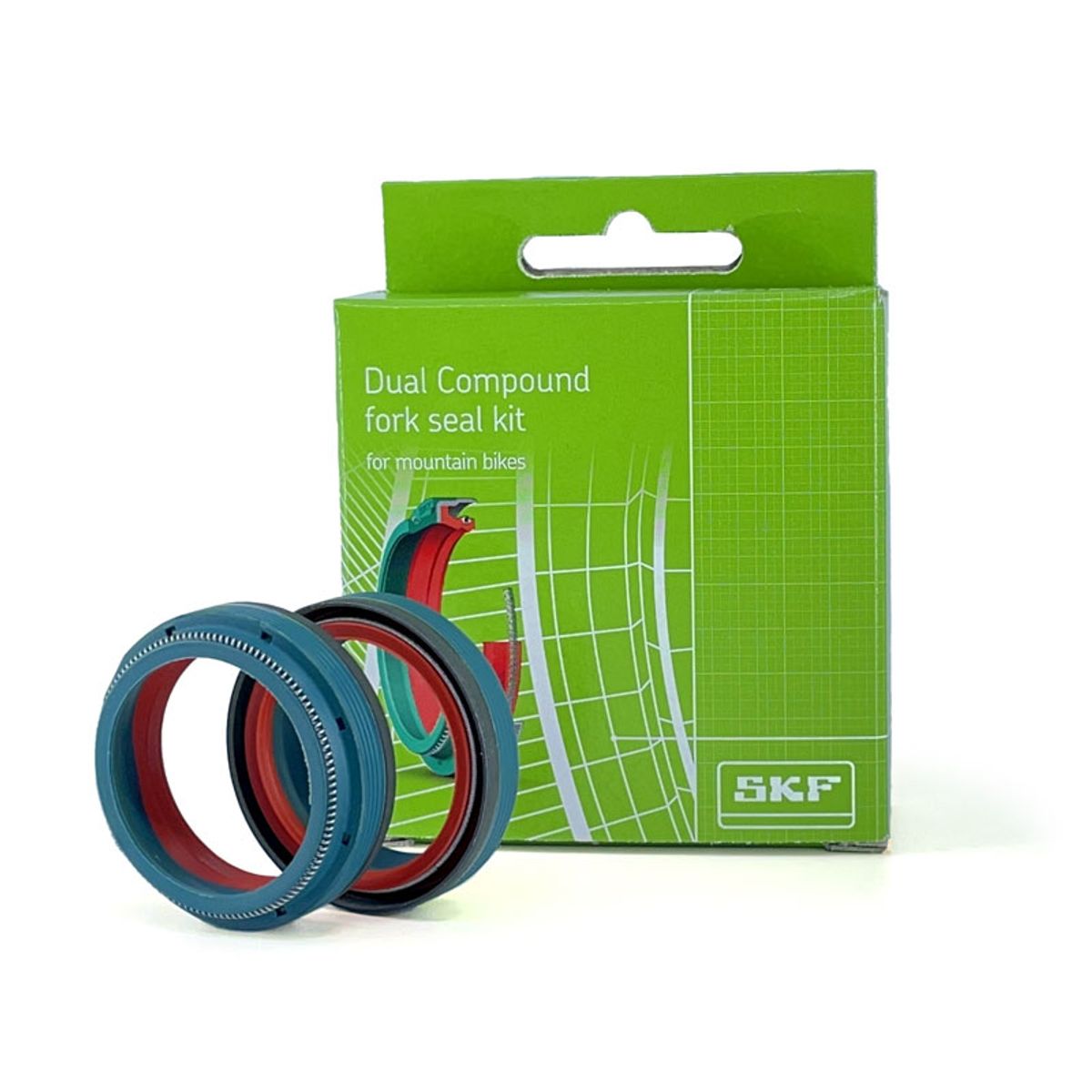

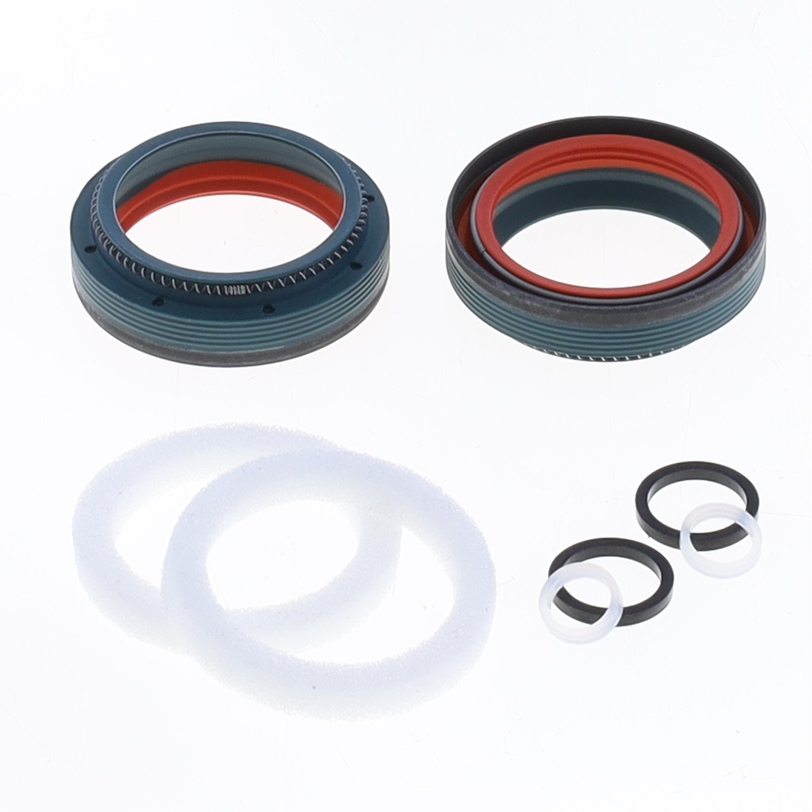

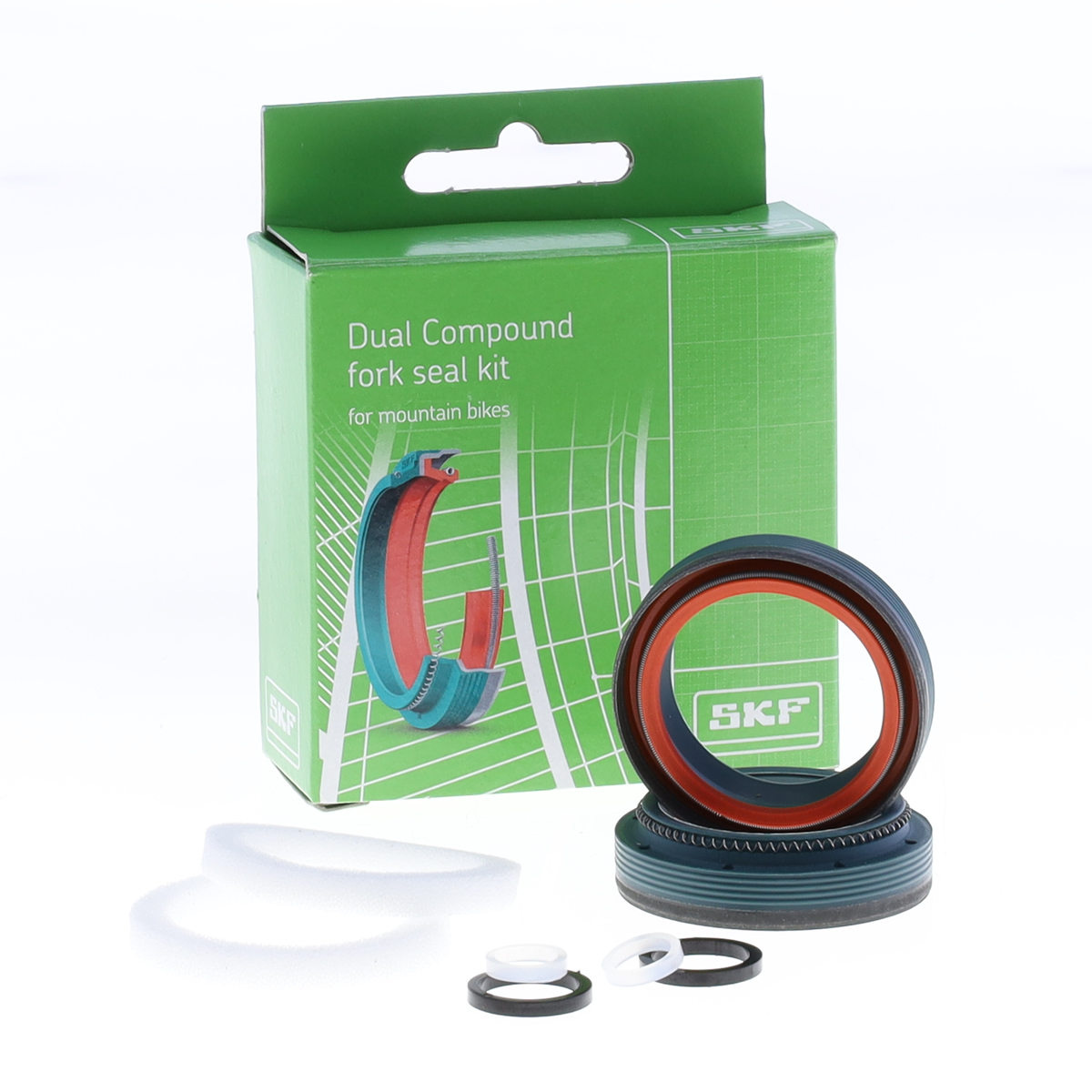

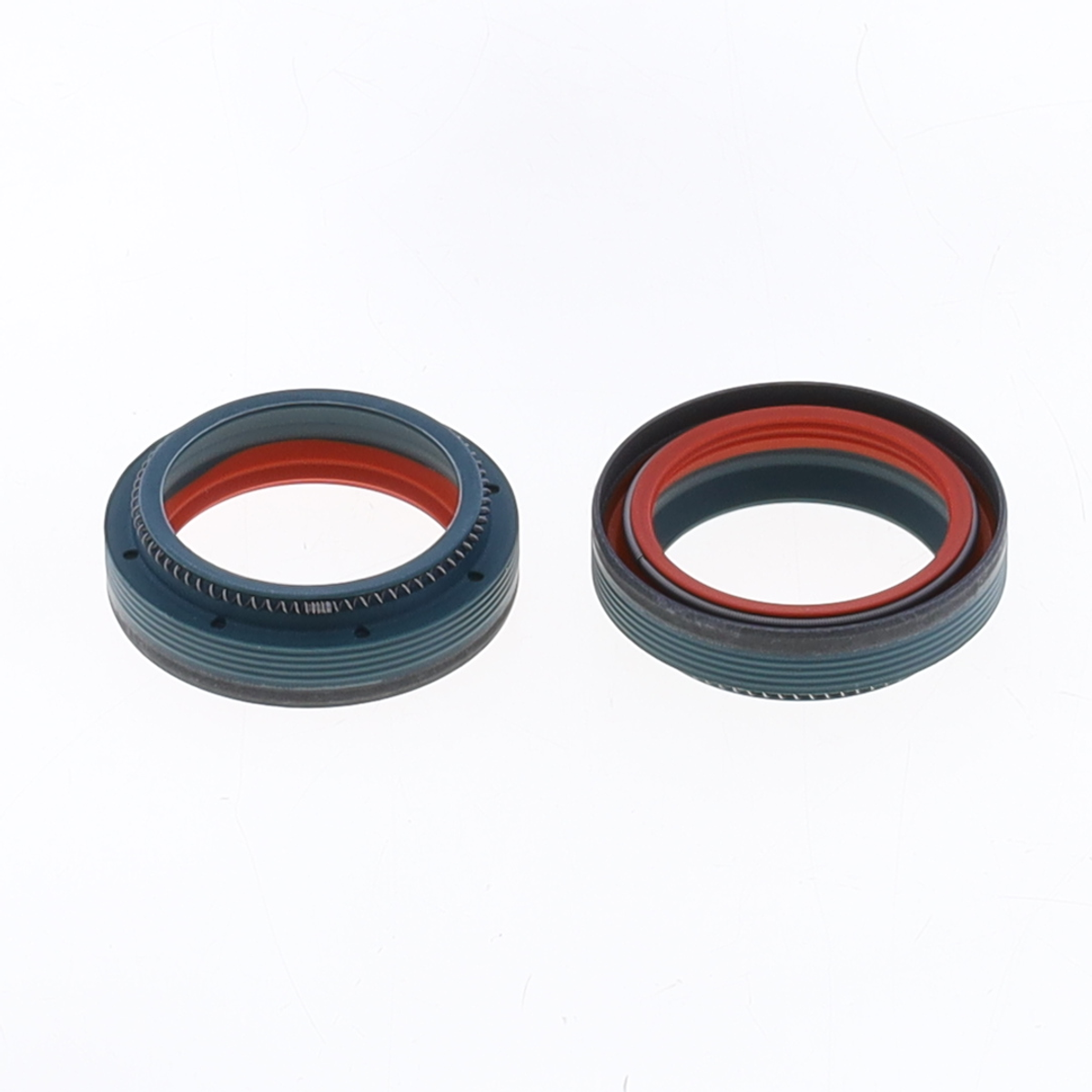

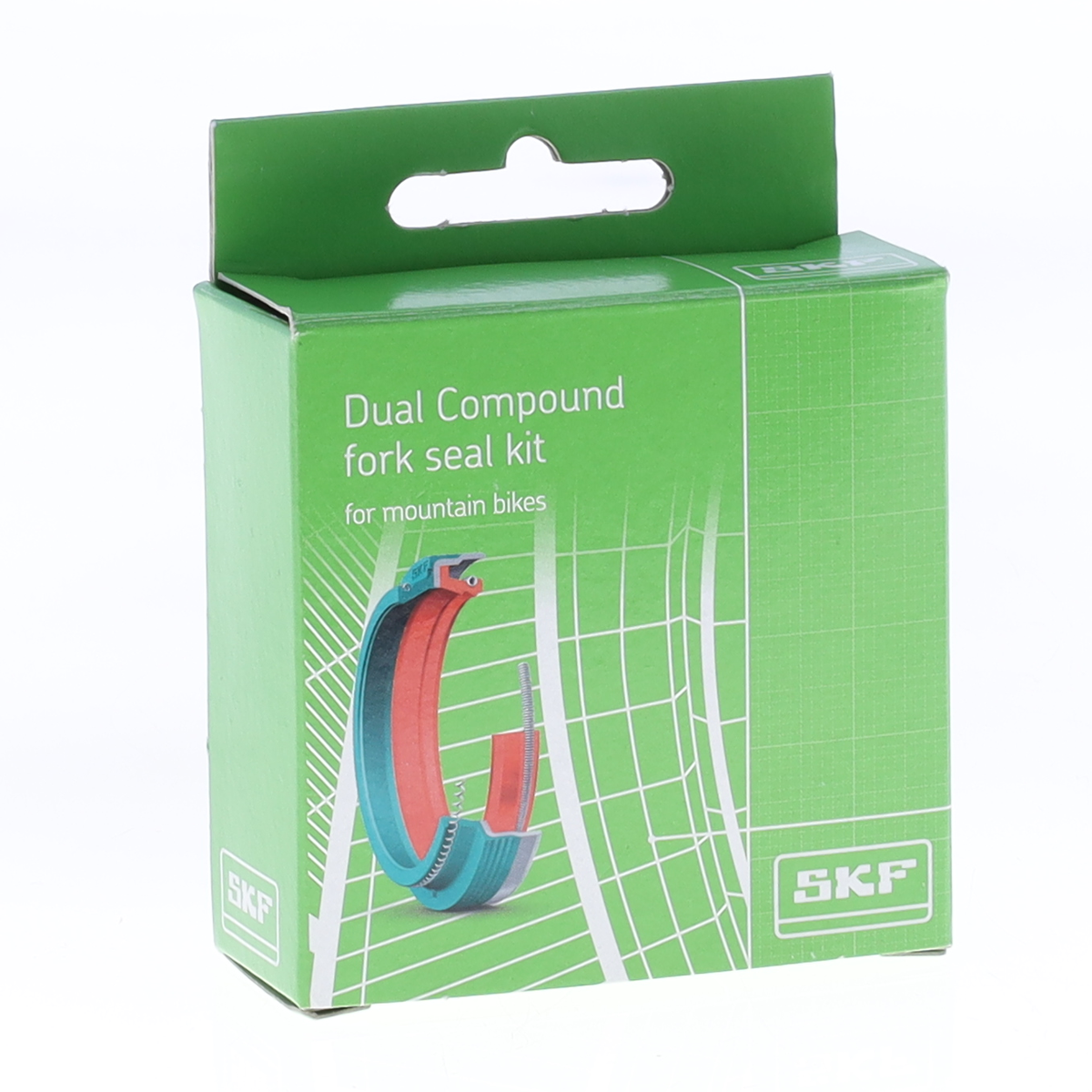

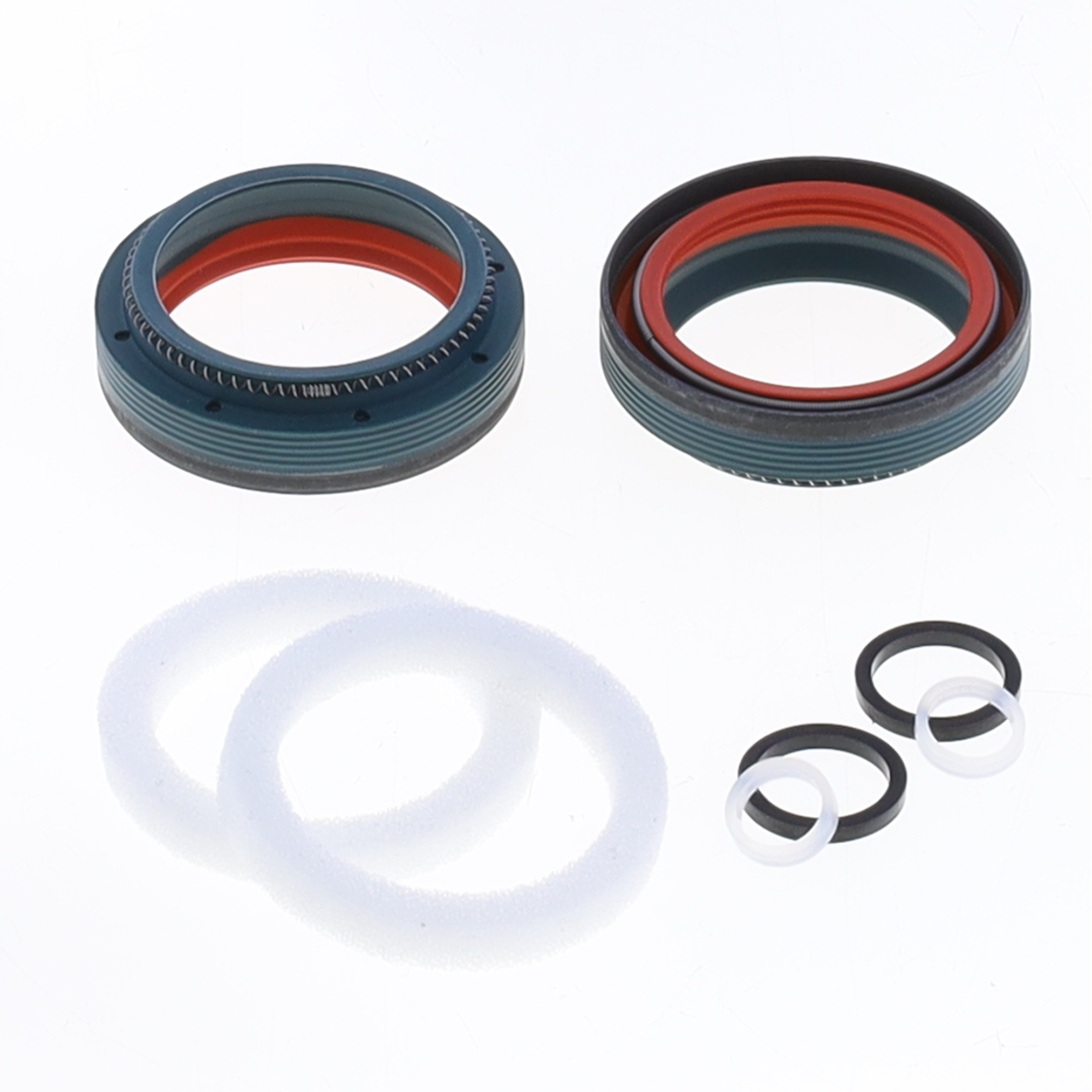

Seals Kit - Dual Compaund Fox Air 36mm All Model
Description
OIL SEAL DIMENSIONS: Ø 36 x 46 x 8 mm h
Dual compound fork seal kit for MTB
MTB fork seals are a vital protective part of the overall front suspension system, with a crucial impact on riding comfort and trouble-free operation in the harshest environments.
This completely redesigned fork seal — adding on to SKF’s well established fork seals range that has already been available on the market for more than 10 years — consists of newly developed rubber compounds and new geometries for both the scraper lip and the sealing lip.
The co-molded combination of compounds, together with improved sealing lip properties, offers enhanced followability on the shaft. In addition, there is a new metal insert and an open wound spring on the dirt scraper lip, effectively preventing the ingress of contaminants.
Benefits of the dual compound fork seals are:
- Extended sealing capability
- Improved contamination exclusion
- Reliable protection of the interior fork mechanism
- Minimum friction for enhanced vehicle control
Bullet points
Extended sealing capability
Improved contamination exclusion
Reliable protection of the interior fork mechanism
Technical features
| Fork brand | Fox |
| Fork diameter (mm) | 36.00 |
| Manufacturer | SKF |
| Net Weight (Kg) | 0.05 |
| Oil Seal External Diameter (mm) | 46.00 |
| Oil Seal Internal Diameter (mm) | 36.00 |
| Oil Seal Total Height (mm) | 8.00 |
- Manufacturer: SKF
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 8.00
- Oil Seal External Diameter (mm): 48.00
- Manufacturer: SKF
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 7.90
- Oil Seal External Diameter (mm): 48.00
- Manufacturer: SKF
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 7.90
- Oil Seal External Diameter (mm): 46.00
- Manufacturer: SKF
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 8.30
- Oil Seal External Diameter (mm): 45.00
- Manufacturer: SKF
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 8.30
- Oil Seal External Diameter (mm): 45.00
- Manufacturer: SKF
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 7.90
- Oil Seal External Diameter (mm): 44.00
- Manufacturer: SKF
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 8.00
- Oil Seal External Diameter (mm): 44.00
- Manufacturer: SKF
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 7.90
- Oil Seal External Diameter (mm): 42.00
