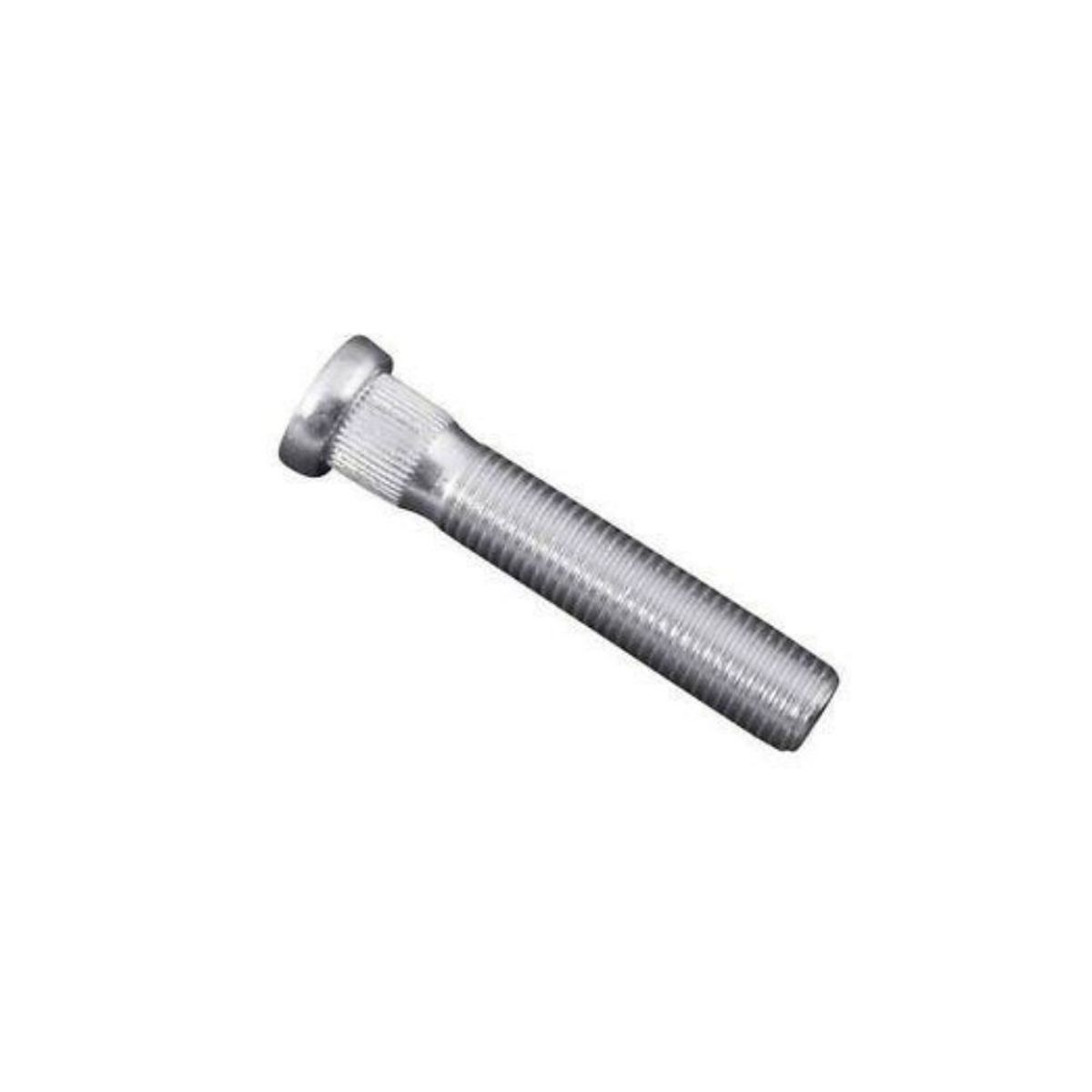

Spline Wheel Stud M14x1,50x70 Knurl 15
10.9 stainless steel class
Bolts specific for each spacer rim and thickness
Made in Italy
Description
How to choose the right bolts for my spacer?
Check that the bolts chosen are identical to those supplied with the wheel rim already mounted on the car.
For cars fitted with wheels different from the originals, or to which set-up or bodywork changes have been made, it is advisable to contact specialist centres to check feasibility of mounting.
In any case, you should remember that mounting them requires basic knowledge of automotive mechanics and must be done in a workmanlike manner in order to ensure your safety. For this reason, we recommend that you always contact specialist centres and skilled experts for proper installation.
How are the bolts tightened?
After perfectly cleaning the wheel hubs, position the spacers and insert the fixing bolts to check if the thread is right for your hub.
The spacers must rest perfectly against the surface of the brake disc or drum.
Now check the length of the bolts and then definitively tighten the spacer.
When to replace wheel bolts?
Bolts are not repairable. In case of wear or failure, they must be replaced. To do this, unscrew the screws without damaging the hub threads and mount the respective spare parts, but first clean any dirt off the contact areas.
Lubrication of bolts with grease-based oils is strictly forbidden. This could lead to self-loosening.
Periodically check the tightening force of the bolts to avoid their unscrewing. The required torque setting is given in the vehicle technical documentation.
Technical features
| Bolt type | Spline wheels studs |
| Classe acciaio | 10.9 |
| Finishing | White zinc-plating |
| Knurl diameter | 15.00 |
| Net Weight (Kg) | 0.08 |
| Thread lenght | 54.00 |
| Thread Pitch | M14X1,50 |
| Total lenght | 70.00 |
