GUARNITAUTO

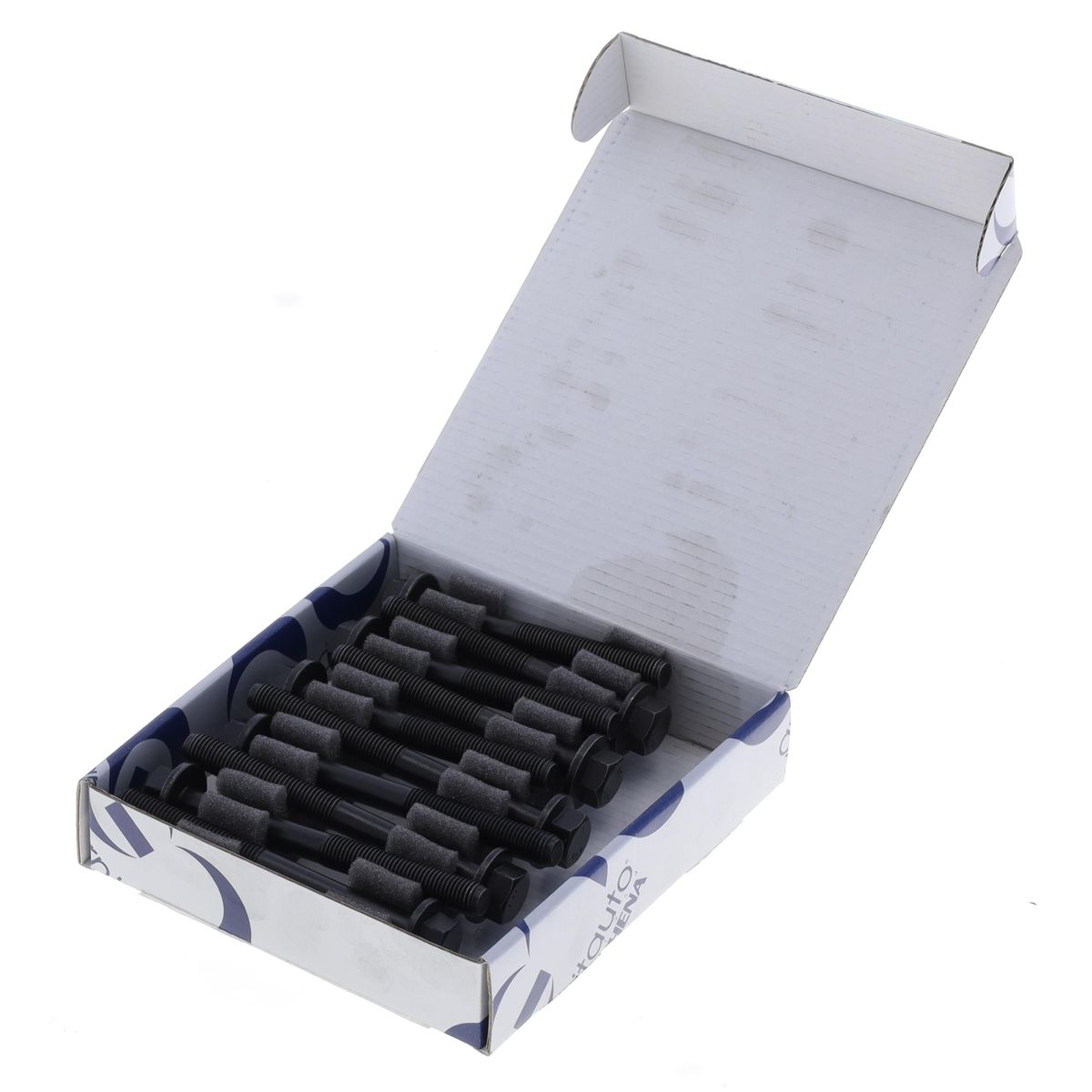

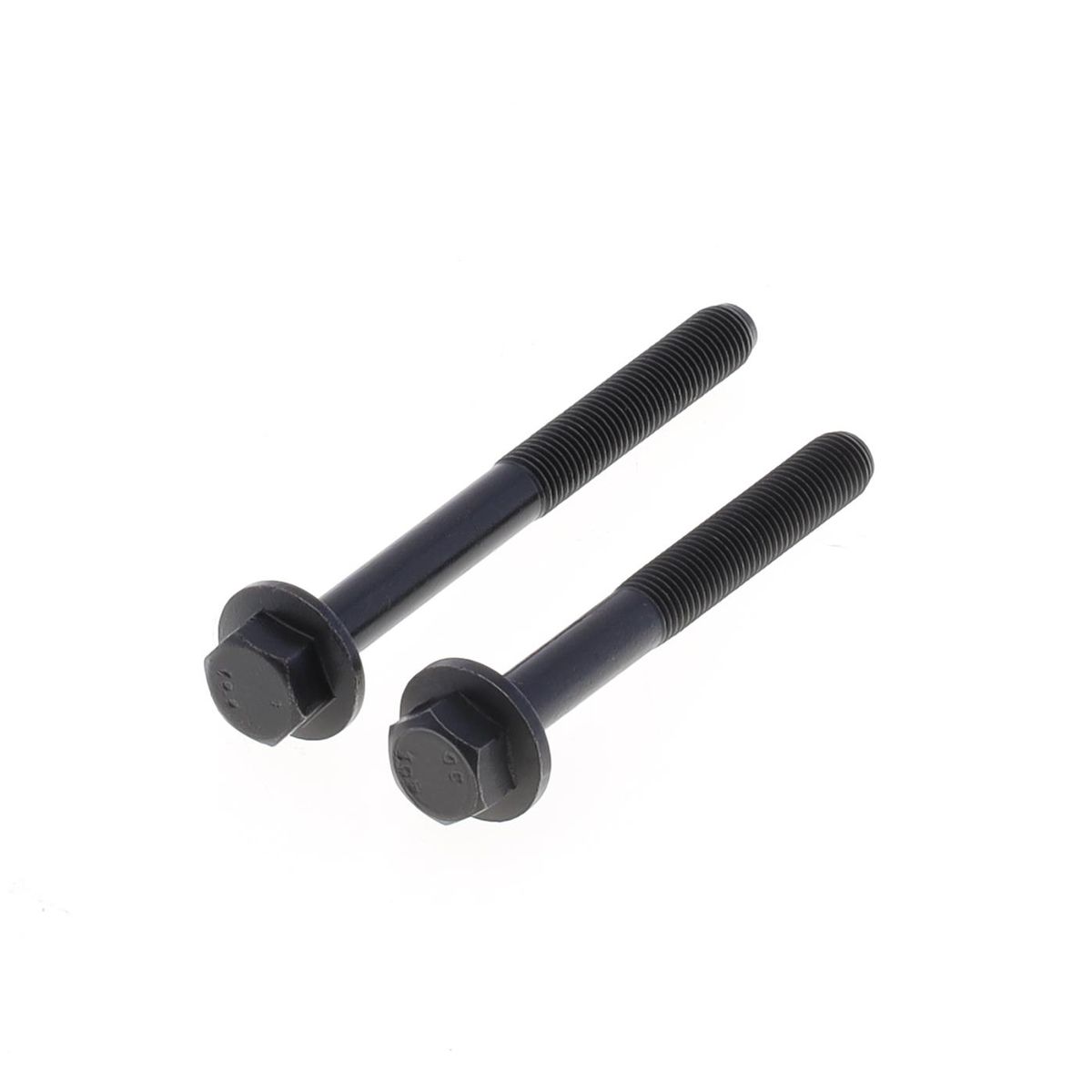

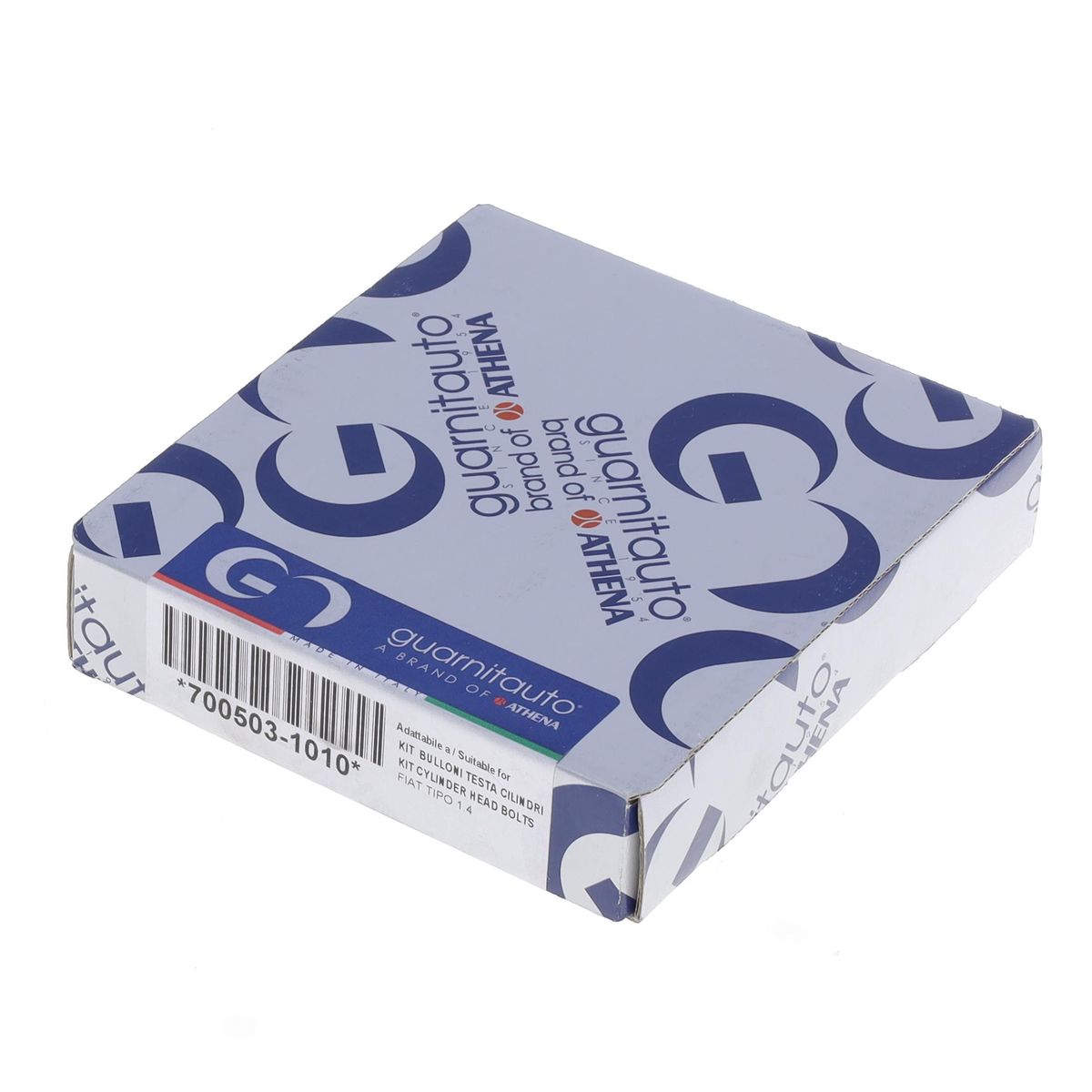

Head Bolt Kit
Code: 700503-1010
$ 30.99
20+ pieces
Quantity
Bullet points
Premium Quality
Perfect Spare Part for the Original
Unbeatable Price Quality Ratio
Description
Guarnitauto uses superior quality materials, strictly no asbestos, studied with different technologies to obtain maximum sealing in all conditions. Some special cylinder head gaskets have silicone profiles that improve the sealing surface. Guarnitauto’s product range includes more than 1500 kind of sets and a wide choice of loose gaskets: Engine rebuild full set, Head set, Conversion set, Gear box kit, Special gasket sets for marine, agricultural and industrial vehicles.
Technical features
| Net Weight (Kg) | 0.70 |
| Pieces bolt 1 per set | 5 |
| Pieces bolt 2 per set | 5 |
| Screw Pitch bolt 1 | M10X1,25 |
| Screw Pitch bolt 2 | M10X1,25 |
| Thread Length bolt 1(mm) | 84.00 |
| Thread Length bolt 2 (mm) | 99.00 |
OEM Codes
| Partner | OEM code |
|---|---|
| FIAT | 46430687 (5x) |
| FIAT | 46430688 (5x) |
Vehicle compatibility
| CITROËN 1580 SPI 58kw, 79cv |
| CITROËN 220 A2.000 59kw, 80cv |
| CITROËN JUMPY I (U6U_) | DISPATCH 1.6, 58kw, 79cv, 10/1995 - 08/2000 |
| CITROËN JUMPY I Van (BS_, BT_, BY_, BZ_) | DISPATCH 1.6 i, 58kw, 79cv, 10/1995 - 08/2000 |
| FIAT 146 A8.000 74kw, 101cv |
| FIAT 146 A8.046 82kw, 112cv |
| FIAT 146 C5.000 46kw, 63cv |
| FIAT 146 D5.000 46kw, 63cv |
| FIAT 159 A2.000 51kw, 69cv, 02/1990 - 04/1993 |
| FIAT 160 A1.000 52kw, 71cv |
| FIAT 160 A1.046 46kw, 67cv |
| FIAT 160 A1.048 50kw, 69cv |
| FIAT 176 A9.000 65kw, 88cv |
| FIAT 176 B6.000 96kw, 131cv, 08/1996 |
| FIAT 178 B2.000 51kw, 69cv |
| FIAT 178 B2.016 51kw, 69cv |
| FIAT 182 A4.000 76kw, 103cv |
| FIAT 182 A6.000 66kw, 90cv |
| FIAT 186 A3.000 70kw, 95cv, 04/1999 |
| FIAT 220 A 2.000 58kw, 79cv |
| FIAT 836 A4.000 51kw, 69cv |
| FIAT BRAVA (182_) 1.6 16V (182.BB), 76kw, 103cv, 02/1996 - 10/2001 |
| FIAT BRAVA (182_) 1.6 16V (182.BH), 66kw, 90cv, 10/1995 - 10/2001 |
| FIAT BRAVO I (182_) 1.6 16V (182.AB), 76kw, 103cv, 03/1996 - 10/2001 |
| FIAT BRAVO I (182_) 1.6 16V (182.AH), 66kw, 90cv, 10/1995 - 10/2001 |
| FIAT FIORINO MPV Van (146_) 70 i.e. 1.4, 49kw, 67cv, 05/1994 - 05/2001 |
| FIAT FIORINO Pick up (146_) 1.4, 49kw, 67cv, 05/1994 - 05/2001 |
| FIAT MAREA (185_) 1.6 100 16V, 76kw, 103cv, 09/1996 - 05/2002 |
| FIAT MAREA Weekend (185_) 1.6 100 16V, 76kw, 103cv, 09/1996 - 05/2002 |
| FIAT MULTIPLA (186_) 1.6 100 16V (186AXA1A), 76kw, 103cv, 04/1999 - 06/2010 |
| FIAT MULTIPLA (186_) 1.6 16V Blupower (186AMA1A), 70kw, 95cv, 04/1999 - 06/2010 |
| FIAT PUNTO (176_) 1.4 GT Turbo (176AS_), 96kw, 131cv, 09/1996 - 07/1999 |
| FIAT PUNTO (176_) 1.6, 65kw, 88cv, 01/1994 - 04/1997 |
| FIAT PUNTO Convertible (176_) 90 1.6, 65kw, 88cv, 04/1994 - 04/1997 |
| FIAT SCUDO Bus (220_) 1.6, 58kw, 79cv, 02/1996 - 12/2006 |
| FIAT SCUDO Van (220_) 1.6, 58kw, 79cv, 02/1996 - 12/2006 |
| FIAT SIENA (178_, 172_, 372_) | ALBEA 1.4, 51kw, 69cv, 04/1996 - 12/2009 |
| FIAT SIENA (178_, 172_, 372_) | ALBEA 1.4 Cat, 51kw, 69cv, 04/1996 - 12/2009 |
| FIAT TEMPRA (159_) 1.4 i.e. (159.AA), 57kw, 78cv, 03/1991 - 08/1996 |
| FIAT TEMPRA (159_) 1.4 i.e. (159.AC, 159.AX), 51kw, 69cv, 04/1990 - 08/1996 |
| FIAT TEMPRA S.W. (159_) 1.4 i.e. (159.AC, 159.AX), 51kw, 69cv, 10/1992 - 08/1996 |
| FIAT TEMPRA S.W. (159_) 1.4 i.e. (159.AC), 57kw, 78cv, 03/1991 - 08/1996 |
| FIAT TIPO (160_) 1.4 (160.AC), 52kw, 71cv, 07/1987 - 12/1989 |
| FIAT TIPO (160_) 1.4 i.e. (160.AP, 160.AD, 160.EA), 51kw, 70cv, 05/1989 - 04/1995 |
| FIAT TIPO (160_) 1.4 i.e., 57kw, 78cv, 05/1989 - 04/1995 |
| FIAT UNO (146_, 158_) 1.4 Turbo i.e., 82kw, 112cv, 09/1989 - 09/1993 |
| FIAT UNO (146_, 158_) 1.4 Turbo i.e., 87kw, 118cv, 12/1989 - 12/1996 |
| FIAT UNO (146_, 158_) 70 i.e. 1.4, 51kw, 70cv, 09/1989 - 07/1996 |
| FIAT UNO (146_, 158_) 70 S 1.4, 52kw, 71cv, 10/1988 - 06/2006 |
| INNOCENTI 146 A5.000 49kw, 67cv |
| INNOCENTI 146 A6.000 40kw, 54cv |
| INNOCENTI 146 C5.000 49kw, 67cv |
| INNOCENTI 146 C6.000 55kw, 75cv |
| INNOCENTI 146 D5.000 49kw, 67cv |
| INNOCENTI 146 D6.000 55kw, 75cv |
| INNOCENTI 149 C1.000 55kw, 75cv |
| INNOCENTI ELBA 1.3 (146CW), 49kw, 67cv, 08/1991 - 12/1996 |
| INNOCENTI ELBA 1.4 i.e. (146EN, 146EQ), 49kw, 67cv, 09/1994 - 12/1996 |
| INNOCENTI ELBA 1.5 i.e. (146C9), 55kw, 75cv, 08/1992 - 09/1994 |
| INNOCENTI ELBA 1.6 i.e. (146EO, 146ER), 55kw, 75cv, 09/1994 - 12/1996 |
| INNOCENTI KORAL 55, 40kw, 55cv, 01/1990 - 12/1992 |
| LANCIA 138 C2.048 55kw, 75cv |
| LANCIA 159 B9.000 66kw, 90cv |
| LANCIA 160 A1.046 51kw, 69cv |
| LANCIA 182 B6.000 76kw, 103cv |
| LANCIA 831 A1.000 63kw, 86cv |
| LANCIA 831 A2.000 55kw, 75cv |
| LANCIA 831 B.000 55kw, 75cv |
| LANCIA 831 B1.000 59kw, 80cv |
| LANCIA 831 B1.048 55kw, 75cv |
| LANCIA 835 A1.000 65kw, 88cv |
| LANCIA 835 A1.046 57kw, 77cv |
| LANCIA 835 C1.000 55kw, 75cv |
| LANCIA 836 A4.000 51kw, 69cv |
| LANCIA DEDRA (835_) 1.6 i.e. (835AA), 66kw, 90cv, 08/1989 - 06/1994 |
| LANCIA DEDRA (835_) 1.6 i.e. (835AB), 57kw, 78cv, 08/1989 - 03/1993 |
| LANCIA DEDRA (835_) 1.6 i.e. (835AN), 55kw, 75cv, 04/1993 - 07/1999 |
| LANCIA DEDRA (835_) 1.6 LE Cat (835EB), 66kw, 90cv, 07/1994 - 07/1999 |
| LANCIA DEDRA SW (835_) 1.6 (835EB), 66kw, 90cv, 10/1994 - 07/1999 |
| LANCIA DELTA I (831_) 1.3 (831AB.011), 55kw, 75cv, 09/1979 - 08/1992 |
| LANCIA DELTA I (831_) 1.5 (831AB.025), 63kw, 86cv, 09/1979 - 12/1992 |
| LANCIA DELTA II (836_) 1.4 i.e. (836AF, 836AH), 51kw, 69cv, 10/1994 - 08/1999 |
| LANCIA DELTA II (836_) 1.6 i.e. (836AD), 55kw, 75cv, 06/1993 - 08/1999 |
| LANCIA LYBRA (839_) 1.6, 76kw, 103cv, 10/2000 - 10/2005 |
| LANCIA LYBRA SW (839_) 1.6 (839.BXF1A), 76kw, 103cv, 10/2000 - 10/2005 |
| LANCIA PRISMA (831_) 1.5 (831AB), 55kw, 75cv, 09/1985 - 02/1992 |
| LANCIA PRISMA (831_) 1.5 (831AB), 63kw, 86cv, 01/1983 - 04/1986 |
| PEUGEOT 222A2 (1580 SPI) 58kw, 79cv |
| PEUGEOT EXPERT (224_) 1.6, 58kw, 79cv, 02/1996 - 09/2000 |
| PEUGEOT EXPERT Platform/Chassis (223) 1.6, 58kw, 79cv, 02/1996 - 09/2000 |
| PEUGEOT EXPERT Van (222) 1.6, 58kw, 79cv, 02/1996 - 09/2000 |
| SAAB 600 1.3, 55kw, 75cv, 01/1980 - 12/1986 |
| SAAB 831 A2.000 55kw, 75cv |
Show all compatible models
