Crankshaft, Pin Ø 10 mm
Perfectly match the original
High resistance to stresses
Same or higher reliability compared to the original
Description
Athena’s crankshaft are made of premium materials combined with the latest production technology. Designed for top-performance engines, they ensure maximum performance with high-powered engines in situation of greater stress. These products are also suitable for tuned-up engines and ensure maximum performance that lasts over time. Athena offers the following range of crankshafts:
a) Original: perfect replacement for the original crankshaft, but with improved balance and a lighter connecting rod. Each kit includes a special bearing cage.
b) Racing: available with hole for wrist pin of small end casing measuring Ø10mm or Ø12mm. Available with a lighter crankshaft and special bearing cages. Differs from the Original Kit for its solid crank shaft handles, made entirely by milling to reduce the volume of the crank handle case.
c) Long Stroke Racing: same as the Ø12mm Racing crankshaft, but with longer stroke. This kit can be combined with Athena Long Stroke Racing cylinder kit, to increase cylinder capacity to 80cm3.

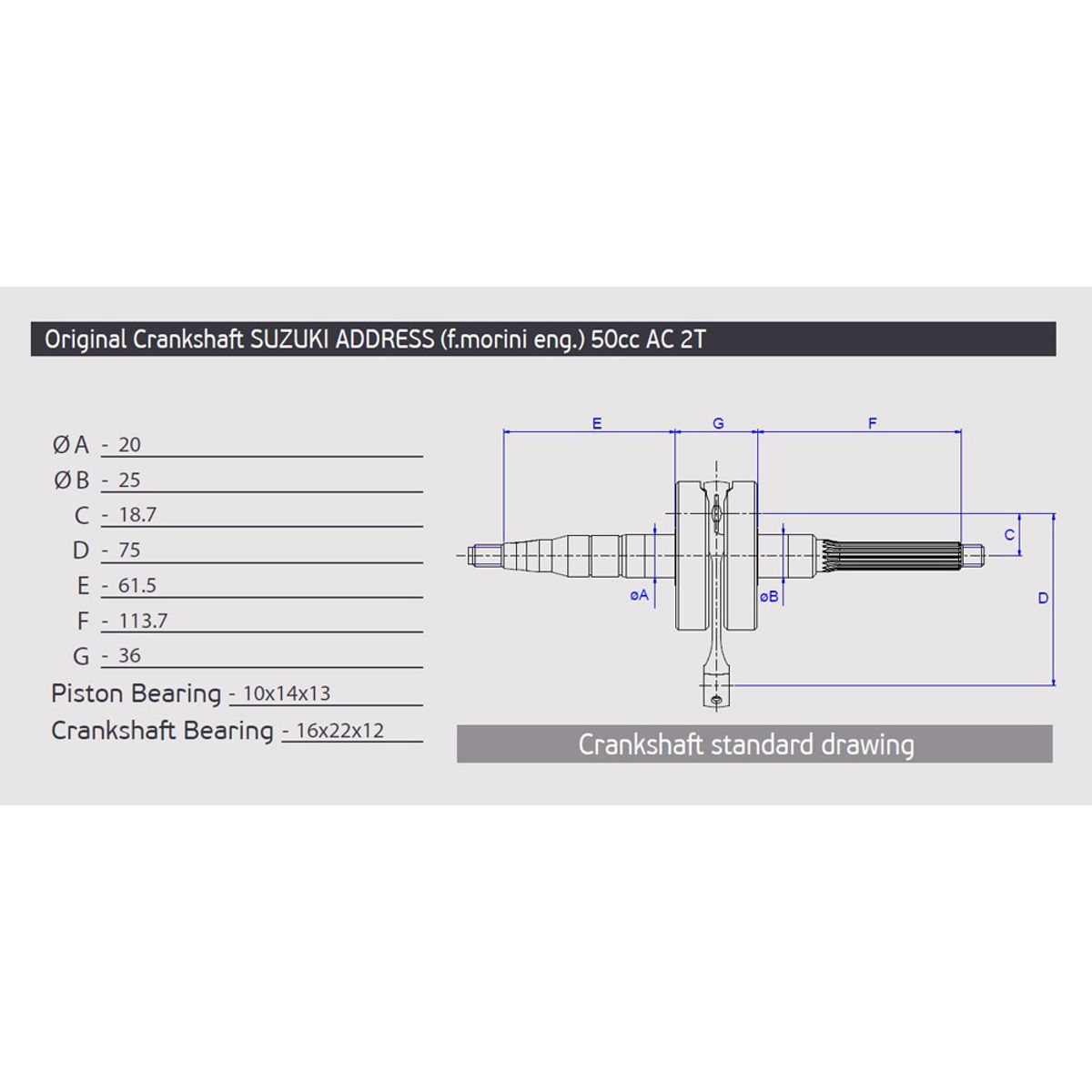

Technical features
| Big End Bearing (mm) | 16x22x12 |
| Crank Radius (mm) | 18.70 |
| Net Weight (Kg) | 1.01 |
| Pivot Fly Wheel Diameter (mm) | 20.00 |
| Pivot Fly Wheel Length (mm) | 61.50 |
| Pivot Pulley Diameter (mm) | 25.00 |
| Pivot Pulley Length (mm) | 113.70 |
| Shoulder Width (mm) | 36.00 |
| Small End Bearing (mm) | 10x14x13 |
| Stroke (mm) | 37.40 |
Vehicle compatibility
| ATALA HACKER 50 cc |
| ATALA HACKER LC 50 cc |
| DERBI VAMOS 50 cc 1993/1995 |
| ITALJET FORMULA 50 cc 1994/2000 |
| ITALJET FORMULA LC 50 cc 1994/2000 |
| ITALJET TORPEDO 50 cc 1997/1999 |
| ITALJET VELOCIFERO 50 cc 1993/1999 |
| MALAGUTI CROSSER CR1 50 cc 1995/1998 |
| RIZZATO VAMOS 50 cc |
| SUZUKI AH ADDRESS 50 cc 1992/1995 |
| SUZUKI AJ ZZ SEPIA S 50 cc 1995/1997 |
| SUZUKI AP 50 cc 1994/1997 |
| SUZUKI FZ N SUZZY 50 cc |
