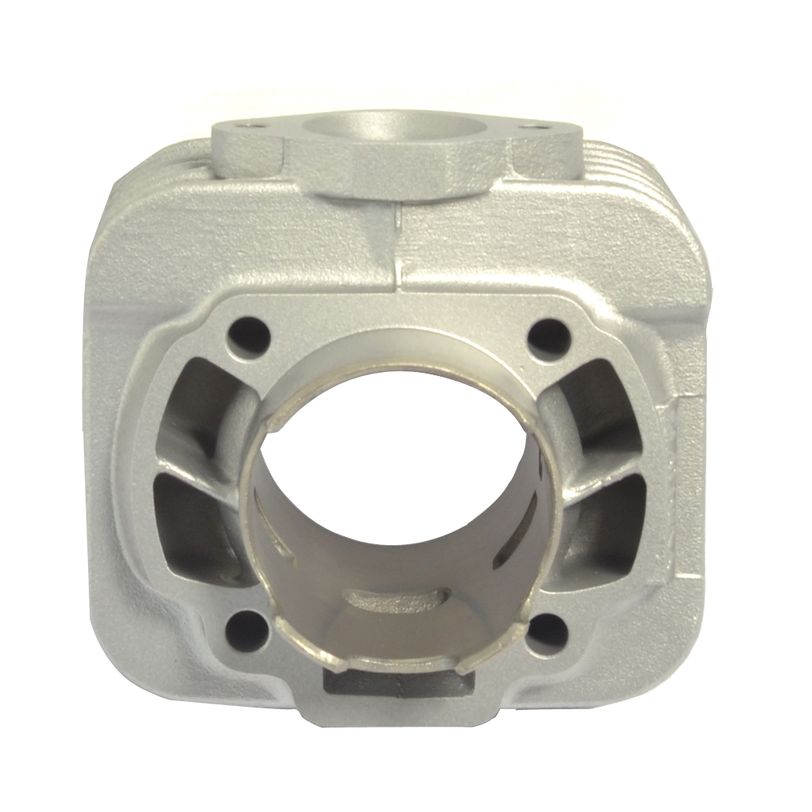

Big Bore Cylinder Kit With Head Ø 47,6 mm, 70 cc, Pin Ø 12 mm, Domed Head Piston
WARNING: the cylinder head and base gaskets contained in the kit are specifically developed for Athena cylinders kits. Whenever the cylinder kit is disassembled, replace the gaskets with the specific Athena spare gasket kit: DO NOT use OE replacement gaskets.
Race Use Only Product – Not intended for street use – Please check details on the “Race use only” footer’s section
Description
Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years, to improve their production and performance. All the cylinders are entirely engineered in Italy by Athena’s R&D Department which has a strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.
Athena’s cylinder kits and its components are recognized worldwide for their performance, durability and reliability.
Athena’s Big Bore Cylinder Kits guarantees an increase in performance that can be observed along the power curve, keeping the reliability at the same level of the original components.

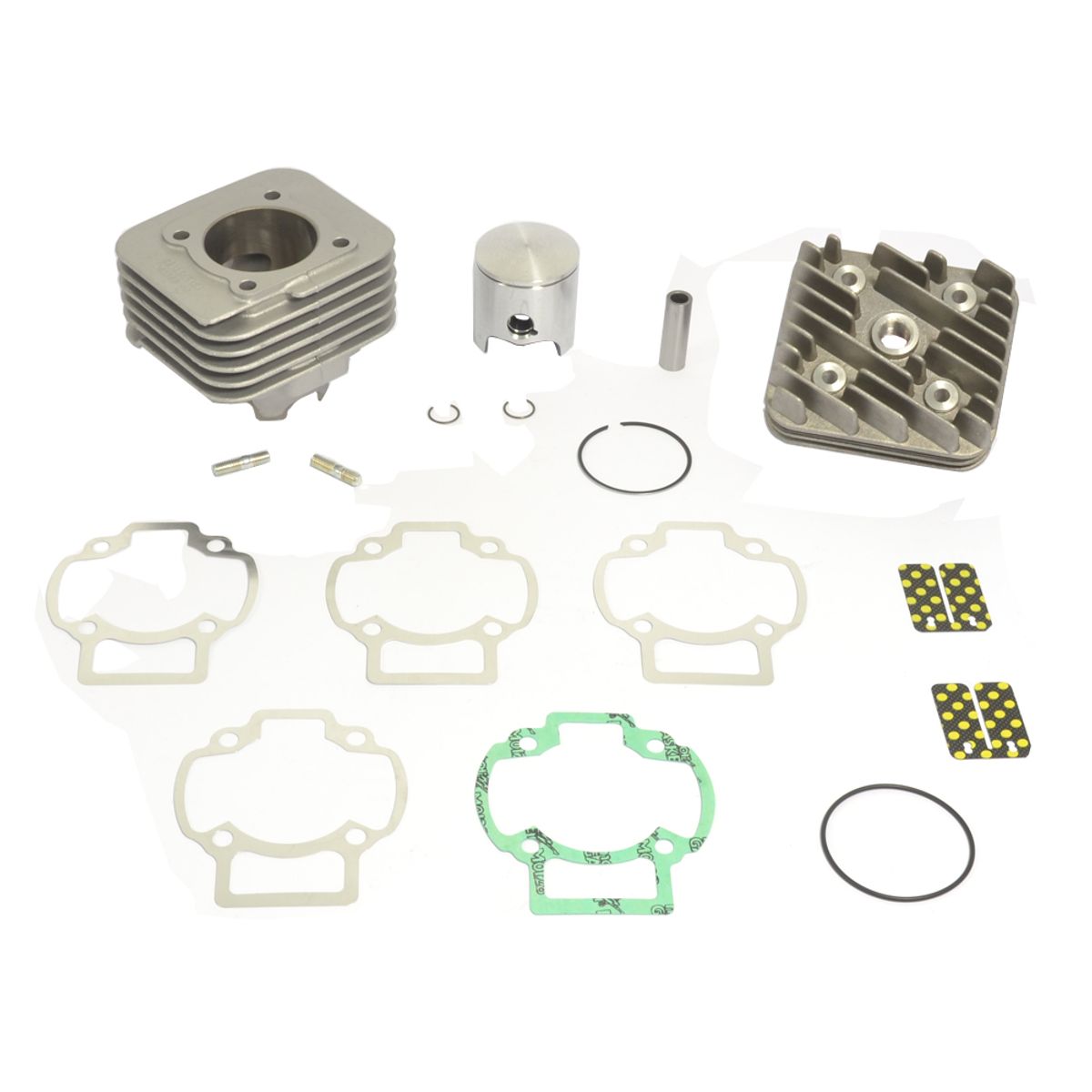

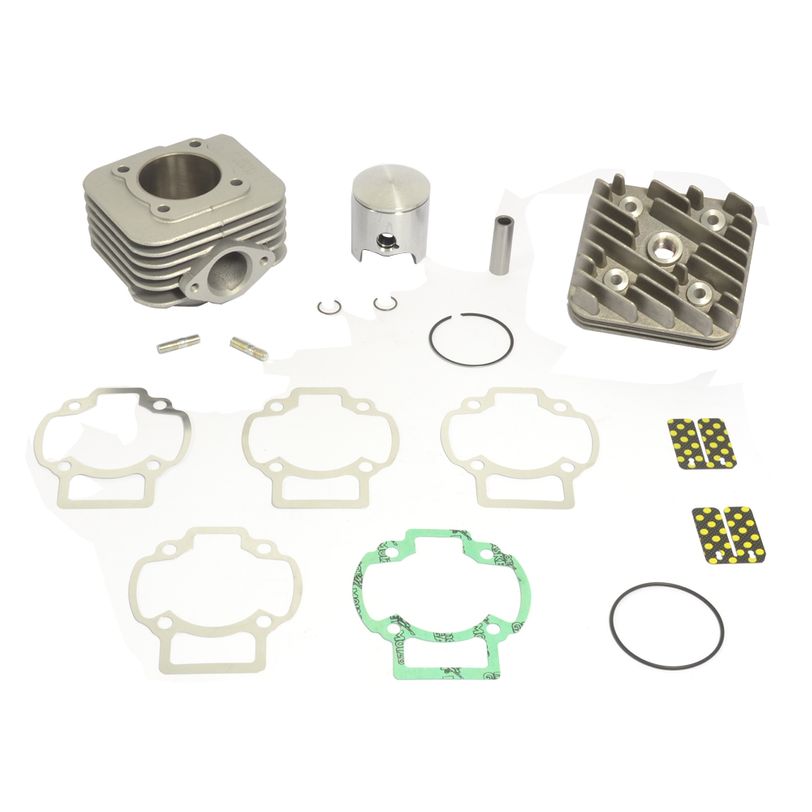

The kit includes the high-quality aluminum cylinder with increased bore, the cylinder head, the complete piston with the piston pin and rings, and all the necessary gaskets.
All the components of the kit have been developed to withstand the highest temperatures, pressures and stresses and have been validated by Athena technicians with severe bench and road tests.
This cylinder kit can be installed without making any changes to the engine crankcase.
CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.
Bullet points
Sensitive increase in performance without compromising engine reliability
Maximum durability and smoothness guaranteed by a special nickel and silicon treatment of the barrel
Cylinder made of a special light aluminum alloy
Technical features
| Bore Diameter (mm) | 47.60 |
| Displacement (cc) | 70.00 |
| Net Weight (Kg) | 1.31 |
Downloads
| Mounting instructions Cylinder kit Scooter Piaggio 70 Cc_ITA_ENG_DEU_ESP | Download |
- Net Weight (Kg): 0.05
- Compression Height (mm): 24.50
- Big End Pin Diameter (mm): 12x8x37
- Number Of Segments: 1
- Piston Type: Cast
- Net Weight (Kg): 0.00
- Compression Height (mm): 24.50
- Big End Pin Diameter (mm): 12x8x37
- Number Of Segments: 1
- Piston Type: Cast
- Compression Height (mm): 24.50
- Big End Pin Diameter (mm): 12x8x37
- Number Of Segments: 1
- Piston Type: Cast
- Net Weight (Kg): 0.01
- Net Weight (Kg): 0.39
- Manufacturer: ATHENA
- Net Weight (Kg): 0.06
- Oil Seal Total Height (mm): 11.00
- Oil Seal External Diameter (mm): 54.00
- Net Weight (Kg): 0.40
- Manufacturer: SKF
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 9.00
- Dust Seal Total Height (mm): 4.90
- Manufacturer: ATHENA
- Net Weight (Kg): 0.06
- Oil Seal Total Height (mm): 10.50
- Oil Seal External Diameter (mm): 53.00
- Manufacturer: ATHENA
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 10.50
- Oil Seal External Diameter (mm): 52.00
- Manufacturer: ATHENA
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 9.50
- Oil Seal External Diameter (mm): 53.00
- Manufacturer: ATHENA
- Net Weight (Kg): 0.06
- Oil Seal Total Height (mm): 11.00
- Oil Seal External Diameter (mm): 50.00
