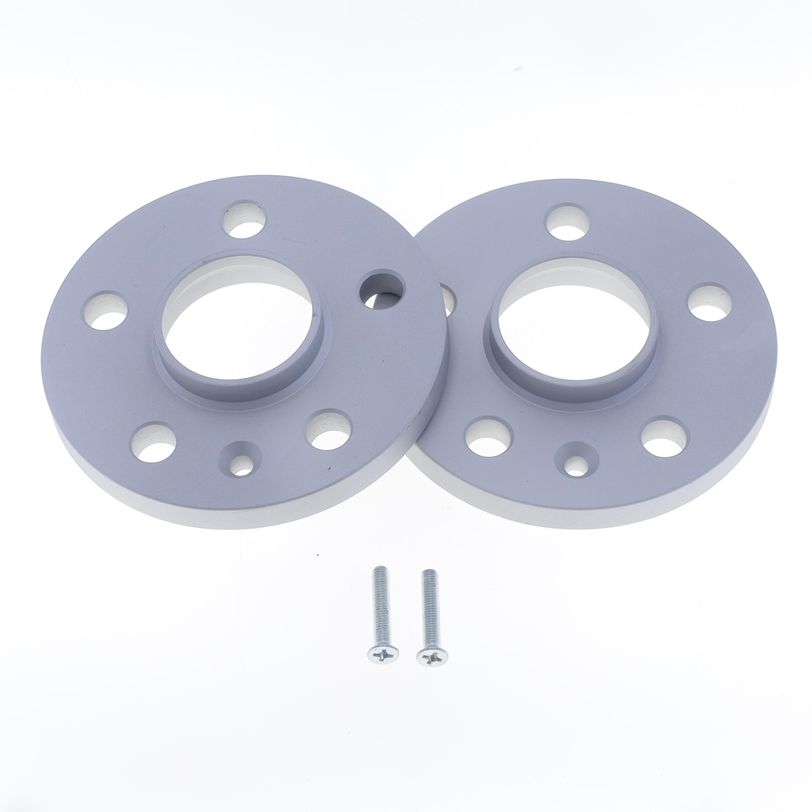

Wheel Spacers without Bolts 5x100x57 th. 12 mm
Race Use Only Product – Not intended for street use – Please check details on the “Race use only” footer’s section
Description
What is a spacer and where should it be placed? What are spacers used for?
Spacers are an accessory mounted between wheel and hub to increase track width, that is, the distance between the wheels, and give the vehicle a stylish, aggressive appearance. Athena S.p.A. offers a wide range of wheel spacers made of top-quality extruded aluminium bar, machined using innovative technologies and the best CNC machine tools for maximum precision, always. This production process, which does not involve melting points, gives Athena spacers unbeatable resistance to wear and, once mounted, eliminates all vibration problems.
Why buy an Athena spacer? What are the advantages of spacers?
Spacers are made using the best quality of aluminium and the kits contain, if applicable, Italian-made 10.9 class bolts. Athena spacers are specifically tailored to each vehicle and the bolted versions include the proper bolts for each application, making life easier for the end user (no worries about choosing the wrong type of bolts).
Athena has all the technical know-how and equipment for making any customised spacer on site.
Are wheel spacers legal?
Mounting spacers alters the homologated technical characteristics of the car. Before mounting, therefore, you must check whether this modification is allowed by your country's highway code. Otherwise, you can only use them in closed areas or on a track.
Athena spacers, made entirely with the best aluminium alloys, are for sporting use only. Athena S.p.A. cannot be held responsible for any damage deriving from incorrect use or incorrect assembly of the spacer. Mounting these products could void the vehicle manufacturer's warranty.
How to fit the spacers correctly?
Mounting them requires basic knowledge of automotive mechanics and must be done in a workmanlike manner in order to ensure your safety. For this reason, we recommend that you always have them properly mounted by specialist centres and skilled experts.
1) Clean the wheel hubs PERFECTLY using a wire brush. Support surfaces and all parts in contact with the spacers must not show any traces of oxidation (the steel must be bare);
2) Clean in the same way the inside of the wheel rim on the part that will come into contact with the spacer;
If the wheel bearing grease cap occupies space, it must be removed and reassembled in the centre of the spacer after this has been mounted;
3) After having perfectly cleaned the wheel hubs, position the spacers to check their application (wheelbase, hub diameter and bolt thread);
The spacers must rest perfectly against the surface of the brake disc or drum, in full contact.
The spacers must be positioned parallel to the hub. Positioning the spacer at an angle could block it and cause it to break;
4) Check the length of the bolts and then definitively tighten the spacer.
5) Mount the spacer on the wheel hub by mounting the rim and tightening the nuts or bolts supplied crosswise, using a torque wrench.
6) You must follow the instructions of the vehicle manufacturer or aftermarket producer of the rims to define the tightening torques of the bolts.
7) After tightening, with the vehicle still on the ramp, turn the wheel by hand to make sure it rotates freely without any impediment.
8) Bring the vehicle back down to the ground and tighten the wheels to the torque specified by the manufacturer (using a torque wrench)
9) Check once again that the tyres do not come into contact with any mechanical or bodywork element by steering left and right and shifting the car a few meters.
10) Check the tightness of the spacers and wheels after running in for about 100km.
What to always check to avoid risks?
• Always check the correct tyre pressure
• Check that the fastening bolts are tightened according to the table provided by the manufacturer.
• Check that the tyres do not rub against the bodywork
• Check tyre wear from time to time to make sure toe and camber are correct.
• Check the state of nuts and bolts once or twice a year and always at each tyre change, replacing them if necessary
• If involved in an accident, replace the wheel spacers immediately
• Strictly follow the vehicle manufacturer's recommendations should repairs be needed

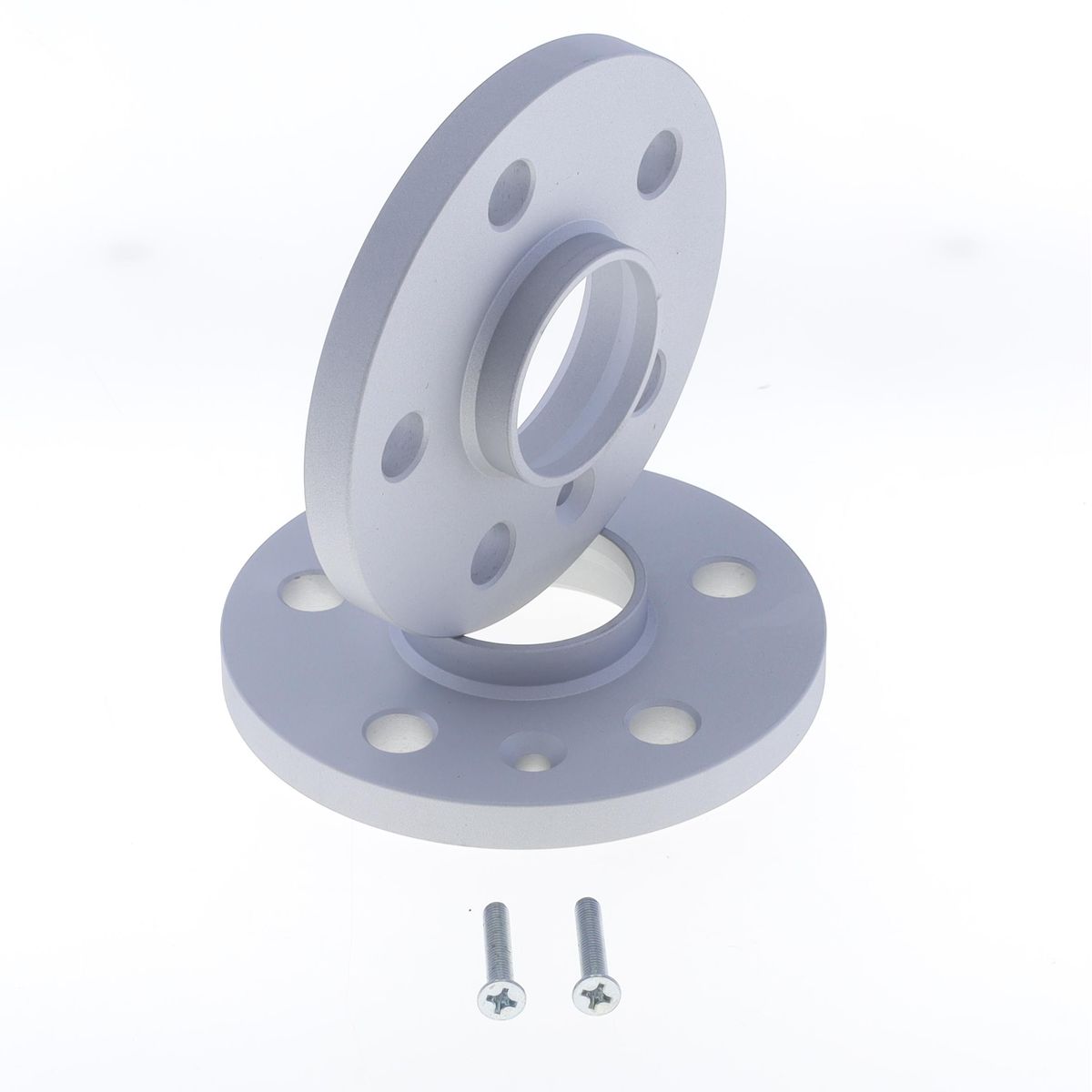

These Athena spacers have a thickness of 12 mm, a wheelbase of 100 mm and a hub diameter of 57 mm. They also have 5 holes.
Bullet points
Made from a bar of top quality aluminium
Perfect clearance to enhance driving feeling
Better responsiveness and optimal handling when cornering
Technical features
| Finishing | Anodized |
| Fitted Into Rims | OEM |
| Hub C to C | 5X100 |
| Hub diameter | 57.00 |
| Net Weight (Kg) | 1.05 |
| Thickness (mm) | 12.00 |
| Type | Spacers without bolts |
| Vehicle spacer | SEAT Cordoba III Type 6L 10/2002 - 11/2009 - rear SEAT Ibiza IV Type 6L 01/2002 - 04/2008 - front SEAT Ibiza IV Type 6L 01/2002 - 04/2008 - rear SEAT Ibiza VI Type 6P 01/2015 - 12/2017 - front SEAT Ibiza VI Type 6P 01/2015 - 12/2017 - rear SEAT Ibiza V Type 6J 05/2008 - 12/2015 - front SEAT Ibiza V Type 6J 05/2008 - 12/2015 - rear SEAT Leon I Cupra R Type 1M 11/1999 - 08/2005 - front SEAT Leon I Cupra R Type 1M 11/1999 - 08/2005 - rear SEAT Leon I Type 1M 11/1999 - 08/2005 - front SEAT Leon I Type 1M 11/1999 - 08/2005 - rear SEAT Toledo I 2.0 16V Type 1L 01/1991 - 12/1999 - front SEAT Toledo I 2.0 16V Type 1L 01/1991 - 12/1999 - rear SEAT Toledo II Type 1M 01/1999 - 10/2004 - front SEAT Toledo II Type 1M 01/1999 - 10/2004 - rear SKODA Fabia II Type 5J 07/2010 - 12/2014 - front SKODA Fabia II Type 5J 07/2010 - 12/2014 - rear SKODA Fabia I Type 6Y 08/1999 - 03/2008 - front SKODA Fabia I Type 6Y 08/1999 - 03/2008 - rear SKODA Octavia I Type 1U 01/1996 - 12/2003 - front SKODA Octavia I Type 1U 01/1996 - 12/2003 - rear SKODA Roomster Type 5J 09/2006 - 12/2015 - front SKODA Roomster Type 5J 09/2006 - 12/2015 - rear VOLKSWAGEN Bora Type 1J 01/1997 - 12/2002 - front VOLKSWAGEN Bora Type 1J 01/1997 - 12/2002 - rear VOLKSWAGEN Corrado Type 53I 2.9i VR6 08/1987 - 02/1995 - front VOLKSWAGEN Corrado Type 53I 2.9i VR6 08/1987 - 02/1995 - rear VOLKSWAGEN Fox Type 5Z 01/2005 - 12/2011 - front VOLKSWAGEN Fox Type 5Z 01/2005 - 12/2011 - rear VOLKSWAGEN Golf III 2.0i GTI Type 1HX0 01/1991 - 12/1996 - front VOLKSWAGEN Golf III 2.0i GTI Type 1HX0 01/1991 - 12/1996 - rear VOLKSWAGEN Golf III 2.9i VR6 Type 1HX 01/1991 - 12/1996 - front VOLKSWAGEN Golf III 2.9i VR6 Type 1HX 01/1991 - 12/1996 - rear VOLKSWAGEN Golf IV Type 1J 08/1997 - 08/2003 - front VOLKSWAGEN Golf IV Type 1J 08/1997 - 08/2003 - rear VOLKSWAGEN New Beetle Cabrio Type 1Y 01/2003 - 12/2010 - front VOLKSWAGEN New Beetle Cabrio Type 1Y 01/2003 - 12/2010 - rear VOLKSWAGEN New Beetle Type 9C 01/1998 - 12/2010 - front VOLKSWAGEN New Beetle Type 9C 01/1998 - 12/2010 - rear VOLKSWAGEN Passat Type 3A2 / 35I 02/1988 - 06/1996 - front VOLKSWAGEN Passat Type 3A2 / 35I 02/1988 - 06/1996 - rear VOLKSWAGEN Polo Cross IV Type 9N 01/2001 - 12/2004 - front VOLKSWAGEN Polo Cross IV Type 9N 01/2001 - 12/2004 - rear VOLKSWAGEN Polo Fox IV Type 9N 01/2005 - 05/2009 - front VOLKSWAGEN Polo Fox IV Type 9N 01/2005 - 05/2009 - rear VOLKSWAGEN Polo Fun IV Type 9N 01/2005 - 05/2009 - front VOLKSWAGEN Polo Fun IV Type 9N 01/2005 - 05/2009 - rear VOLKSWAGEN Polo R WRC Type 6R 01/2013 - 12/2014 - front VOLKSWAGEN Polo R WRC Type 6R 01/2013 - 12/2014 - rear VOLKSWAGEN Polo V Type 6R 06/2009 - 12/2017 - front VOLKSWAGEN Polo V Type 6R 06/2009 - 12/2017 - rear VOLKSWAGEN Vento Type 1HX0 11/1991 - 09/1998 - front VOLKSWAGEN Vento Type 1HX0 11/1991 - 09/1998 - rear AUDI TT I Cabrio Type 8N 10/1998 - 07/2006 - front AUDI TT I Cabrio Type 8N 10/1998 - 07/2006 - rear AUDI TT I QuattroType 8N 10/1998 - 07/2006 - front AUDI TT I QuattroType 8N 10/1998 - 07/2006 - rear SKODA Kamiq Type NW 01/2019 - - front SKODA Kamiq Type NW 01/2019 - - rear SKODA Scala Type NW 01/2019 - - front SKODA Scala Type NW 01/2019 - - rear VOLKSWAGEN T-Cross Type C1 01/2019 - - front VOLKSWAGEN T-Cross Type C1 01/2019 - - rear AUDI A1 Type GB 01/2018 - - front AUDI A1 Type GB 01/2018 - - rear AUDI A2 Type 8Z0 02/2000 - 08/2005 - front AUDI A2 Type 8Z0 02/2000 - 08/2005 - rear AUDI TT I Type 8N 10/1998 - 07/2006 - front AUDI TT I Type 8N 10/1998 - 07/2006 - rear SEAT Arona Type P 01/2017 - - front SEAT Arona Type P 01/2017 - - rear SEAT Ibiza VII Type KJ - 6F 01/2017 - - front SEAT Ibiza VII Type KJ - 6F 01/2017 - - rear SEAT Toledo IV Type NH 07/2012 - - front SEAT Toledo IV Type NH 07/2012 - - rear SKODA Praktic Type 5J 01/2008 - - front SKODA Praktic Type 5J 01/2008 - - rear SKODA Rapid Type 6R 07/2012 - - front SKODA Rapid Type 6R 07/2012 - - rear VOLKSWAGEN Polo VI Type AW 01/2017 - - front VOLKSWAGEN Polo VI Type AW 01/2017 - - rear AUDI S1 Type 8X 01/2014 - 12/2018 - front AUDI S1 Type 8X 01/2014 - 12/2018 - rear AUDI A1 Type 8X 05/2010 - 12/2018 - front VOLKSWAGEN Taigo Type CS 01/2021 - - rear SKODA Fabia III Type 5J 01/2014 - 12/2020 - front SKODA Fabia III Type 5J 01/2014 - 12/2020 - rear SKODA Fabia IV Type PJ 01/2021 - - front SKODA Fabia IV Type PJ 01/2021 - - rear VOLKSWAGEN Taigo Type CS 01/2021 - - front AUDI A1 Type 8X 05/2010 - 12/2018 - rear AUDI A3 Type 8L 09/1996 - 04/2003 - front AUDI A3 Type 8L 09/1996 - 04/2003 - rear AUDI S3 Type 8L 01/1998 - 12/2003 - front AUDI S3 Type 8L 01/1998 - 12/2003 - rear SEAT Cordoba III Type 6L 10/2002 - 11/2009 - front |
