Wheel Spacers without Bolts 4x100x60 th. 20 mm
Race Use Only Product – Not intended for street use – Please check details on the “Race use only” footer’s section
Description
What is a spacer and where should it be placed? What are spacers used for?
Spacers are an accessory mounted between wheel and hub to increase track width, that is, the distance between the wheels, and give the vehicle a stylish, aggressive appearance. Athena S.p.A. offers a wide range of wheel spacers made of top-quality extruded aluminium bar, machined using innovative technologies and the best CNC machine tools for maximum precision, always. This production process, which does not involve melting points, gives Athena spacers unbeatable resistance to wear and, once mounted, eliminates all vibration problems.
Why buy an Athena spacer? What are the advantages of spacers?
Spacers are made using the best quality of aluminium and the kits contain, if applicable, Italian-made 10.9 class bolts. Athena spacers are specifically tailored to each vehicle and the bolted versions include the proper bolts for each application, making life easier for the end user (no worries about choosing the wrong type of bolts).
Athena has all the technical know-how and equipment for making any customised spacer on site.
Are wheel spacers legal?
Mounting spacers alters the homologated technical characteristics of the car. Before mounting, therefore, you must check whether this modification is allowed by your country's highway code. Otherwise, you can only use them in closed areas or on a track.
Athena spacers, made entirely with the best aluminium alloys, are for sporting use only. Athena S.p.A. cannot be held responsible for any damage deriving from incorrect use or incorrect assembly of the spacer. Mounting these products could void the vehicle manufacturer's warranty.
How to fit the spacers correctly?
Mounting them requires basic knowledge of automotive mechanics and must be done in a workmanlike manner in order to ensure your safety. For this reason, we recommend that you always have them properly mounted by specialist centres and skilled experts.
1) Clean the wheel hubs PERFECTLY using a wire brush. Support surfaces and all parts in contact with the spacers must not show any traces of oxidation (the steel must be bare);
2) Clean in the same way the inside of the wheel rim on the part that will come into contact with the spacer;
If the wheel bearing grease cap occupies space, it must be removed and reassembled in the centre of the spacer after this has been mounted;
3) After having perfectly cleaned the wheel hubs, position the spacers to check their application (wheelbase, hub diameter and bolt thread);
The spacers must rest perfectly against the surface of the brake disc or drum, in full contact.
The spacers must be positioned parallel to the hub. Positioning the spacer at an angle could block it and cause it to break;
4) Check the length of the bolts and then definitively tighten the spacer.
5) Mount the spacer on the wheel hub by mounting the rim and tightening the nuts or bolts supplied crosswise, using a torque wrench.
6) You must follow the instructions of the vehicle manufacturer or aftermarket producer of the rims to define the tightening torques of the bolts.
7) After tightening, with the vehicle still on the ramp, turn the wheel by hand to make sure it rotates freely without any impediment.
8) Bring the vehicle back down to the ground and tighten the wheels to the torque specified by the manufacturer (using a torque wrench)
9) Check once again that the tyres do not come into contact with any mechanical or bodywork element by steering left and right and shifting the car a few meters.
10) Check the tightness of the spacers and wheels after running in for about 100km.
What to always check to avoid risks?
• Always check the correct tyre pressure
• Check that the fastening bolts are tightened according to the table provided by the manufacturer.
• Check that the tyres do not rub against the bodywork
• Check tyre wear from time to time to make sure toe and camber are correct.
• Check the state of nuts and bolts once or twice a year and always at each tyre change, replacing them if necessary
• If involved in an accident, replace the wheel spacers immediately
• Strictly follow the vehicle manufacturer's recommendations should repairs be needed

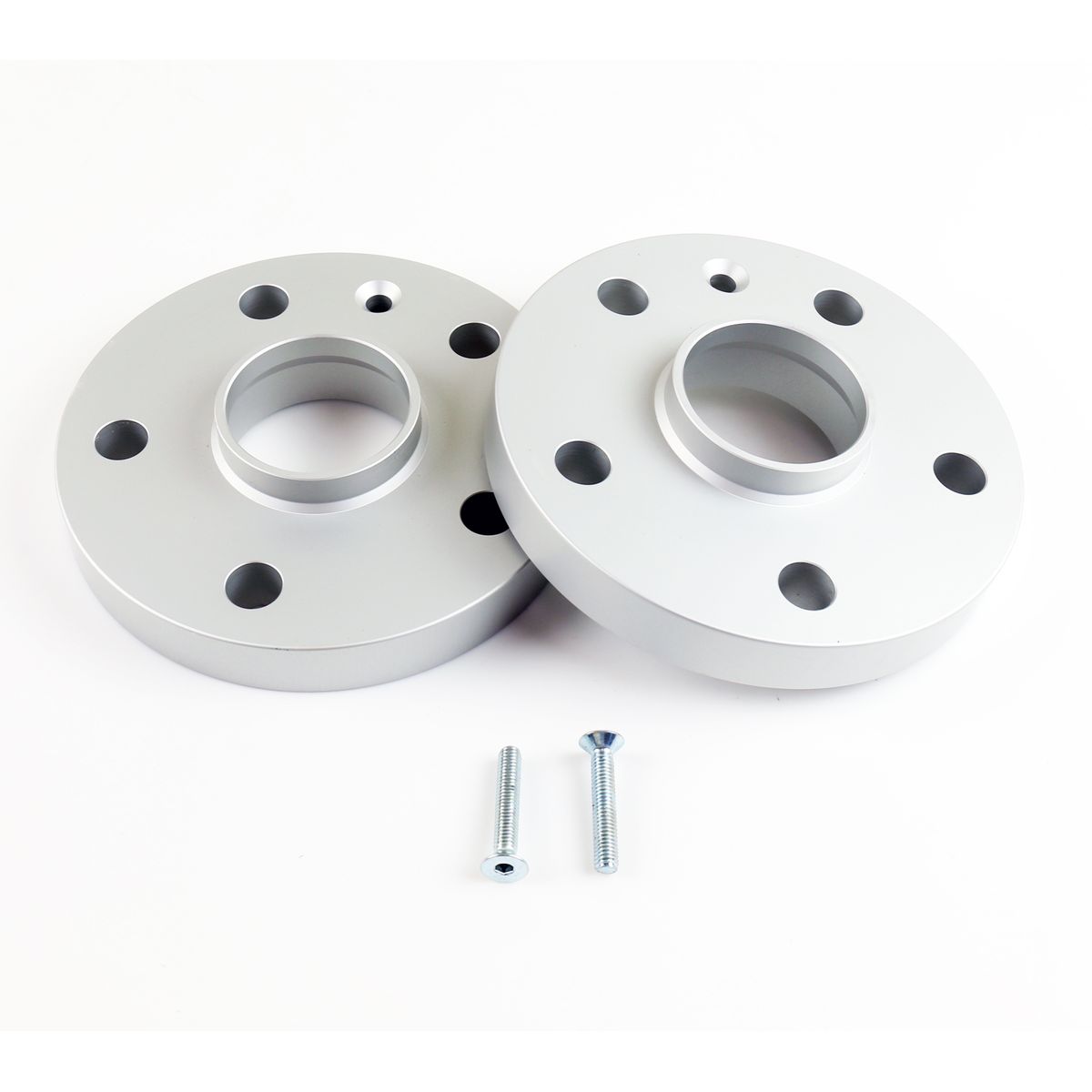

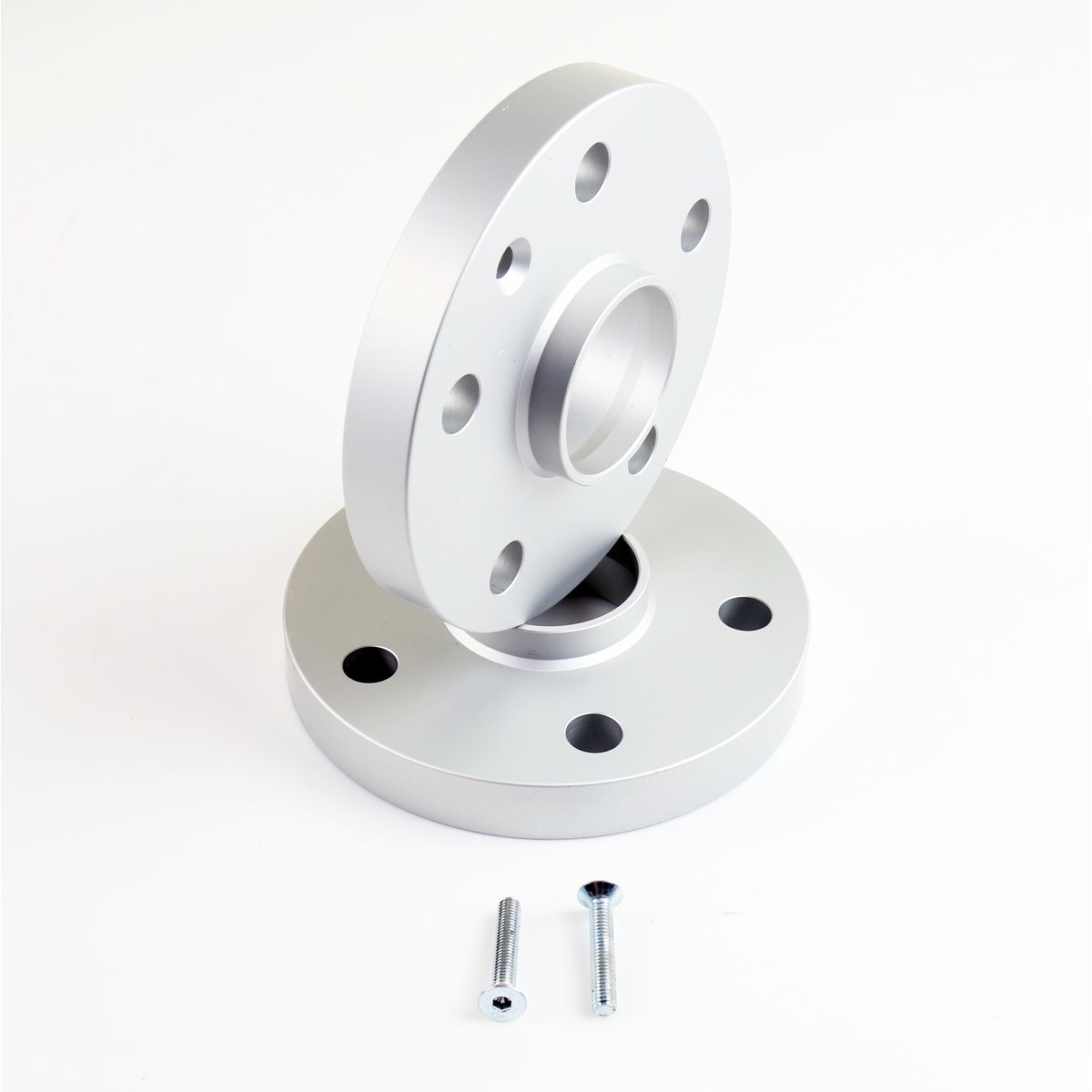

These Athena spacers have a thickness of 20 mm, a wheelbase of 100 mm and a hub diameter of 60 mm. They also have 4 holes.
Bullet points
Made from a bar of top quality aluminium
Perfect clearance to enhance driving feeling
Better responsiveness and optimal handling when cornering
Technical features
| Finishing | Anodized |
| Fitted Into Rims | OEM |
| Hub C to C | 4X100 |
| Hub diameter | 60.00 |
| Net Weight (Kg) | 1.70 |
| Thickness (mm) | 20.00 |
| Type | Spacers without bolts |
| Vehicle spacer | NISSAN Note Type E11 03/2006 - 02/2014 - rear RENAULT Alpine GT Type D501 / D502 / D503 06/1980 - 01/1985 - front RENAULT Alpine GT Type D501 / D502 / D503 06/1980 - 01/1985 - rear RENAULT Clio III Type BRO/1-CRO/1 05/2005 - 12/2012 - front RENAULT Clio III Type BRO/1-CRO/1 05/2005 - 12/2012 - rear RENAULT Clio II Type BB0 09/1998 - 12/2004 - front RENAULT Clio II Type BB0 09/1998 - 12/2004 - rear RENAULT Clio I Type B/C57 05/1990 - 08/1998 - front RENAULT Clio I Type B/C57 05/1990 - 08/1998 - rear RENAULT Espace I / II Type J11 / J63 07/1984 - 10/1996 - front RENAULT Espace I / II Type J11 / J63 07/1984 - 10/1996 - rear RENAULT Kangoo I 4 fori / holes Type KC 01/1997 - 12/2008 - front RENAULT Kangoo I 4 fori / holes Type KC 01/1997 - 12/2008 - rear RENAULT Laguna I Type B56 / K56 11/1993 - 03/2001 - front RENAULT Laguna I Type B56 / K56 11/1993 - 03/2001 - rear RENAULT Megane II Type DA NO RS 01/2002 - 08/2008 - front RENAULT Megane II Type DA NO RS 01/2002 - 08/2008 - rear RENAULT Megane I Type DA 01/1995 - 12/2002 - front RENAULT Megane I Type DA 01/1995 - 12/2002 - rear RENAULT Safrane I Type B54 04/1992 - 07/1996 - front RENAULT Safrane I Type B54 04/1992 - 07/1996 - rear RENAULT Thalia Type B 02/1998 - 10/2003 - front RENAULT Thalia Type B 02/1998 - 10/2003 - rear RENAULT Twingo I Type C06 05/1997 - 12/2007 - front RENAULT Twingo I Type C06 05/1997 - 12/2007 - rear DACIA Sandero / Stepway Type DJF 01/2021 - front DACIA Sandero / Stepway Type DJF 01/2021 - rear DACIA Sandero / Stepway Type SD/DR 01/2012 - 12/2020 - front DACIA Sandero / Stepway Type SD/DR 01/2012 - 12/2020 - rear RENAULT Captur I Type X98 03/2013 - 12/2018 - front RENAULT Captur I Type X98 03/2013 - 12/2018 - rear RENAULT Clio IV Type R 09/2012 - 12/2020 - front RENAULT Clio IV Type R 09/2012 - 12/2020 - rear RENAULT Clio IV Type X98 09/2012 - 12/2020 - front RENAULT Clio IV Type X98 09/2012 - 12/2020 - rear RENAULT Clio V Type RJA 01/2021 - - front RENAULT Clio V Type RJA 01/2021 - - rear RENAULT Modus Type P 01/2004 - 12/2012 - front RENAULT Modus Type P 01/2004 - 12/2012 - rear RENAULT R11 Type B - C37 01/1981 - 12/1988 - front RENAULT R11 Type B - C37 01/1981 - 12/1988 - rear RENAULT R19 Type B - C37 01/1981 - 12/1988 - front RENAULT R19 Type B - C37 01/1981 - 12/1988 - rear RENAULT R21 Type K48- L48 01/1986 - 12/1995 - front RENAULT R21 Type K48- L48 01/1986 - 12/1995 - rear RENAULT R5 Type B - C40 - C40S 01/1984 - 12/1996 - front RENAULT R5 Type B - C40 - C40S 01/1984 - 12/1996 - rear RENAULT Twingo III Type BCM 03/2014 - - front RENAULT Twingo III Type BCM 03/2014 - - rear RENAULT Twingo II Type N 01/2007 - 03/2014 - front RENAULT Twingo II Type N 01/2007 - 03/2014 - rear RENAULT Twingo II Type N 09/2007 - 12/2013 - front RENAULT Twingo II Type N 09/2007 - 12/2013 - rear RENAULT Twingo I Type C06 01/1993 - 12/2006 - front RENAULT Twingo I Type C06 01/1993 - 12/2006 - rear SMART Brabus Type 453 - 451 01/2014 - - front SMART Brabus Type 453 - 451 01/2014 - - rear DACIA Dokker Type SD 09/2012 - - front DACIA Dokker Type SD 09/2012 - - rear DACIA Lodgy Type SD 01/2012 - - front DACIA Lodgy Type SD 01/2012 - - rear DACIA Logan Type SD/SR 09/2004 - - front DACIA Logan Type SD/SR 09/2004 - - rear RENAULT R5 / R9 / R11 / R19 - - front RENAULT R5 / R9 / R11 / R19 - - rear RENAULT Wind Type N 01/2010 - - front RENAULT Wind Type N 01/2010 - - rear RENAULT Zoe Type AG 01/2012 - - front RENAULT Zoe Type AG 01/2012 - - rear SMART Forfour Type 453 -451 07/2014 - - front DACIA Sandero / Stepway Type SD 05/2008 - 12/2012 - front SMART Fortwo Type 453 07/2014 - - front SMART Fortwo Type 453 07/2014 - - rear NISSAN Micra V Type K14 01/2017 - 12/2023 - front NISSAN Micra V Type K14 01/2017 - 12/2023 - rear SMART Forfour Type 453 -451 07/2014 - - rear DACIA Sandero / Stepway Type SD 05/2008 - 12/2012 - rear NISSAN Micra III CC Type K12 02/2006 - 09/2010 - front NISSAN Micra III CC Type K12 02/2006 - 09/2010 - rear NISSAN Micra III Type K12 01/2003 - 09/2010 - front NISSAN Micra III Type K12 01/2003 - 09/2010 - rear NISSAN Note Type E11 03/2006 - 02/2014 - front |
