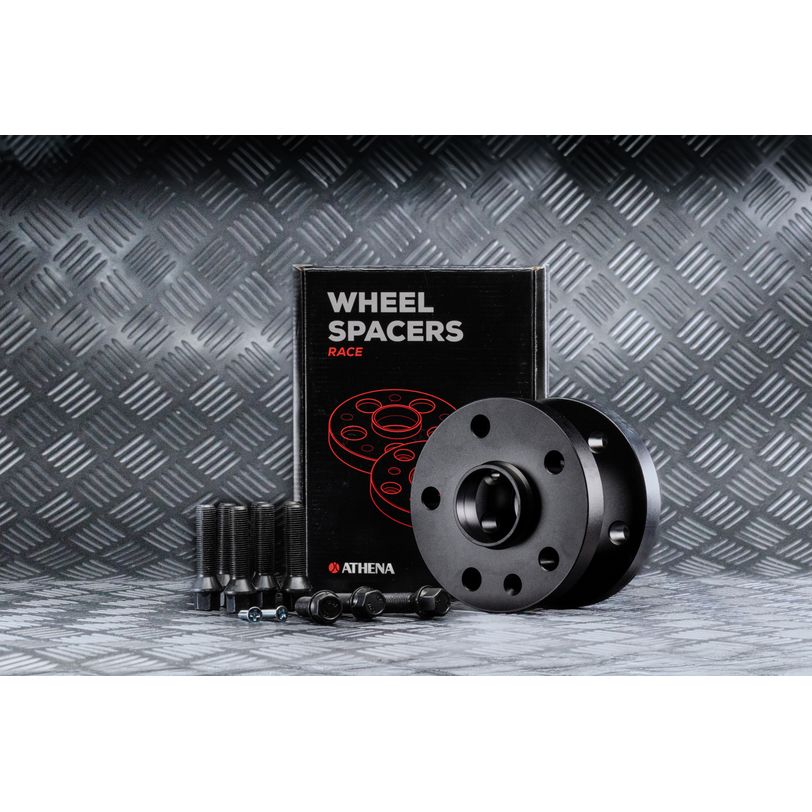

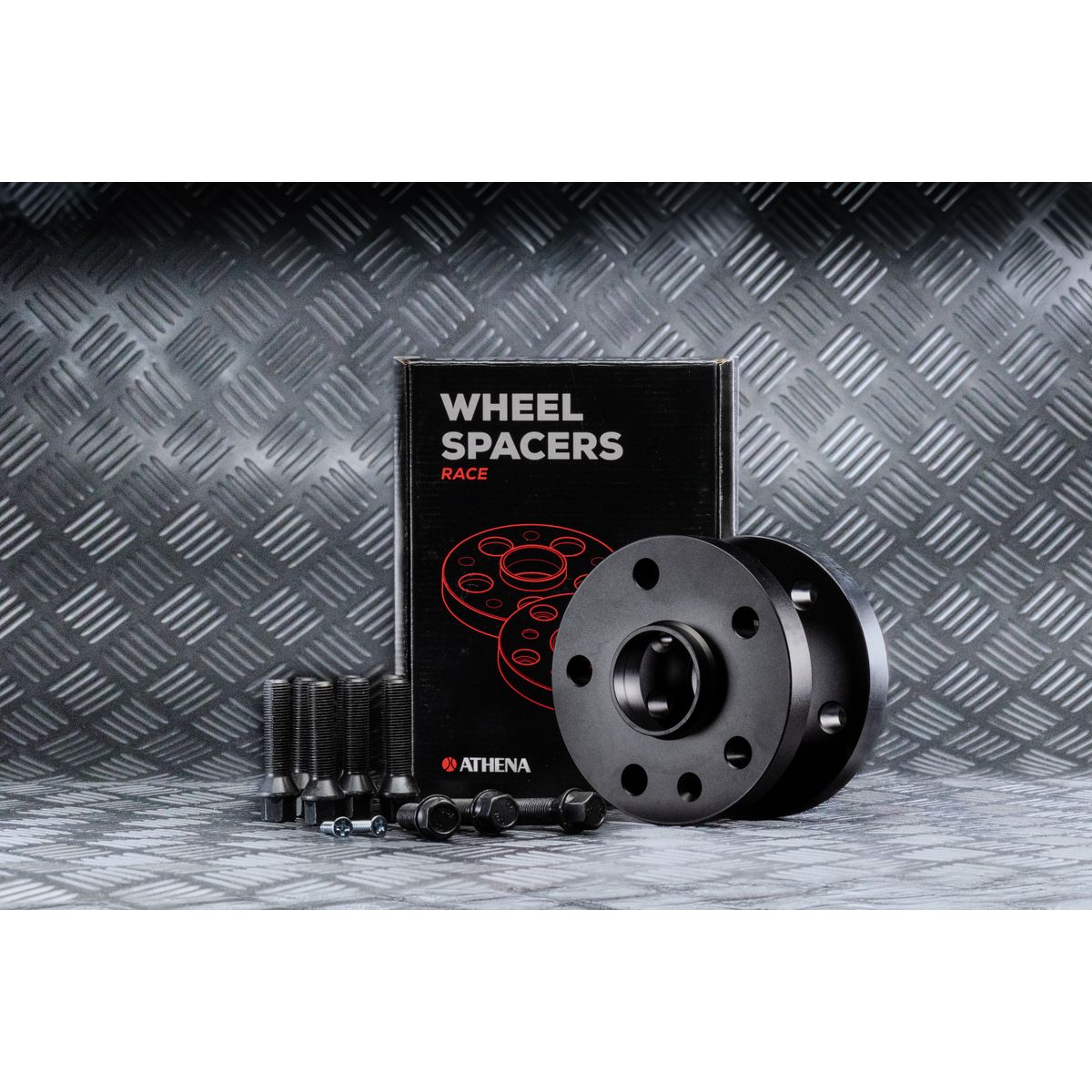

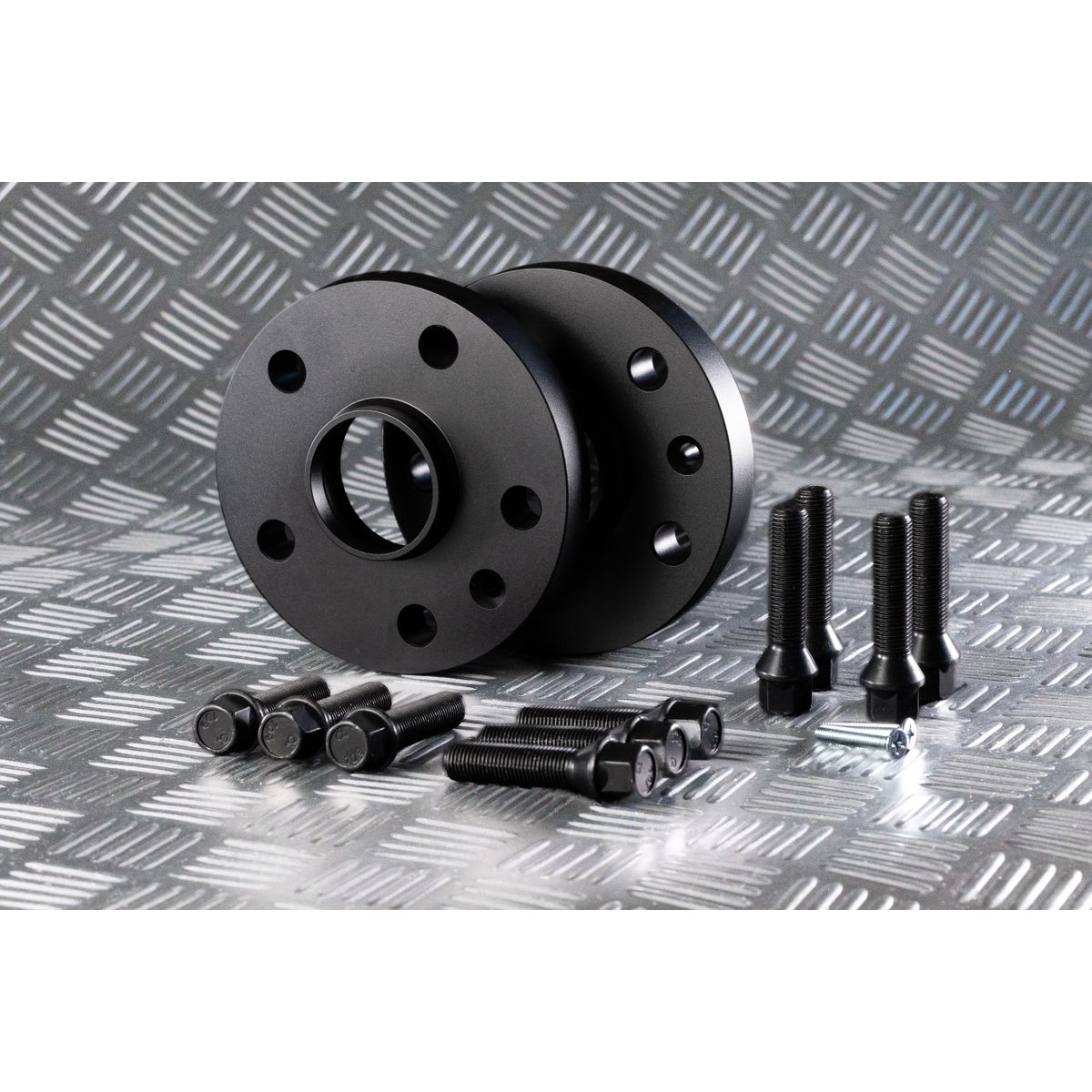

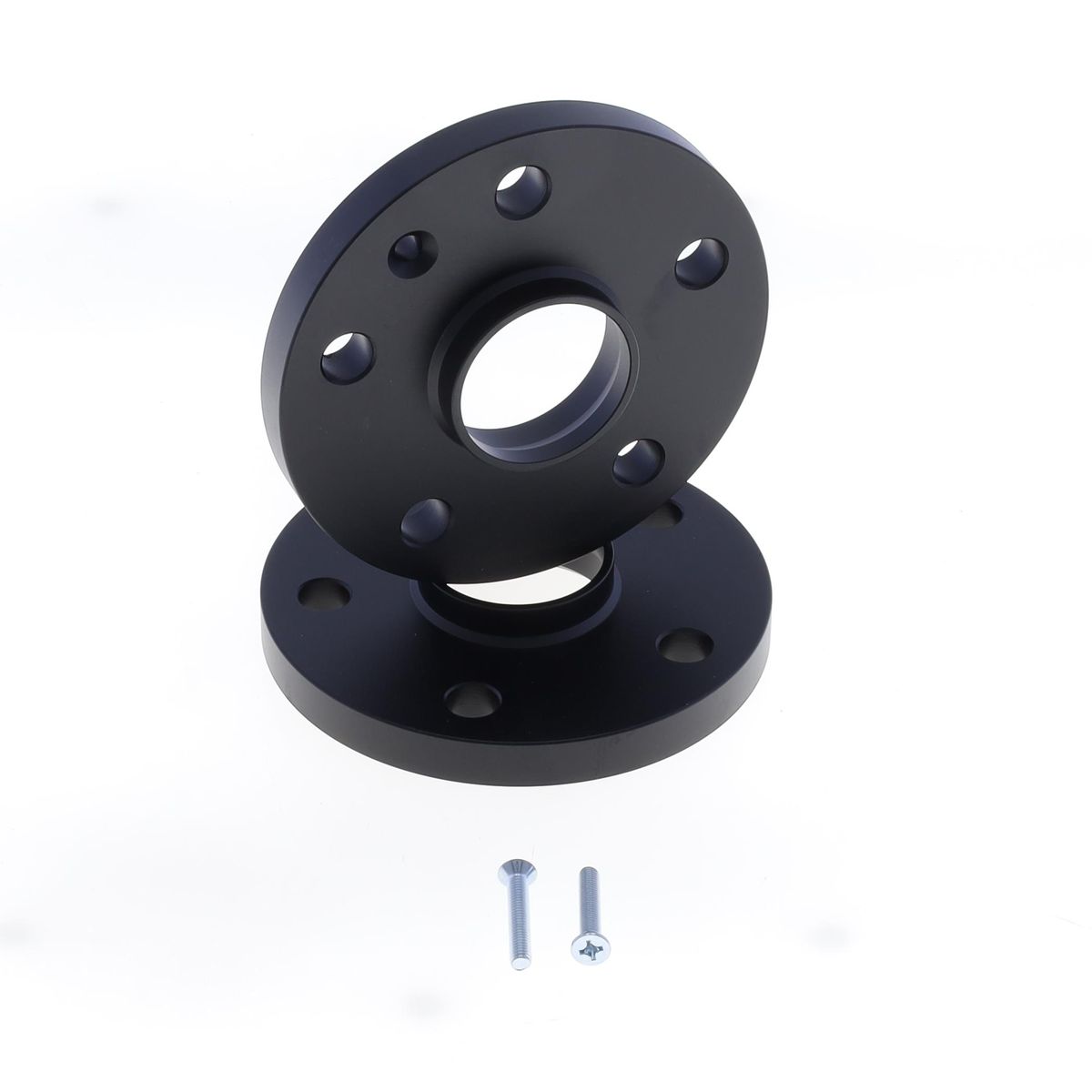

Wheel Spacers without Bolts 5X112X57 th. 16 mm
Race Use Only Product – Not intended for street use – Please check details on the “Race use only” footer’s section
Description
Explore elegance and performance with the new Athena Wheel Spacers, now available in the sophisticated black version. Carefully designed by Athena's R&D team, these spacers combine lightness, safety, and durability, ensuring a flawless driving experience.
The widening of the track not only enhances maneuverability and road grip but the new black finish is crafted to seamlessly integrate with modern alloy or black-diamond-cut wheels, adding a touch of style without compromising on performance.
Precision-crafted from high-quality extruded aluminum bars using cutting-edge CNC technologies, Athena spacers ensure tight tolerances and unbeatable wear resistance. The prolonged anodization process preserves the black color over time, resisting weather elements and corrosion.
Choose Athena for a style and performance upgrade. Make your car stand out with Athena Wheel Spacers - the perfect synthesis of sophisticated design and advanced engineering.
What is a spacer and where should it be placed? What are spacers used for?
Spacers are an accessory mounted between wheel and hub to increase track width, that is, the distance between the wheels, and give the vehicle a stylish, aggressive appearance. Athena S.p.A. offers a wide range of wheel spacers made of top-quality extruded aluminium bar, machined using innovative technologies and the best CNC machine tools for maximum precision, always. This production process, which does not involve melting points, gives Athena spacers unbeatable resistance to wear and, once mounted, eliminates all vibration problems.
Why buy an Athena spacer? What are the advantages of spacers?
Spacers are made using the best quality of aluminium and the kits contain, if applicable, Italian-made 10.9 class bolts. Athena spacers are specifically tailored to each vehicle and the bolted versions include the proper bolts for each application, making life easier for the end user (no worries about choosing the wrong type of bolts).
Athena has all the technical know-how and equipment for making any customised spacer on site.
Are wheel spacers legal?
Mounting spacers alters the homologated technical characteristics of the car. Before mounting, therefore, you must check whether this modification is allowed by your country's highway code. Otherwise, you can only use them in closed areas or on a track.
Athena spacers, made entirely with the best aluminium alloys, are for sporting use only. Athena S.p.A. cannot be held responsible for any damage deriving from incorrect use or incorrect assembly of the spacer. Mounting these products could void the vehicle manufacturer's warranty.
How to fit the spacers correctly?
Mounting them requires basic knowledge of automotive mechanics and must be done in a workmanlike manner in order to ensure your safety. For this reason, we recommend that you always have them properly mounted by specialist centres and skilled experts.
1) Clean the wheel hubs PERFECTLY using a wire brush. Support surfaces and all parts in contact with the spacers must not show any traces of oxidation (the steel must be bare);
2) Clean in the same way the inside of the wheel rim on the part that will come into contact with the spacer;
If the wheel bearing grease cap occupies space, it must be removed and reassembled in the centre of the spacer after this has been mounted;
3) After having perfectly cleaned the wheel hubs, position the spacers to check their application (wheelbase, hub diameter and bolt thread);
The spacers must rest perfectly against the surface of the brake disc or drum, in full contact.
The spacers must be positioned parallel to the hub. Positioning the spacer at an angle could block it and cause it to break;
4) Check the length of the bolts and then definitively tighten the spacer.
5) Mount the spacer on the wheel hub by mounting the rim and tightening the nuts or bolts supplied crosswise, using a torque wrench.
6) You must follow the instructions of the vehicle manufacturer or aftermarket producer of the rims to define the tightening torques of the bolts.
7) After tightening, with the vehicle still on the ramp, turn the wheel by hand to make sure it rotates freely without any impediment.
8) Bring the vehicle back down to the ground and tighten the wheels to the torque specified by the manufacturer (using a torque wrench)
9) Check once again that the tyres do not come into contact with any mechanical or bodywork element by steering left and right and shifting the car a few meters.
10) Check the tightness of the spacers and wheels after running in for about 100km.
What to always check to avoid risks?
• Always check the correct tyre pressure
• Check that the fastening bolts are tightened according to the table provided by the manufacturer.
• Check that the tyres do not rub against the bodywork
• Check tyre wear from time to time to make sure toe and camber are correct.
• Check the state of nuts and bolts once or twice a year and always at each tyre change, replacing them if necessary
• If involved in an accident, replace the wheel spacers immediately
• Strictly follow the vehicle manufacturer's recommendations should repairs be needed
Bullet points
Made from a bar of top quality aluminium
Perfect clearance to enhance driving feeling
10.9 class Italian Made bolts and nuts to guarantee the best safety on the road
Better responsiveness and optimal handling when cornering
Technical features
| Finishing | Black anodization |
| Fitted Into Rims | OEM |
| Hub C to C | 5X112 |
| Hub diameter | 57.00 |
| Net Weight (Kg) | 1.23 |
| Thickness (mm) | 16.00 |
| Type | Spacers without bolts |
| Vehicle spacer | AUDI TT Coupé Type 8J 07/2006 - 12/2014 - rear AUDI TTS Coupé Type 8J 06/2008 - 12/2014 - front AUDI TTS Coupé Type 8J 06/2008 - 12/2014 - rear AUDI TTS Roadster Type 8J 06/2008 - 12/2014 - front AUDI TTS Roadster Type 8J 06/2008 - 12/2014 - rear SEAT Alhambra Type 7MS 04/1996 - 12/2010 - front SEAT Alhambra Type 7MS 04/1996 - 12/2010 - rear SEAT Altea Type 5P 06/2004 - 12/2015 - front SEAT Altea Type 5P 06/2004 - 12/2015 - rear SEAT Exeo Type 3R 04/2009 - 12/2013 - front SEAT Exeo Type 3R 04/2009 - 12/2013 - rear SEAT Leon / Leon Cupra Type 1P 01/2006 - 04/2013 - front SEAT Leon / Leon Cupra Type 1P 01/2006 - 04/2013 - rear SEAT Toledo III Type 5P 01/2004 - 12/2009 - front SEAT Toledo III Type 5P 01/2004 - 12/2009 - rear SKODA Octavia II Type 1Z 01/2004 - 12/2013 - front SKODA Octavia II Type 1Z 01/2004 - 12/2013 - rear SKODA Superb Type 3T 01/2008 - 12/2015 - front SKODA Superb Type 3T 01/2008 - 12/2015 - rear SKODA Superb Type 3U 01/2001 - 12/2008 - front SKODA Superb Type 3U 01/2001 - 12/2008 - rear SKODA Yeti Type 5L 10/2009 - 12/2017 - front SKODA Yeti Type 5L 10/2009 - 12/2017 - rear VOLKSWAGEN Eos Type 1F 01/2006 - 12/2015 - front VOLKSWAGEN Eos Type 1F 01/2006 - 12/2015 - rear VOLKSWAGEN Golf VI Type 1K 11/2008 - 10/2012 - front VOLKSWAGEN Golf VI Type 1K 11/2008 - 10/2012 - rear VOLKSWAGEN Golf V Plus Type 1KP 03/2005 - 12/2008 - front VOLKSWAGEN Golf V Plus Type 1KP 03/2005 - 12/2008 - rear VOLKSWAGEN Golf V R32 Type 1K 11/2003 - 11/2008 - front VOLKSWAGEN Golf V R32 Type 1K 11/2003 - 11/2008 - rear VOLKSWAGEN Golf V Type 1K 11/2003 - 11/2008 - front VOLKSWAGEN Golf V Type 1K 11/2003 - 11/2008 - rear VOLKSWAGEN Golf V Variant Type 1KM 11/2003 - 11/2008 - front VOLKSWAGEN Golf V Variant Type 1KM 11/2003 - 11/2008 - rear VOLKSWAGEN Passat Type 3B 06/1996 - 12/2004 - front VOLKSWAGEN Passat Type 3B 06/1996 - 12/2004 - rear VOLKSWAGEN Passat Type 3C/B6 01/2005 - 12/2010 - front VOLKSWAGEN Passat Type 3C/B6 01/2005 - 12/2010 - rear VOLKSWAGEN Passat Type 3C/B7 01/2010 - 12/2014 - front VOLKSWAGEN Passat Type 3C/B7 01/2010 - 12/2014 - rear VOLKSWAGEN Passat Type 3CC 06/2008 - 12/2012 - front VOLKSWAGEN Passat Type 3CC 06/2008 - 12/2012 - rear VOLKSWAGEN Phaeton Type 3D 01/2002 - 12/2016 - front VOLKSWAGEN Phaeton Type 3D 01/2002 - 12/2016 - rear VOLKSWAGEN Scirocco III Type 13 09/2008 - 12/2017 - front VOLKSWAGEN Scirocco III Type 13 09/2008 - 12/2017 - rear VOLKSWAGEN Sharan Type 7M 01/1995 - 12/2010 - front VOLKSWAGEN Sharan Type 7M 01/1995 - 12/2010 - rear AUDI A3 / Sportback / S3 Type 8V / 8VA 09/2012 - 12/2019 - front AUDI A3 / Sportback / S3 Type 8V / 8VA 09/2012 - 12/2019 - rear AUDI A3 Type 8YA 01/2020 - - front AUDI A3 Type 8YA 01/2020 - - rear AUDI A4 / S4 Type 8D (B5) 01/1996 - 12/2000 - front AUDI A4 / S4 Type 8D (B5) 01/1996 - 12/2000 - rear AUDI A4 Type 8E (B7) / S4 Type 8E (B7) 01/2004 - 12/2007 - front AUDI A4 Type 8E (B7) / S4 Type 8E (B7) 01/2004 - 12/2007 - rear AUDI A6 Type C4 / S6 Type C4 01/1994 - 12/1997 - front AUDI A6 Type C4 / S6 Type C4 01/1994 - 12/1997 - rear AUDI A6 Type C6 (4F) / Allroad Type C6 (4F) 01/2004 - 12/2011 - front AUDI A6 Type C6 (4F) / Allroad Type C6 (4F) 01/2004 - 12/2011 - rear AUDI Q3 RS Type 8U - 8U1 01/2013 - 12/2015 - front AUDI Q3 RS Type 8U - 8U1 01/2013 - 12/2015 - rear AUDI Q3 Type 8U 06/2011 - 12/2017 - front AUDI Q3 Type 8U 06/2011 - 12/2017 - rear AUDI R8 Type 42 / R8 Quattro Type 42 08/2007 - 12/2016 - front AUDI R8 Type 42 / R8 Quattro Type 42 08/2007 - 12/2016 - rear AUDI RS4 B7 Type QB6 01/2005 - 12/2009 - front AUDI RS4 B7 Type QB6 01/2005 - 12/2009 - rear AUDI RS6 I C5 Type 4B 01/2003 - 12/2007 - front AUDI RS6 I C5 Type 4B 01/2003 - 12/2007 - rear AUDI RS6 II C6 Type 4F 01/2008 - 12/2010 - front AUDI RS6 II C6 Type 4F 01/2008 - 12/2010 - rear AUDI S2 Type 89Q 01/1990 - 12/1995 - front AUDI S2 Type 89Q 01/1990 - 12/1995 - rear AUDI S3 Type 8YA 01/2020 - - front AUDI S3 Type 8YA 01/2020 - - rear AUDI S6 Type 4F 01/2005 - 12/2010 - front AUDI S6 Type 4F 01/2005 - 12/2010 - rear AUDI S6 Type C4 01/1994 - 12/1997 - front AUDI S6 Type C4 01/1994 - 12/1997 - rear AUDI S8 D2 Type 4D 01/1996 - 12/2002 - front AUDI S8 D2 Type 4D 01/1996 - 12/2002 - rear AUDI Urquattro Type 8S 01/1980 - 12/1991 - front AUDI Urquattro Type 8S 01/1980 - 12/1991 - rear AUDI V8 Type C4 (D11) 01/1988 - 12/1994 - front AUDI V8 Type C4 (D11) 01/1988 - 12/1994 - rear BENTLEY Continental Flying Spur Type 3W 01/2005 - 12/2018 - front BENTLEY Continental Flying Spur Type 3W 01/2005 - 12/2018 - rear BENTLEY MTM Coupé 3W 01/2005 - 12/2011 - front BENTLEY MTM Coupé 3W 01/2005 - 12/2011 - rear CUPRA Born Type K1 01/2021 - - front CUPRA Born Type K1 01/2021 - - rear SEAT Leon / Leon Cupra Type 5F 04/2013 - 12/2019 - front SEAT Leon / Leon Cupra Type 5F 04/2013 - 12/2019 - rear SKODA Octavia III Type 5E 01/2013 - 12/2019 - front SKODA Octavia III Type 5E 01/2013 - 12/2019 - rear SKODA Octavia IV Inkl. RS Type Type NX 01/2020 - - front SKODA Octavia IV Inkl. RS Type Type NX 01/2020 - - rear VOLKSWAGEN Caddy/Caddy Life/Caddy Alltrack Type 2K-2KN 01/2003 - 12/2014 - front VOLKSWAGEN Caddy/Caddy Life/Caddy Alltrack Type 2K-2KN 01/2003 - 12/2014 - rear VOLKSWAGEN Golf VIII GTE Type CD 01/2020 - - front VOLKSWAGEN Golf VIII GTE Type CD 01/2020 - - rear VOLKSWAGEN Golf VIII inclus. GTI Type CD 12/2019 - - front VOLKSWAGEN Golf VIII inclus. GTI Type CD 12/2019 - - rear VOLKSWAGEN ID.3 Type ID.3 - E1 11/2019 - - front VOLKSWAGEN ID.3 Type ID.3 - E1 11/2019 - - rear VOLKSWAGEN ID.4 Type ID4.- E2 01/2020 - - front VOLKSWAGEN ID.4 Type ID4.- E2 01/2020 - - rear VOLKSWAGEN Touran / Cross Type 1T 01/2003 - 12/2015 - front VOLKSWAGEN Touran / Cross Type 1T 01/2003 - 12/2015 - rear VOLKSWAGEN T-ROC CabrioType A1 01/2019 - front VOLKSWAGEN T-ROC CabrioType A1 01/2019 - rear AUDI 200 Type 44 - 44Q 01/1983 - 12/1991 - front AUDI 200 Type 44 - 44Q 01/1983 - 12/1991 - rear AUDI A3 / Sportback / S3 Type 8P1 / 8PA / 8P7 09/2004 - 08/2012 - front AUDI A3 / Sportback / S3 Type 8P1 / 8PA / 8P7 09/2004 - 08/2012 - rear AUDI A4 Type 8E (B6) / S4 Type 8E (B6) 01/2001 - 12/2003 - front AUDI A4 Type 8E (B6) / S4 Type 8E (B6) 01/2001 - 12/2003 - rear AUDI A6 Type C5 (4B) / Allroad Type C5 (4B) 01/1997 - 12/2003 - front AUDI A6 Type C5 (4B) / Allroad Type C5 (4B) 01/1997 - 12/2003 - rear AUDI A8 D2 Type (4D) / S8 D2 Type (4D) 01/1994 - 12/2001 - front AUDI A8 D2 Type (4D) / S8 D2 Type (4D) 01/1994 - 12/2001 - rear AUDI A8 D3 Type (4E) / S8 D3 Type (4E) 01/2002 - 12/2009 - front AUDI A8 D3 Type (4E) / S8 D3 Type (4E) 01/2002 - 12/2009 - rear AUDI Q2 Type GA 01/2016 - - front AUDI Q2 Type GA 01/2016 - - rear AUDI Q3 Type F3 01/2018 - - front AUDI Q3 Type F3 01/2018 - - rear AUDI RS4 B5 Type 8D 01/1999 - 12/2001 - front AUDI RS4 B5 Type 8D 01/1999 - 12/2001 - rear AUDI RS Q3 Sportback Type F3N 01/2019 - - front AUDI RS Q3 Sportback Type F3N 01/2019 - - rear AUDI S6 Type 4B 01/1997 - 12/2004 - front AUDI S6 Type 4B 01/1997 - 12/2004 - rear BENTLEY Continental GT Type 3W 01/2004 - 12/2011 - front BENTLEY Continental GT Type 3W 01/2004 - 12/2011 - rear CUPRA Formentor Type KM7 01/2020 - - front CUPRA Formentor Type KM7 01/2020 - - rear LAMBORGHINI Gallardo Type 140 03/2003 - - front LAMBORGHINI Gallardo Type 140 03/2003 - - rear SEAT Alhambra Type 7N 01/2010 - - front SEAT Alhambra Type 7N 01/2010 - - rear SEAT Ateca Type 5FP 01/2016 - - front SEAT Ateca Type 5FP 01/2016 - - rear SEAT Leon / Leon Cupra Type KL 01/2020 - - front SEAT Leon / Leon Cupra Type KL 01/2020 - - rear SEAT Tarraco Type KN 01/2018 - - front SEAT Tarraco Type KN 01/2018 - - rear SKODA Karoq Type NU 01/2017 - - front SKODA Karoq Type NU 01/2017 - - rear SKODA Kodiaq Type NS 01/2016 - - front SKODA Kodiaq Type NS 01/2016 - - rear SKODA Superb Type 3T - 3V 01/2015 - - front SKODA Superb Type 3T - 3V 01/2015 - - rear VOLKSWAGEN Arteon 01/2017 - - front VOLKSWAGEN Arteon 01/2017 - - rear VOLKSWAGEN Maggiolino Type 5C1 - 5C7 01/2011 - - front VOLKSWAGEN Maggiolino Type 5C1 - 5C7 01/2011 - - rear VOLKSWAGEN Passat Type 3C/B8 01/2014 - - front VOLKSWAGEN Passat Type 3C/B8 01/2014 - - rear VOLKSWAGEN Touran / Cross Type 5T 01/2016 - - front VOLKSWAGEN Touran / Cross Type 5T 01/2016 - - rear VOLKSWAGEN T-ROC Type 5N - A1 01/2017 - - front VOLKSWAGEN T-ROC Type 5N - A1 01/2017 - - rear AUDI RS3 Type 8V 01/2015 - 12/2020 - front AUDI RS3 Type 8V 01/2015 - 12/2020 - rear AUDI SQ2 Type GA 01/2021 - - front AUDI SQ2 Type GA 01/2021 - - rear MG EHS 1.5 Type AS23P-L PLUG-IN- HYBRID 01/2022 - - front MG EHS 1.5 Type AS23P-L PLUG-IN- HYBRID 01/2022 - - rear MG MG5 EV Type EP22 07/2022 - - front MG MG5 EV Type EP22 07/2022 - - rear VOLKSWAGEN Beetle Type 5C1 01/2011 - 12/2019 - front VOLKSWAGEN Beetle Type 5C1 01/2011 - 12/2019 - rear VOLKSWAGEN Caddy Type SK-SKN 01/2020 - - front VOLKSWAGEN Caddy Type SK-SKN 01/2020 - - rear VOLKSWAGEN Golf VII GTI Type AU 01/2013 - 12/2021 - front VOLKSWAGEN Golf VII GTI Type AU 01/2013 - 12/2021 - rear VOLKSWAGEN Golf VII R Type AU 01/2013 - 12/2021 - front VOLKSWAGEN Golf VII R Type AU 01/2013 - 12/2021 - rear VOLKSWAGEN Golf VII Type AU 11/2012 - 12/2021 - front VOLKSWAGEN Golf VII Type AU 11/2012 - 12/2021 - rear VOLKSWAGEN Jetta VI Type 162 - 16 01/2010 - 12/2018 - front VOLKSWAGEN Jetta VI Type 162 - 16 01/2010 - 12/2018 - rear VOLKSWAGEN Jetta V Type 1KM 01/2004 - 12/2010 - front VOLKSWAGEN Jetta V Type 1KM 01/2004 - 12/2010 - rear VOLKSWAGEN Sharan Type N1 01/2011 - 12/2022 - front VOLKSWAGEN Sharan Type N1 01/2011 - 12/2022 - rear VOLKSWAGEN Tiguan Inkl. R Type 5N - AD1 01/2016 - - front VOLKSWAGEN Tiguan Inkl. R Type 5N - AD1 01/2016 - - rear VOLKSWAGEN Tiguan Type 5N 01/2007 - 12/2016 - front VOLKSWAGEN Tiguan Type 5N 01/2007 - 12/2016 - rear AUDI RS3 Type 8YA 01/2021 - - front AUDI RS3 Type 8YA 01/2021 - - rear AUDI TT RS Type FV 01/2019 - 12/2023 - front AUDI 100 Type C4 01/1990 - 12/1996 - front AUDI TT Type 8J 01/2010 - 12/2014 - front AUDI TT Type 8J 01/2010 - 12/2014 - rear AUDI TT Type 8S 01/2015 - 12/2019 - front AUDI TT Type 8S 01/2015 - 12/2019 - rear CUPRA Ateca Type 5FP 01/2018 - - front CUPRA Ateca Type 5FP 01/2018 - - rear CUPRA Leon Type KL 01/2020 - - front CUPRA Leon Type KL 01/2020 - - rear CUPRA Tavascan Type KR1 01/2024 - - front CUPRA Tavascan Type KR1 01/2024 - - rear CUPRA Terramar Type Kp1 01/2024 - - front CUPRA Terramar Type Kp1 01/2024 - - rear VOLKSWAGEN Caddy/Caddy Life/Caddy Alltrack Type SAA-SAB 01/2015 - 12/2020 - front VOLKSWAGEN Caddy/Caddy Life/Caddy Alltrack Type SAA-SAB 01/2015 - 12/2020 - rear VOLKSWAGEN Golf VIII R Type CD 01/2019 - - front VOLKSWAGEN Golf VIII R Type CD 01/2019 - - rear VOLKSWAGEN Golf VIII Variant Type CDV 01/2020 - - front VOLKSWAGEN Golf VIII Variant Type CDV 01/2020 - - rear VOLKSWAGEN ID Buzz Type EBB - EBA 10/2022 - - front VOLKSWAGEN ID Buzz Type EBB - EBA 10/2022 - - rear ZS EV Type ZS1-SZS1-MZS1 (5x112x57) 01/2022 - - front ZS EV Type ZS1-SZS1-MZS1 (5x112x57) 01/2022 - - rear AUDI TT RS Type FV 01/2019 - 12/2023 - rear AUDI 100 Type C4 01/1990 - 12/1996 - rear AUDI A3 Type 8P 04/2003 - 09/2012 - front AUDI A3 Type 8P 04/2003 - 09/2012 - rear AUDI RS3 Type 8P / 8PA 01/2011 - 12/2014 - front AUDI RS3 Type 8P / 8PA 01/2011 - 12/2014 - rear AUDI TT Coupé Type 8J 07/2006 - 12/2014 - front |
- Net Weight (Kg): 0.27
- Hub diameter: 66.45
- Thickness (mm): 16.00
- Type: Spacers without bolts
- Hub C to C: 5X112
- Hub diameter: 66.45
- Thickness (mm): 20.00
- Type: Spacers without bolts
- Hub C to C: 5X112
- Net Weight (Kg): 0.69
- Hub diameter: 66.45
- Thickness (mm): 16.00
- Type: Spacers without bolts
- Hub C to C: 5X112
- Net Weight (Kg): 0.31
- Hub diameter: 66.45
- Thickness (mm): 12.00
- Type: Spacers without bolts
- Hub C to C: 5X112
