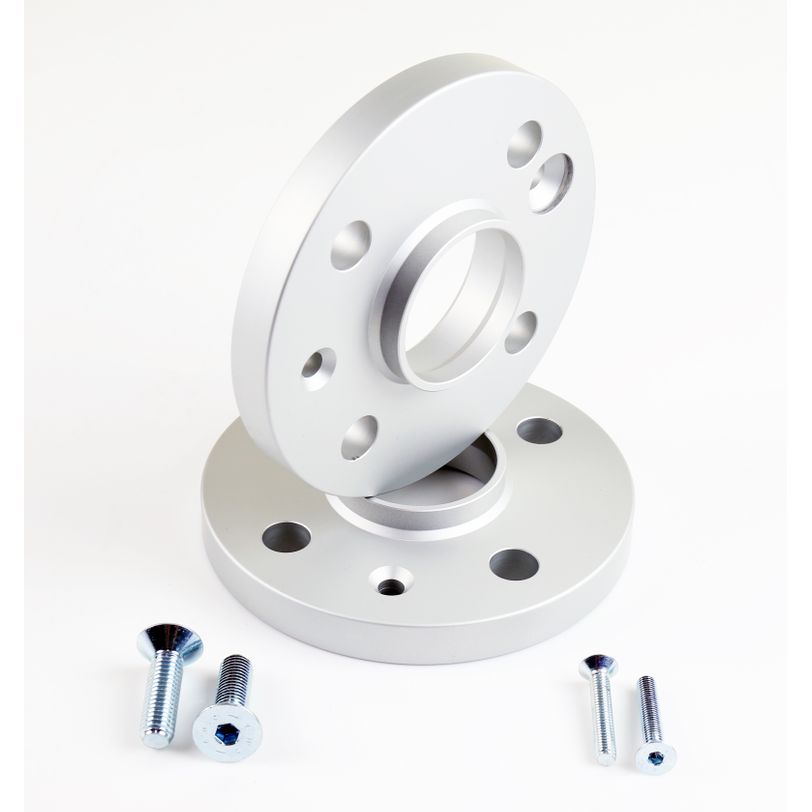

Wheel Spacers without Bolts 4x108x65 th. 12 mm
Race Use Only Product – Not intended for street use – Please check details on the “Race use only” footer’s section
Description
What is a spacer and where should it be placed? What are spacers used for?
Spacers are an accessory mounted between wheel and hub to increase track width, that is, the distance between the wheels, and give the vehicle a stylish, aggressive appearance. Athena S.p.A. offers a wide range of wheel spacers made of top-quality extruded aluminium bar, machined using innovative technologies and the best CNC machine tools for maximum precision, always. This production process, which does not involve melting points, gives Athena spacers unbeatable resistance to wear and, once mounted, eliminates all vibration problems.
Why buy an Athena spacer? What are the advantages of spacers?
Spacers are made using the best quality of aluminium and the kits contain, if applicable, Italian-made 10.9 class bolts. Athena spacers are specifically tailored to each vehicle and the bolted versions include the proper bolts for each application, making life easier for the end user (no worries about choosing the wrong type of bolts).
Athena has all the technical know-how and equipment for making any customised spacer on site.
Are wheel spacers legal?
Mounting spacers alters the homologated technical characteristics of the car. Before mounting, therefore, you must check whether this modification is allowed by your country's highway code. Otherwise, you can only use them in closed areas or on a track.
Athena spacers, made entirely with the best aluminium alloys, are for sporting use only. Athena S.p.A. cannot be held responsible for any damage deriving from incorrect use or incorrect assembly of the spacer. Mounting these products could void the vehicle manufacturer's warranty.
How to fit the spacers correctly?
Mounting them requires basic knowledge of automotive mechanics and must be done in a workmanlike manner in order to ensure your safety. For this reason, we recommend that you always have them properly mounted by specialist centres and skilled experts.
1) Clean the wheel hubs PERFECTLY using a wire brush. Support surfaces and all parts in contact with the spacers must not show any traces of oxidation (the steel must be bare);
2) Clean in the same way the inside of the wheel rim on the part that will come into contact with the spacer;
If the wheel bearing grease cap occupies space, it must be removed and reassembled in the centre of the spacer after this has been mounted;
3) After having perfectly cleaned the wheel hubs, position the spacers to check their application (wheelbase, hub diameter and bolt thread);
The spacers must rest perfectly against the surface of the brake disc or drum, in full contact.
The spacers must be positioned parallel to the hub. Positioning the spacer at an angle could block it and cause it to break;
4) Check the length of the bolts and then definitively tighten the spacer.
5) Mount the spacer on the wheel hub by mounting the rim and tightening the nuts or bolts supplied crosswise, using a torque wrench.
6) You must follow the instructions of the vehicle manufacturer or aftermarket producer of the rims to define the tightening torques of the bolts.
7) After tightening, with the vehicle still on the ramp, turn the wheel by hand to make sure it rotates freely without any impediment.
8) Bring the vehicle back down to the ground and tighten the wheels to the torque specified by the manufacturer (using a torque wrench)
9) Check once again that the tyres do not come into contact with any mechanical or bodywork element by steering left and right and shifting the car a few meters.
10) Check the tightness of the spacers and wheels after running in for about 100km.
What to always check to avoid risks?
• Always check the correct tyre pressure
• Check that the fastening bolts are tightened according to the table provided by the manufacturer.
• Check that the tyres do not rub against the bodywork
• Check tyre wear from time to time to make sure toe and camber are correct.
• Check the state of nuts and bolts once or twice a year and always at each tyre change, replacing them if necessary
• If involved in an accident, replace the wheel spacers immediately
• Strictly follow the vehicle manufacturer's recommendations should repairs be needed

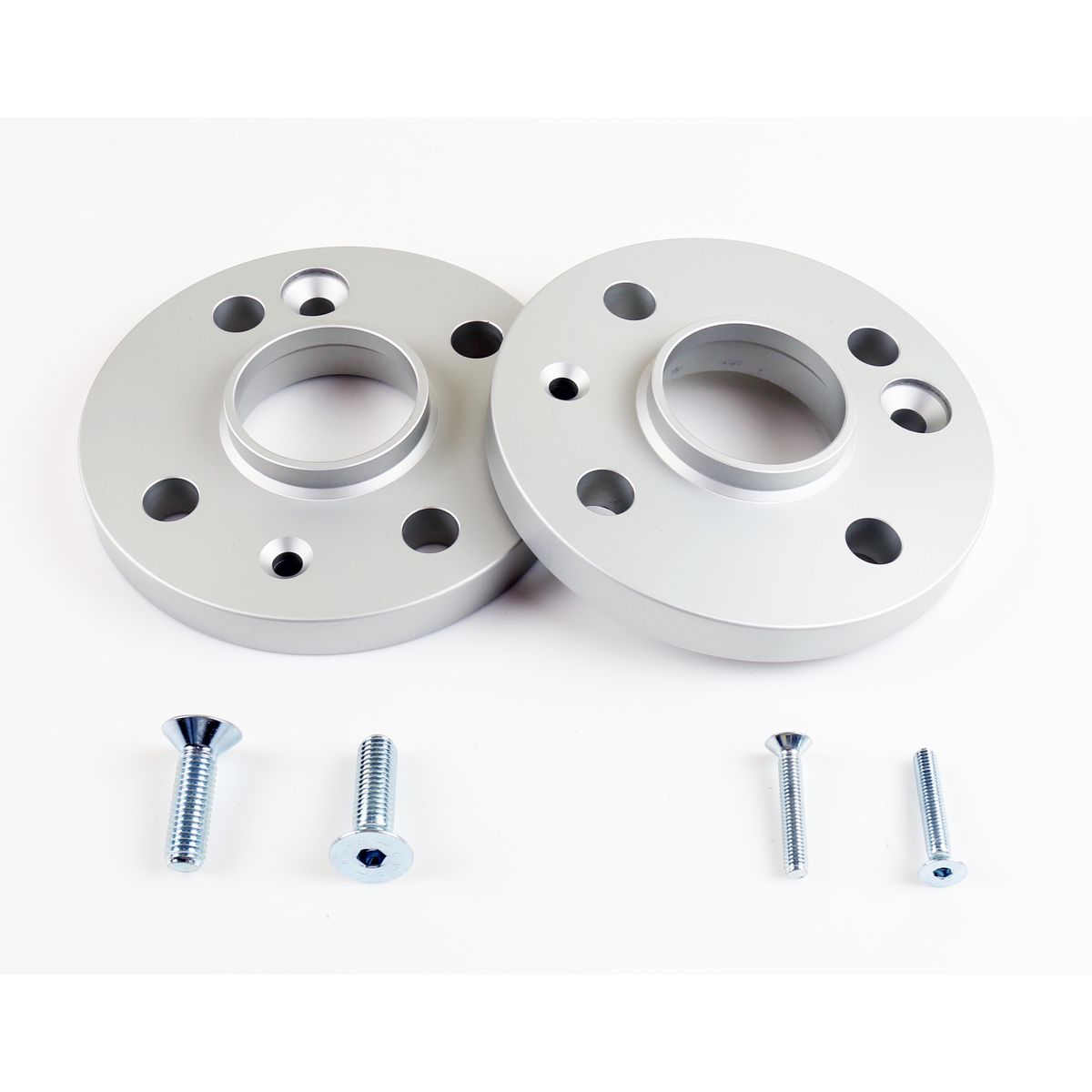

These Athena spacers have a thickness of 12 mm, a wheelbase of 108 mm and a hub diameter of 65 mm. They also have 4 holes.
Bullet points
Made from a bar of top quality aluminium
Perfect clearance to enhance driving feeling
Better responsiveness and optimal handling when cornering
Technical features
| Finishing | Anodized |
| Fitted Into Rims | OEM |
| Hub C to C | 4X108 |
| Hub diameter | 65.00 |
| Net Weight (Kg) | 1.05 |
| Thickness (mm) | 12.00 |
| Type | Spacers without bolts |
| Vehicle spacer | CITROEN BX Type XB 01/1982 - 12/1994 - rear CITROEN C2 Type J 08/2003 - 12/2010 - front CITROEN C2 Type J 08/2003 - 12/2010 - rear CITROEN C3 Pluriel Type H 08/2003 - 12/2009 - front CITROEN C3 Pluriel Type H 08/2003 - 12/2009 - rear CITROEN C3 Type F 01/2002 - 07/2003 - front CITROEN C3 Type F 01/2002 - 07/2003 - rear CITROEN C3 Type F 08/2003 - 12/2009 - front CITROEN C3 Type F 08/2003 - 12/2009 - rear CITROEN C4 I Picasso Type U 11/2006 - 02/2013 - front CITROEN C4 I Picasso Type U 11/2006 - 02/2013 - rear CITROEN Saxo Type S0 /S1 02/1996 - 04/2004 - front CITROEN Saxo Type S0 /S1 02/1996 - 04/2004 - rear CITROEN Visa GTI 06/1986 - 03/1991 - front CITROEN Visa GTI 06/1986 - 03/1991 - rear CITROEN Xantia Type X 01/1993 - 12/2001 - front CITROEN Xantia Type X 01/1993 - 12/2001 - rear CITROEN Xsara Type N 01/1997 - 12/2005 - front CITROEN Xsara Type N 01/1997 - 12/2005 - rear CITROEN ZX Type N2 01/1991 - 12/1998 - front CITROEN ZX Type N2 01/1991 - 12/1998 - rear PEUGEOT 1007 Type K 01/2004 - 12/2009 - front PEUGEOT 1007 Type K 01/2004 - 12/2009 - rear PEUGEOT 106 Type 1 08/2003 - 12/2005 - front PEUGEOT 106 Type 1 08/2003 - 12/2005 - rear PEUGEOT 106 Type 1A / 1C 01/1991 - 12/2003 - front PEUGEOT 106 Type 1A / 1C 01/1991 - 12/2003 - rear PEUGEOT 205 Type 741A/C 02/1983 - 09/1998 - front PEUGEOT 205 Type 741A/C 02/1983 - 09/1998 - rear PEUGEOT 206 Type 2 01/1998 - 07/2003 - front PEUGEOT 206 Type 2 01/1998 - 07/2003 - rear PEUGEOT 207 CC Type WD 02/2007 - 12/2015 - front PEUGEOT 207 CC Type WD 02/2007 - 12/2015 - rear PEUGEOT 207 Type W 01/2006 - 12/2015 - front PEUGEOT 207 Type W 01/2006 - 12/2015 - rear PEUGEOT 3008 Type QU 05/2009 - 12/2015 - front PEUGEOT 3008 Type QU 05/2009 - 12/2015 - rear PEUGEOT 305 Type 581M 10/1982 - 07/1990 - front PEUGEOT 305 Type 581M 10/1982 - 07/1990 - rear PEUGEOT 306 Type 7B/N3/N5/Cabriolet 05/1993 - 06/2001 - front PEUGEOT 306 Type 7B/N3/N5/Cabriolet 05/1993 - 06/2001 - rear PEUGEOT 307 / CC Type 3 08/2003 - 12/2008 - front PEUGEOT 307 / CC Type 3 08/2003 - 12/2008 - rear PEUGEOT 308 I Type 4 (*key note 6) 11/2007 - 08/2013 - front PEUGEOT 308 I Type 4 (*key note 6) 11/2007 - 08/2013 - rear PEUGEOT 309 Type 10C/10A 10/1985 - 12/1993 - front PEUGEOT 309 Type 10C/10A 10/1985 - 12/1993 - rear PEUGEOT 405 Type 15B 01/1987 - 10/1996 - front PEUGEOT 405 Type 15B 01/1987 - 10/1996 - rear PEUGEOT 406 Type 8B 08/1996 - 10/2003 - front PEUGEOT 406 Type 8B 08/1996 - 10/2003 - rear PEUGEOT 5008 10/2009 - 12/2018 - front PEUGEOT 5008 10/2009 - 12/2018 - rear PEUGEOT Partner Type G 01/1992 - 07/2003 - front PEUGEOT Partner Type G 01/1992 - 07/2003 - rear PEUGEOT Partner Type G 08/2003 - 04/2008 - front PEUGEOT Partner Type G 08/2003 - 04/2008 - rear CITROEN Berlingo Type 7 06/2008 - 12/2018 - front CITROEN Berlingo Type 7 06/2008 - 12/2018 - rear CITROEN C3 Picasso Type SH 01/2009 - 12/2017 - front CITROEN C3 Picasso Type SH 01/2009 - 12/2017 - rear CITROEN C3 Type S 01/2009 - 12/2017 - front CITROEN C3 Type S 01/2009 - 12/2017 - rear CITROEN C4 Aircross Type II 01/2018 - - front CITROEN C4 Aircross Type II 01/2018 - - rear CITROEN C4 Type PSA - B 01/2020 - - front CITROEN C4 Type PSA - B 01/2020 - - rear CITROEN DS3 Crossback Type U 01/2018 - - front CITROEN DS3 Crossback Type U 01/2018 - - rear CITROEN DS3 Type S 01/2010 - 12/2019 - front CITROEN DS3 Type S 01/2010 - 12/2019 - rear CITROEN e-C4 Type PSA - B 01/2020 - - front CITROEN e-C4 Type PSA - B 01/2020 - - rear JEEP Avenger Type J2 01/2023 - - front JEEP Avenger Type J2 01/2023 - - rear LOTUS Omega Type Omega A 01/1991 - - front LOTUS Omega Type Omega A 01/1991 - - rear OPEL Corsa F Type U 01/2019 - - front OPEL Corsa F Type U 01/2019 - - rear OPEL Mokka Type U 01/2021 - - front OPEL Mokka Type U 01/2021 - - rear PEUGEOT 2008 II Type U 01/2019 - - front PEUGEOT 2008 II Type U 01/2019 - - rear PEUGEOT 208 II Type UB - UP - UW- UJ 01/2019 - - front PEUGEOT 208 II Type UB - UP - UW- UJ 01/2019 - - rear PEUGEOT 208 I Type C 01/2012 - 12/2018 - front PEUGEOT 208 I Type C 01/2012 - 12/2018 - rear PEUGEOT e 2008 Type U 01/2019 - - front PEUGEOT e 2008 Type U 01/2019 - - rear CITROEN C3 Aircross Type II 01/2017 - - front CITROEN C3 Aircross Type II 01/2017 - - rear CITROEN C3 Type SX 01/2018 - - front CITROEN C3 Type SX 01/2018 - - rear CITROEN C4 Cactus 08/2014 - - front CITROEN C4 Cactus 08/2014 - - rear CITROEN C4 II Type N 01/2010 - - front CITROEN C4 II Type N 01/2010 - - rear CITROEN C4 I Type L 01/2004 - 11/2010 - front CITROEN C4 I Type L 01/2004 - 11/2010 - rear CITROEN C5 Type D 01/2000 - 07/2003 - front CITROEN C5 Type D 01/2000 - 07/2003 - rear CITROEN C5 Type R (RC) 08/2003 - 05/2008 - front CITROEN C5 Type R (RC) 08/2003 - 05/2008 - rear CITROEN DS4 Type N 01/2011 - - front CITROEN DS4 Type N 01/2011 - - rear CITROEN DS5 Type K 01/2011 - - front CITROEN DS5 Type K 01/2011 - - rear OPEL Crossland X Type P7 MONOCAB C 01/2017 - - front OPEL Crossland X Type P7 MONOCAB C 01/2017 - - rear PEUGEOT 2008 I Type C 01/2012 - 12/2018 - front PEUGEOT 2008 I Type C 01/2012 - 12/2018 - rear PEUGEOT 206 / CC Type 08/2001 - - front PEUGEOT 206 / CC Type 08/2001 - - rear PEUGEOT 206 Plus Type 2 03/2009 - - front PEUGEOT 206 Plus Type 2 03/2009 - - rear PEUGEOT e 208 Type UB - UP - UW - UJ 01/2020 - - front PEUGEOT e 208 Type UB - UP - UW - UJ 01/2020 - - rear PEUGEOT Partner Type 7 Tepee / Ranch 01/2008 - - front CITROEN AX GTI Type ZA 01/1991 - 12/1998 - front ALFA ROMEO Junior Type 966 01/2024 - - front ALFA ROMEO Junior Type 966 01/2024 - - rear FIAT 600e Type 365 ZK02 Eletric 01/2023 - - front FIAT 600e Type 365 ZK02 Eletric 01/2023 - - rear FIAT 600 Type 364 HN09 Hybrid 01/2023 - - front FIAT 600 Type 364 HN09 Hybrid 01/2023 - - rear FIAT Topolino Type Z2CA Eletric 01/2023 - - front FIAT Topolino Type Z2CA Eletric 01/2023 - - rear LANCIA Ypsilon Type L21 01/2024 - - front LANCIA Ypsilon Type L21 01/2024 - - rear PEUGEOT Partner Type 7 Tepee / Ranch 01/2008 - - rear CITROEN AX GTI Type ZA 01/1991 - 12/1998 - rear CITROEN Berlingo Type G 01/1997 - 03/2008 - front CITROEN Berlingo Type G 01/1997 - 03/2008 - rear CITROEN Berlingo Type M 01/1996 - 07/2003 - front CITROEN Berlingo Type M 01/1996 - 07/2003 - rear CITROEN BX Type XB 01/1982 - 12/1994 - front |
- Net Weight (Kg): 0.27
- Hub diameter: 66.45
- Thickness (mm): 16.00
- Type: Spacers without bolts
- Hub C to C: 5X112
- Hub diameter: 66.45
- Thickness (mm): 20.00
- Type: Spacers without bolts
- Hub C to C: 5X112
- Net Weight (Kg): 0.69
- Hub diameter: 66.45
- Thickness (mm): 16.00
- Type: Spacers without bolts
- Hub C to C: 5X112
- Net Weight (Kg): 0.31
- Hub diameter: 66.45
- Thickness (mm): 12.00
- Type: Spacers without bolts
- Hub C to C: 5X112
