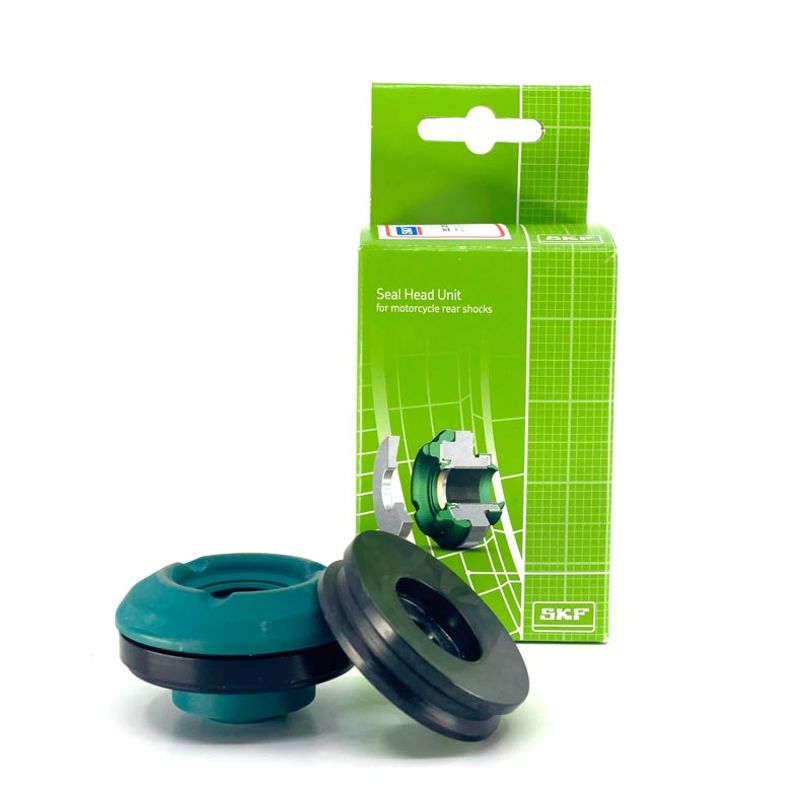

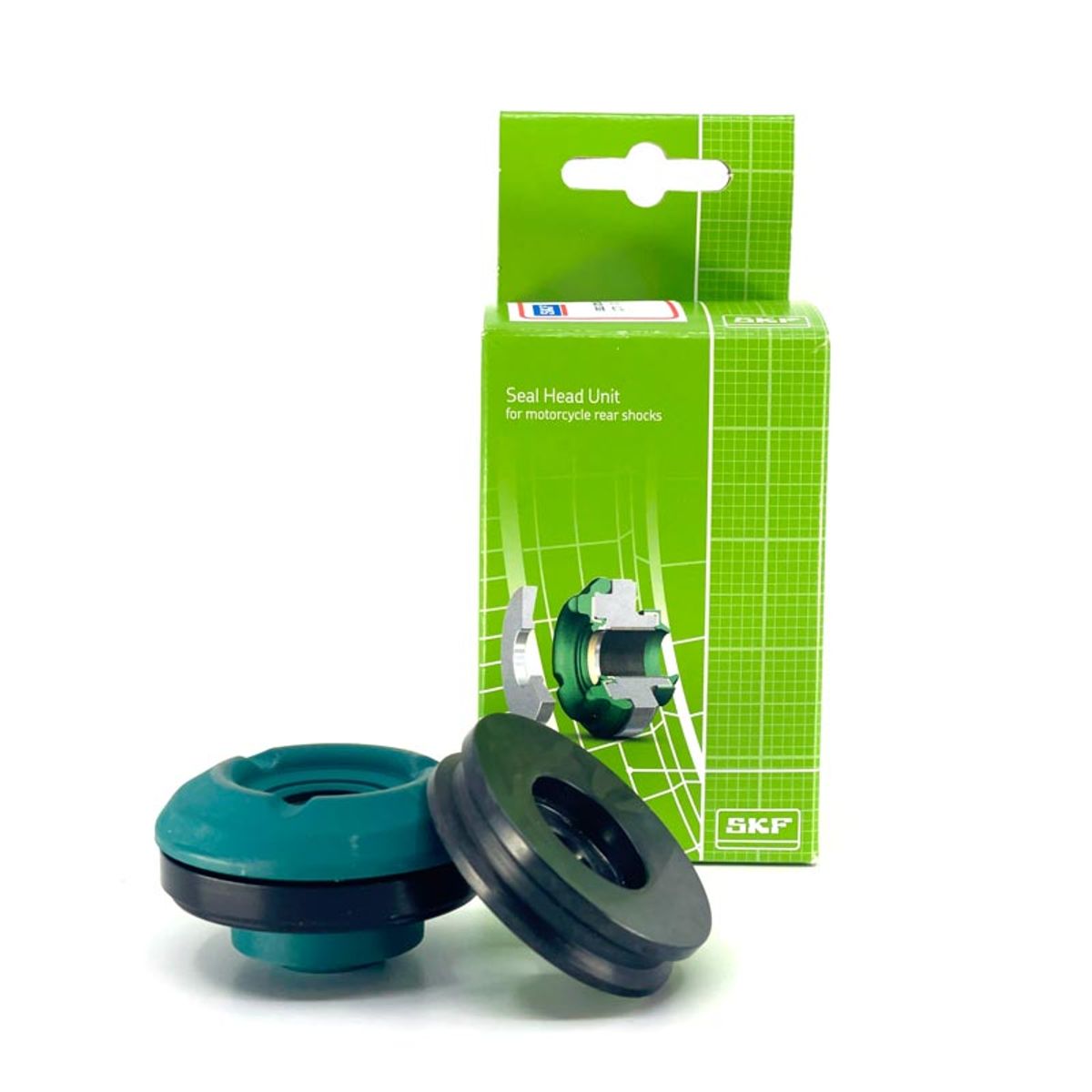

New Skf Shock Seal Head Unit Kayaba - Shaft 16mm - Piston 50 Mm
Description
The innovative SKF shock seal head unit for the rear shock absorber is designed to enhance suspension performance and increase durability over time.This product represents a unique and compact solution to maximize stroke and minimize the shock absorber length. The traditional design has been revolutionized by integrating multiple components into a much simpler kit, a one-part solution that facilitates logistic efforts as well.The new static outer diameter seal design allows easier assembly and removal.The material used is a specially developed NBR compound suitable for temperatures of -40°C to +140°C, ensuring robust sealing over a wide temperature range. The material itself is developed to improve service life and performance.The plastic back-up ring is a key element that reduces friction and wear, especially under high operating pressures. This helps preserve the overall system's durability.Completing the package, the all-new rebound bumper and mating plate with proprietary design provide smoother kick back and extended operational life, ensuring better feel and comfort when riding.Optimize your riding experience with the new SKF shock seal head kit that exceeds expectations, delivering unmatched comfort, durability, and performance.
Bullet points
Maximized rear shock stroke
Easier assembly
Robust sealing over a wide temperature range
Reduced friction
Longer service life
Technical features
| Net Weight (Kg) | 0.20 |
| Piston diameter (mm) | 50.00 |
| Rod Diameter (mm) | 16.00 |
- Manufacturer: ATHENA
- Net Weight (Kg): 0.06
- Oil Seal Total Height (mm): 11.00
- Oil Seal External Diameter (mm): 54.00
- Net Weight (Kg): 0.40
- Manufacturer: SKF
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 9.00
- Dust Seal Total Height (mm): 4.90
- Manufacturer: ATHENA
- Net Weight (Kg): 0.06
- Oil Seal Total Height (mm): 10.50
- Oil Seal External Diameter (mm): 53.00
- Manufacturer: ATHENA
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 10.50
- Oil Seal External Diameter (mm): 52.00
- Manufacturer: ATHENA
- Net Weight (Kg): 0.05
- Oil Seal Total Height (mm): 9.50
- Oil Seal External Diameter (mm): 53.00
- Manufacturer: ATHENA
- Net Weight (Kg): 0.06
- Oil Seal Total Height (mm): 11.00
- Oil Seal External Diameter (mm): 50.00
