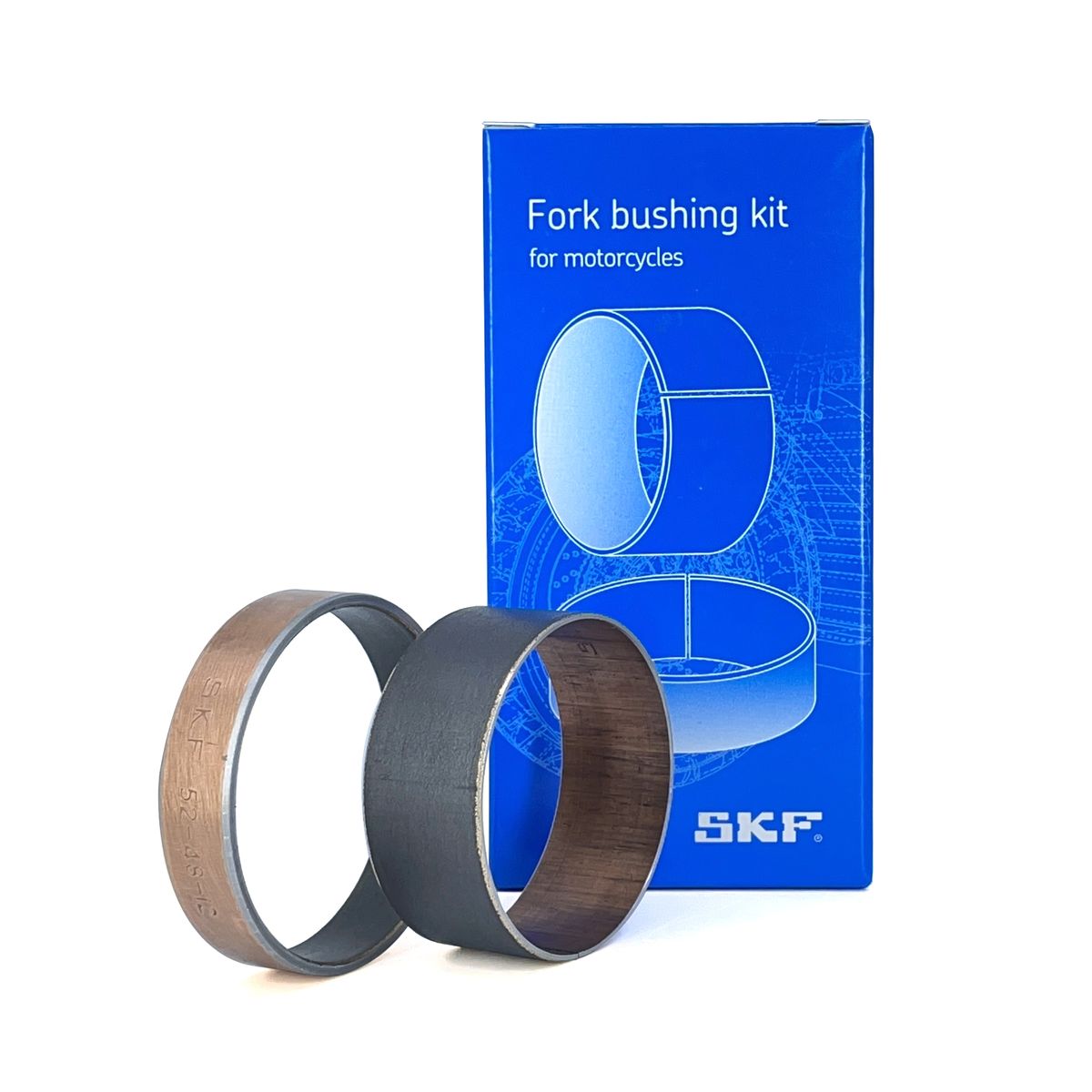

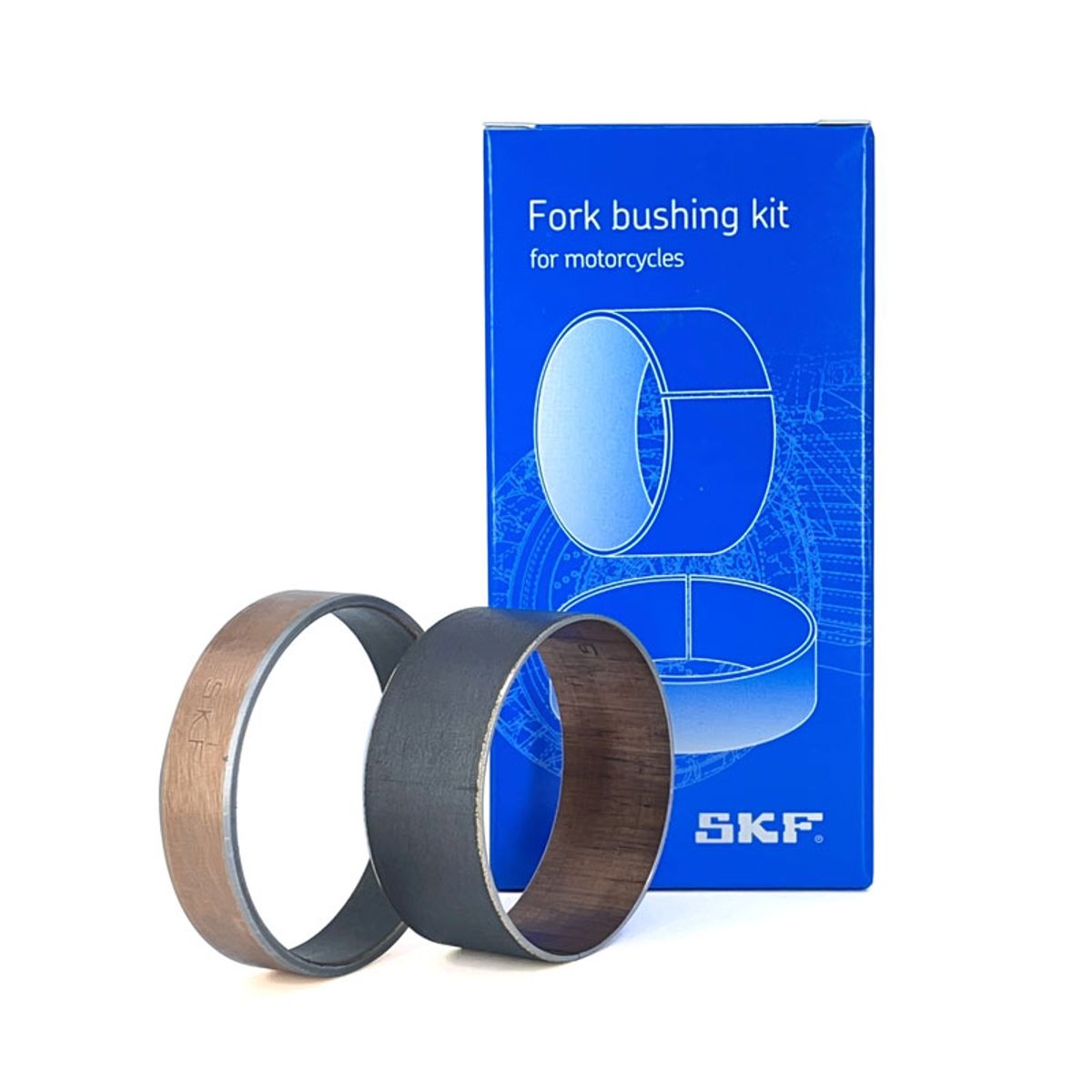

Fork Bushings Kit 2 Pieces - 1 Inner 1 Outer Showa Sachs 43 Type 1
Description

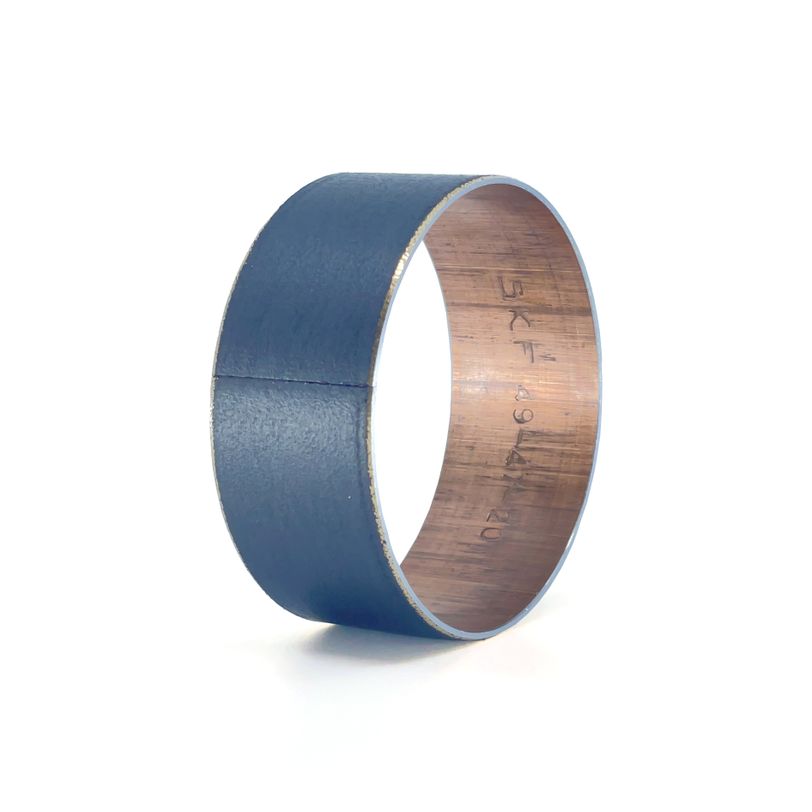

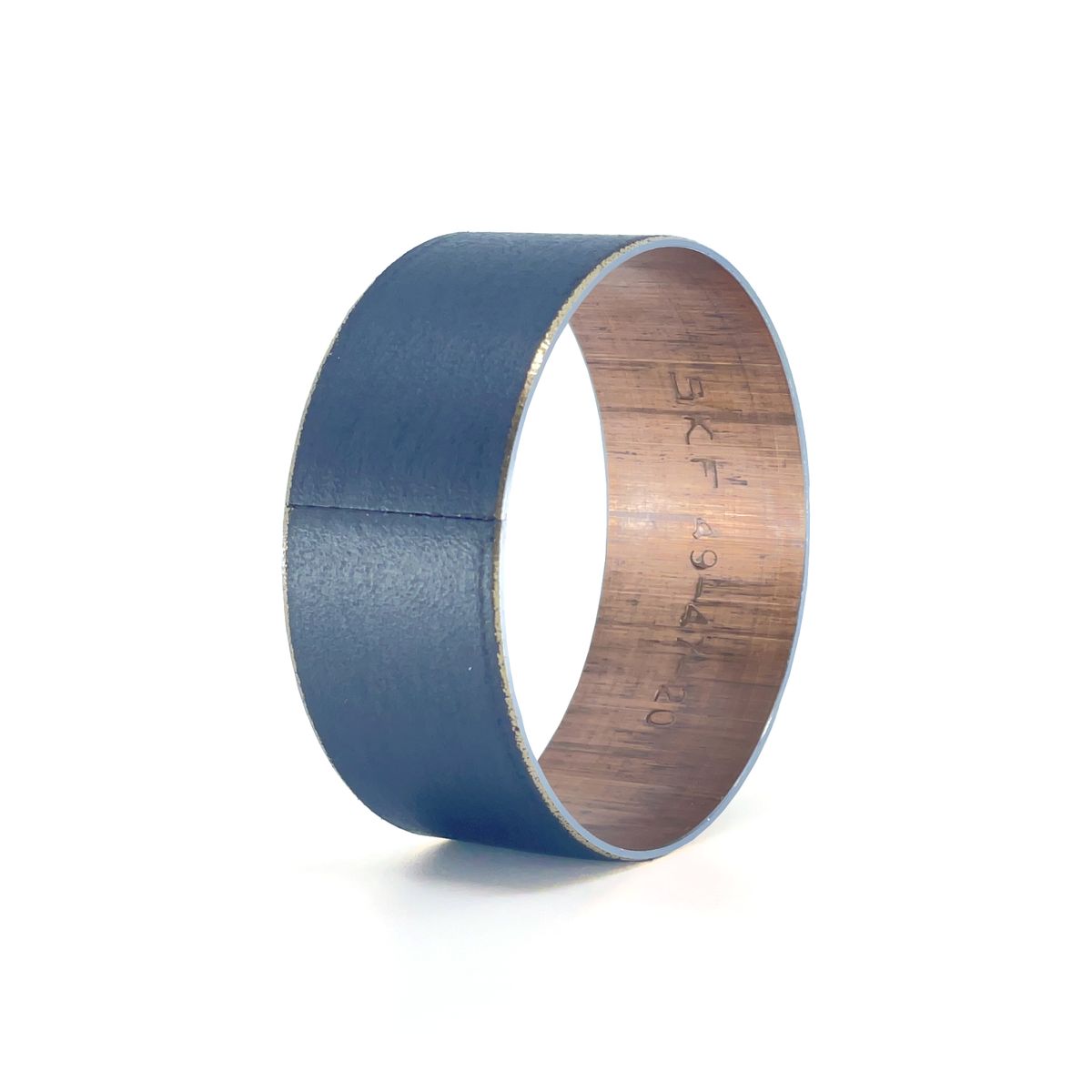

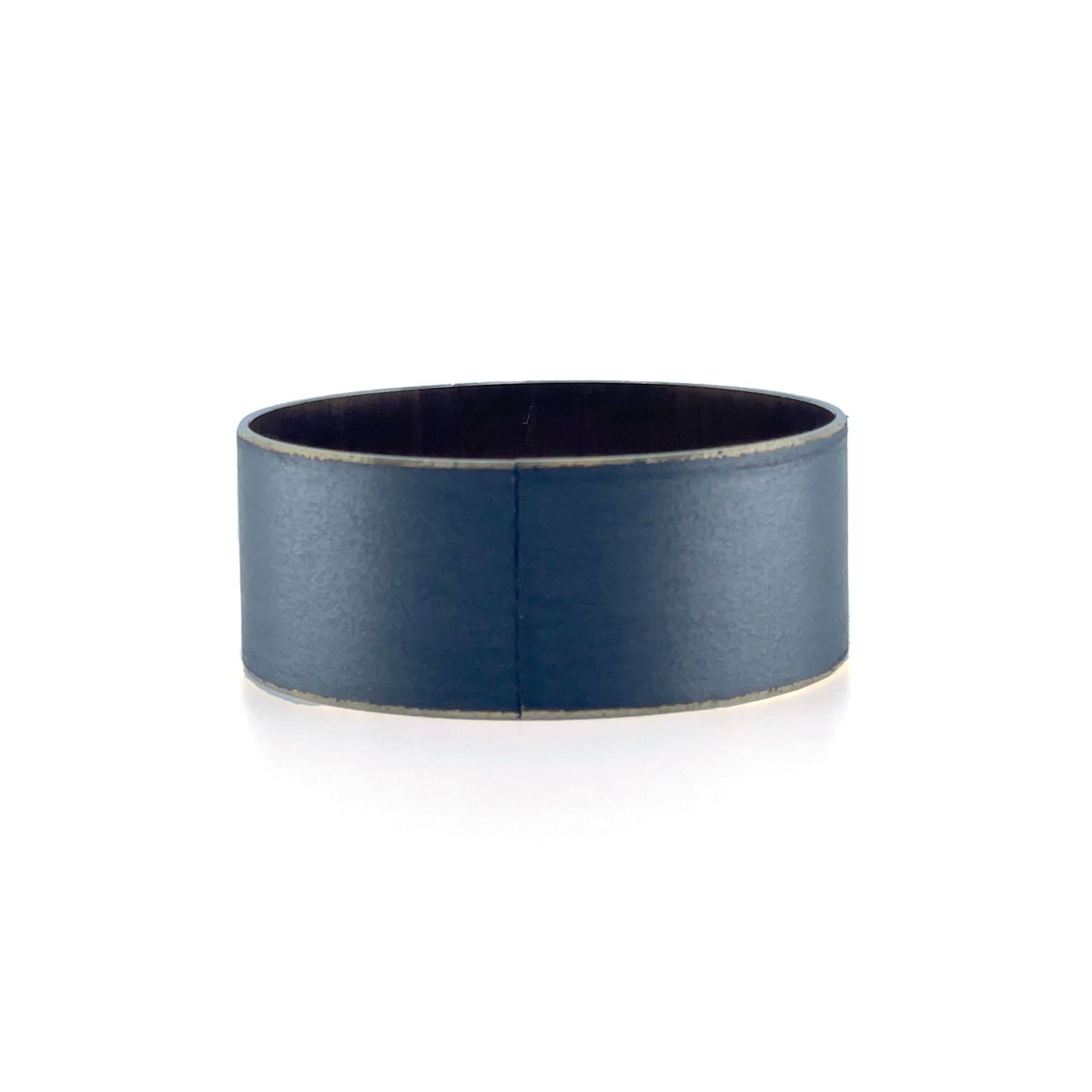

- 1 teflon inside bushing (43X47X15)

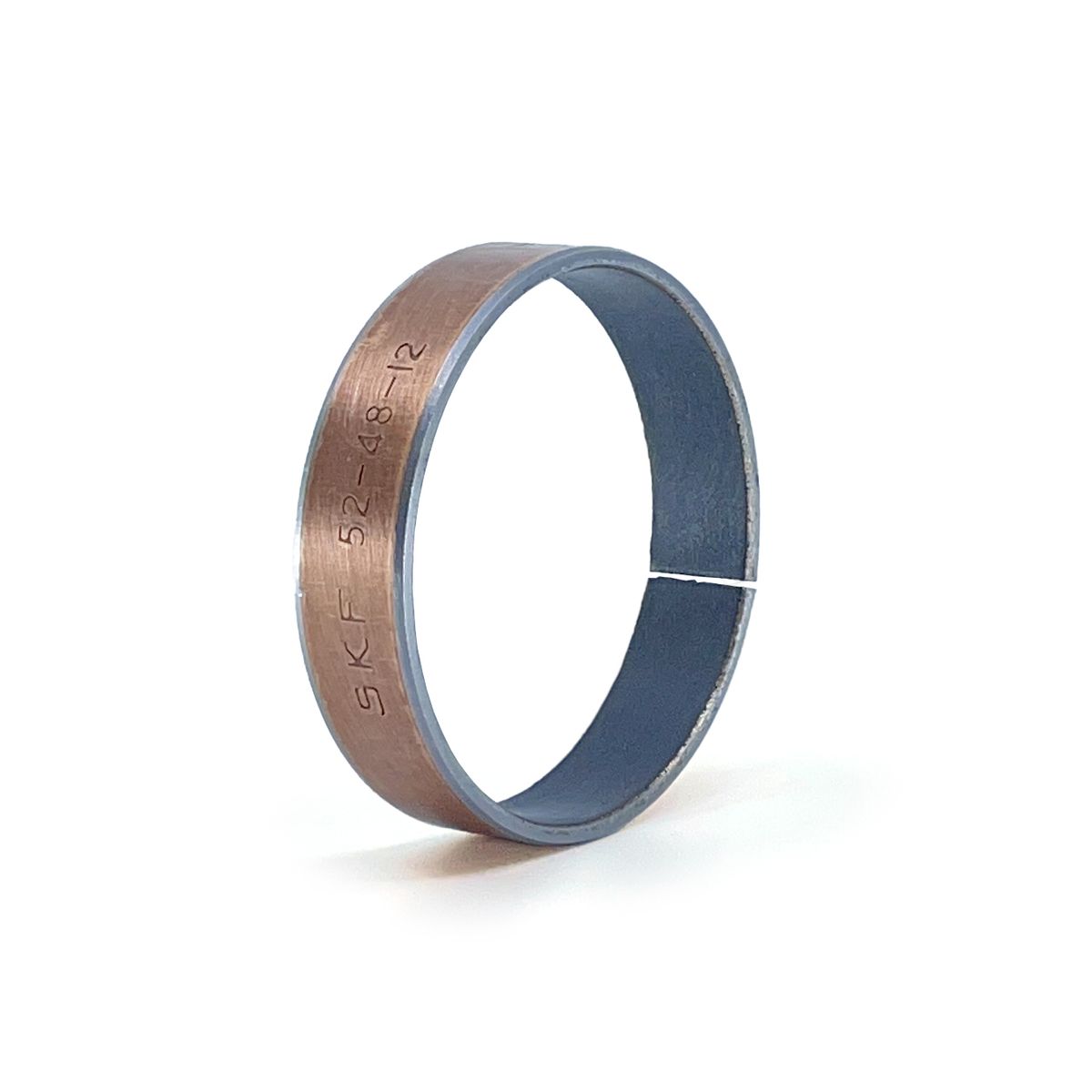

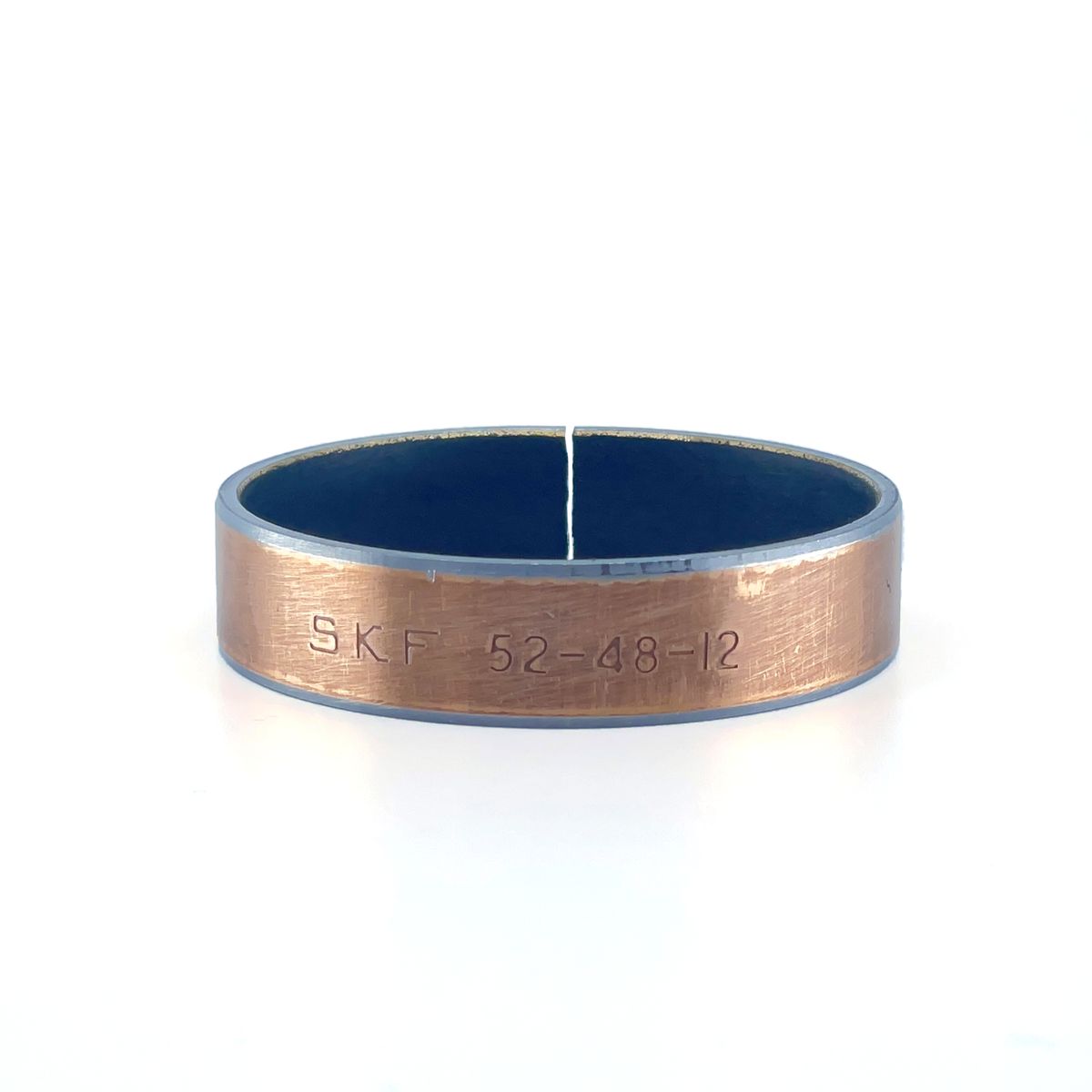

- 1 teflon outside bushing (44X42X20)
Fork bushing for motorcycle.
SKF PTFE composite fork bushings is the maintenancefree solution in demanding applications such as front fork motorcycle suspensions.
SKF fork bushing combine the mechanical strength of steel with the low friction of a PTFE-based self-lubricating sliding layer. The intermediate thin bronze layer creates a strong bond between the backing and sliding surfaces, and improves the dissipation of heat generated during operation. To protect the bearings from corrosion, the steel backing is copper-plated.
The PTFE-based sliding surface permits smooth, low-friction operation for a plush riding feeling. During a short run phase, there will be some transfer of PTFE material from the sliding contact surface to the counter face. After transfer, the characteristic low friction and wear properties of these bushings will be achieved.
Benefits of the fork bushings are:
• maintenance-free operation
• low frictional properties under side load
• high load carrying capacity
• stability at wide operating temperatures
• small operating clearance for improved guidance
• dimensions marking for quick product identificatio
Bullet points
Maintenance-free operation
Low frictional properties under side load
High load carrying capacity
Stability at wide operating temperatures
Small operating clearance for improved guidance
Technical features
| External Teflon Bushing Dimensions (mm) | 42X44X20 |
| Fork brand | Showa ZF Sachs |
| Fork diameter (mm) | 43.00 |
| Internal Teflon Bushing Dimensions (mm) | 43X47X15 |
| Net Weight (Kg) | 0.07 |
