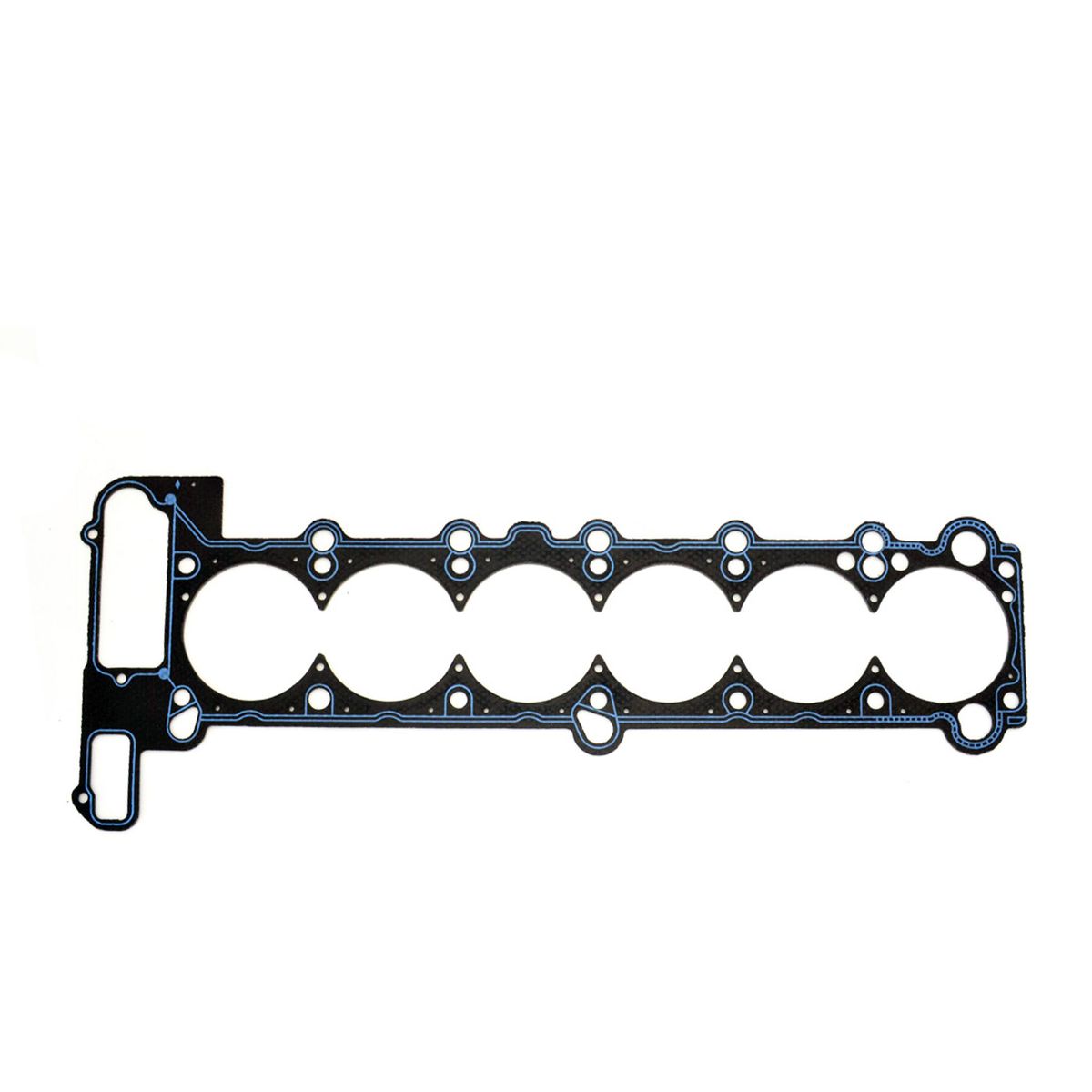

Cut Ring Racing Head Gasket thickness 2 mm Ø 84,5 mm without Rings
Race Use Only Product – Not intended for street use – Please check details on the “Race use only” footer’s section
Description
The Racing Athena head gaskets are the result of constant research and development to meet the steadily increasing demands for higher performance, maximum sealing, and resistance to the extreme thermal and mechanical stress typical of Motorsports and Drag racing.
The gasket body is made of Motorgasket, a reinforced material developed by the Athena R&D Department consisting of a steel core covered with two layers of asbestos-free aramid fibre: this allows excellent thermal and mechanical resistance without penalizing its ability to adapt perfectly to cylinder and head support surfaces.
To ensure maximum sealing in all conditions, a silicone bead is also applied to critical areas such as oil and coolant passages.
Minimum purchasable lot 10 pieces.
Bullet points
Use of high quality materials approved by the manufacturers
Silicon-based beading on critical areas
Excellent mechanical and thermal resistance
Technical features
| Net Weight (Kg) | 0.50 |
| Thickness (mm) | 2.00 |
OEM Codes
| Partner | OEM code |
|---|---|
| BMW | 11121726619 |
| BMW | 11121726617 |
Downloads
| General Installation Notes for Auto Racing Gaskets Athena | Download |
