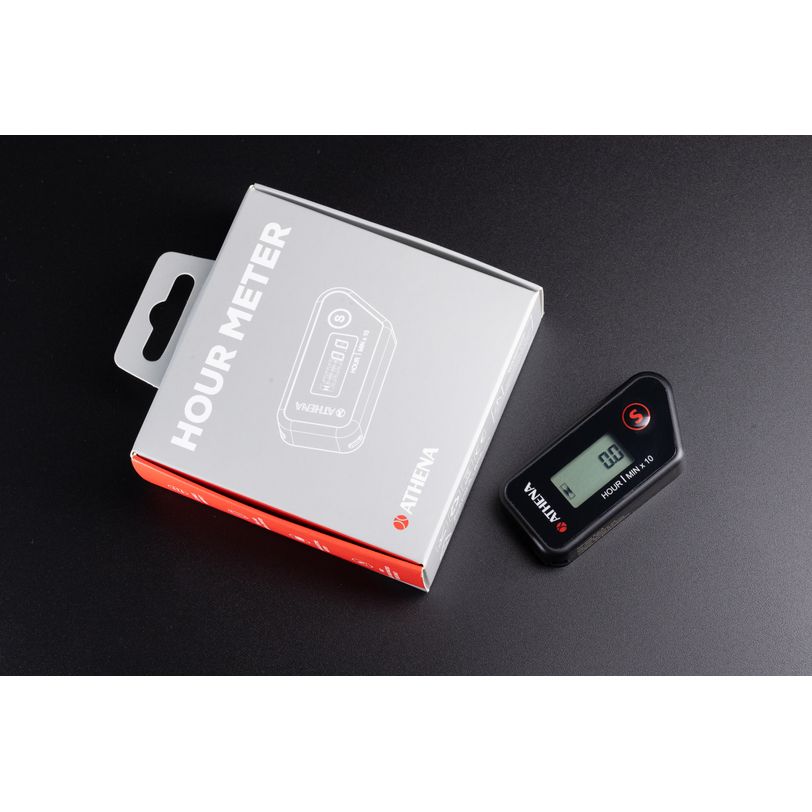

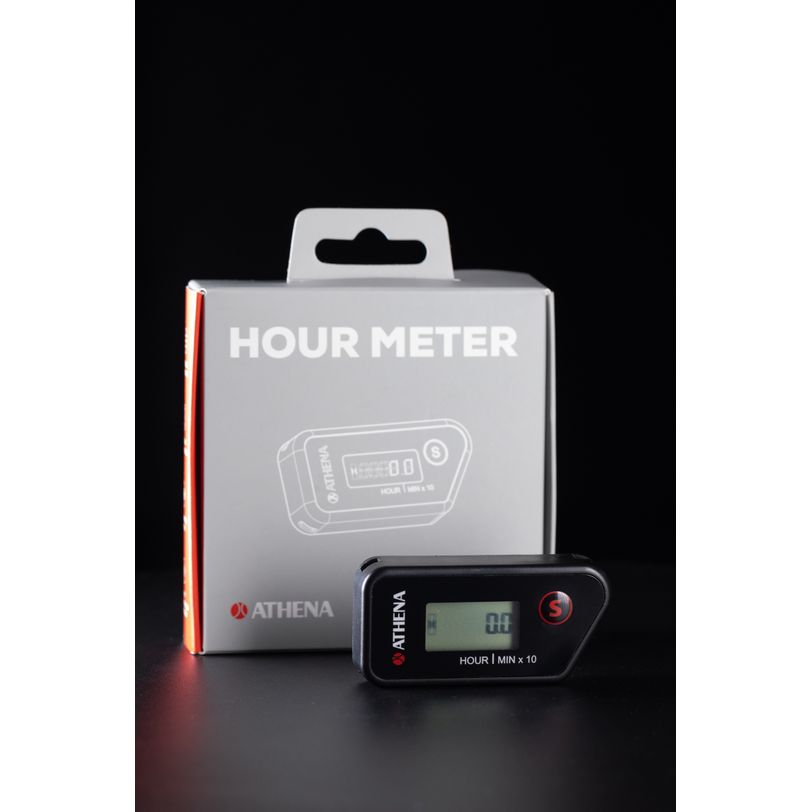

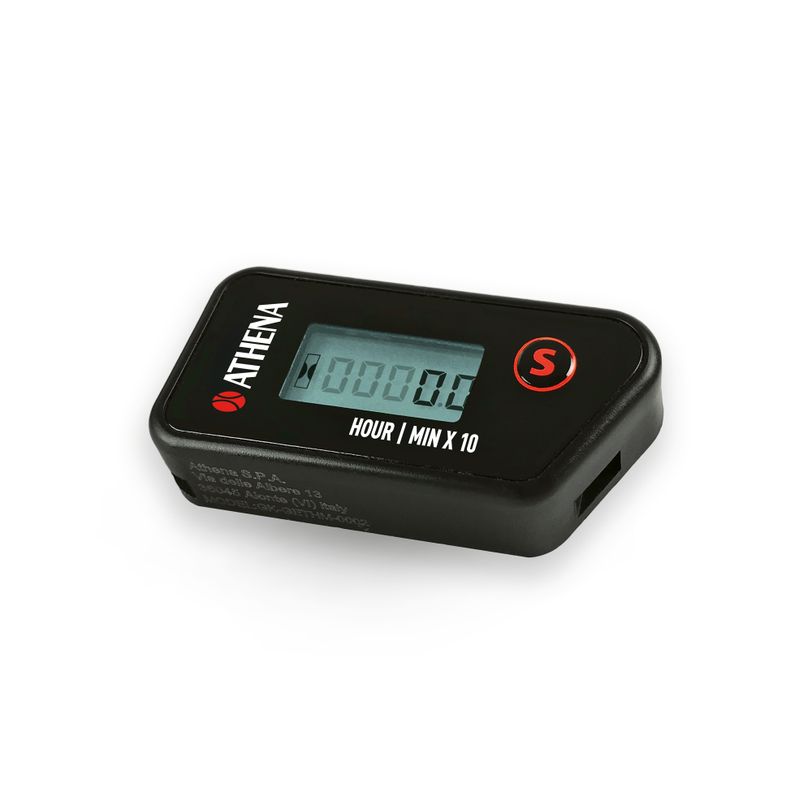

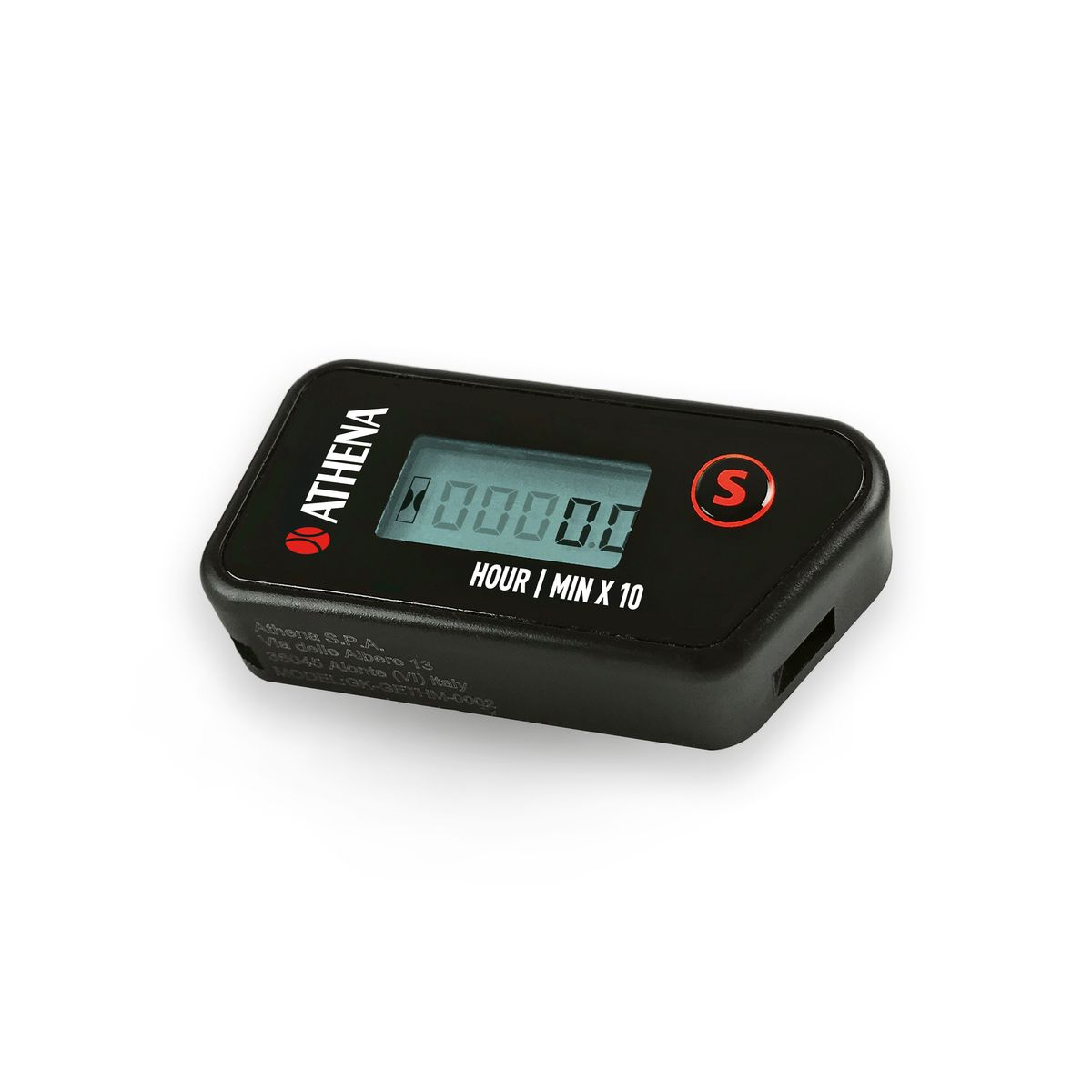

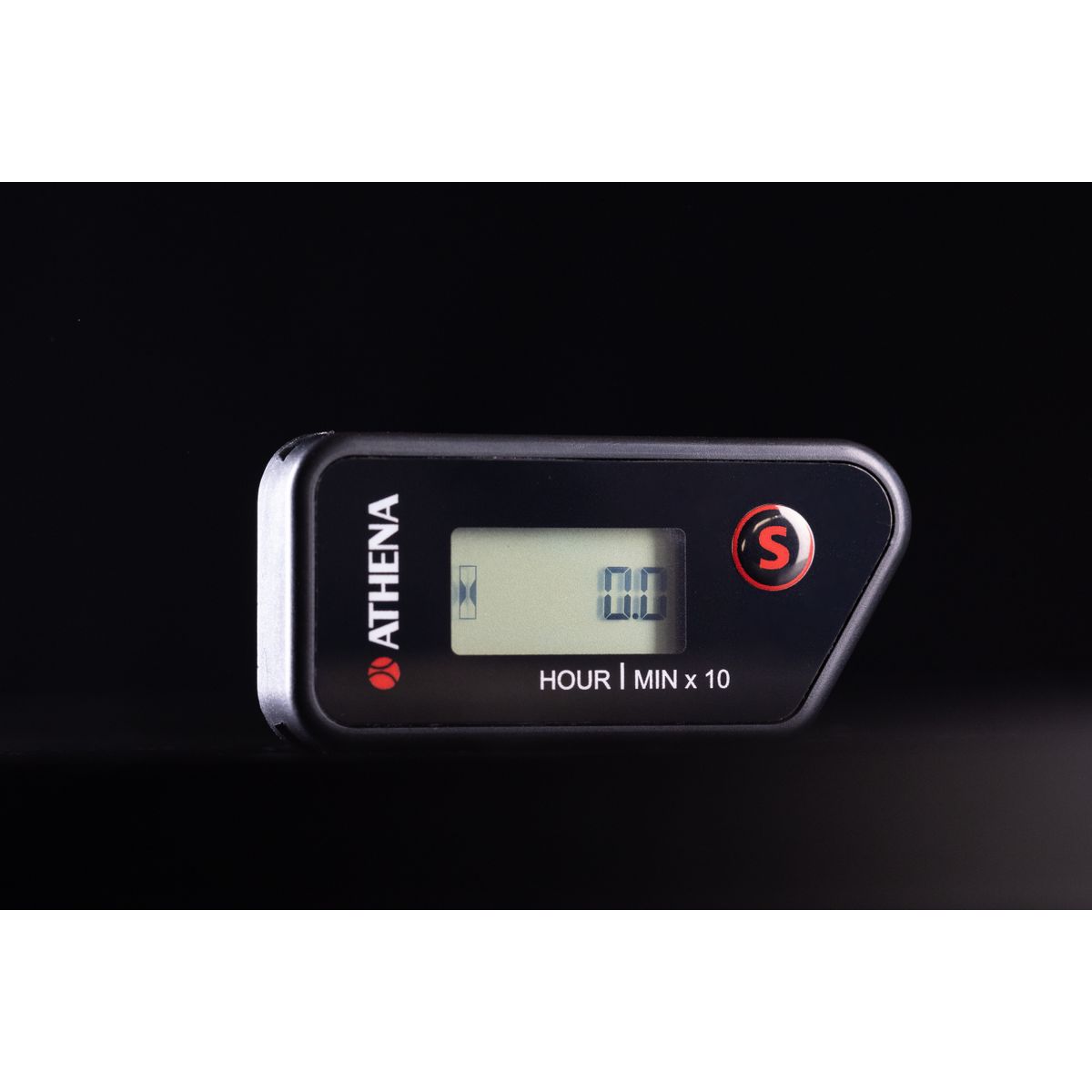

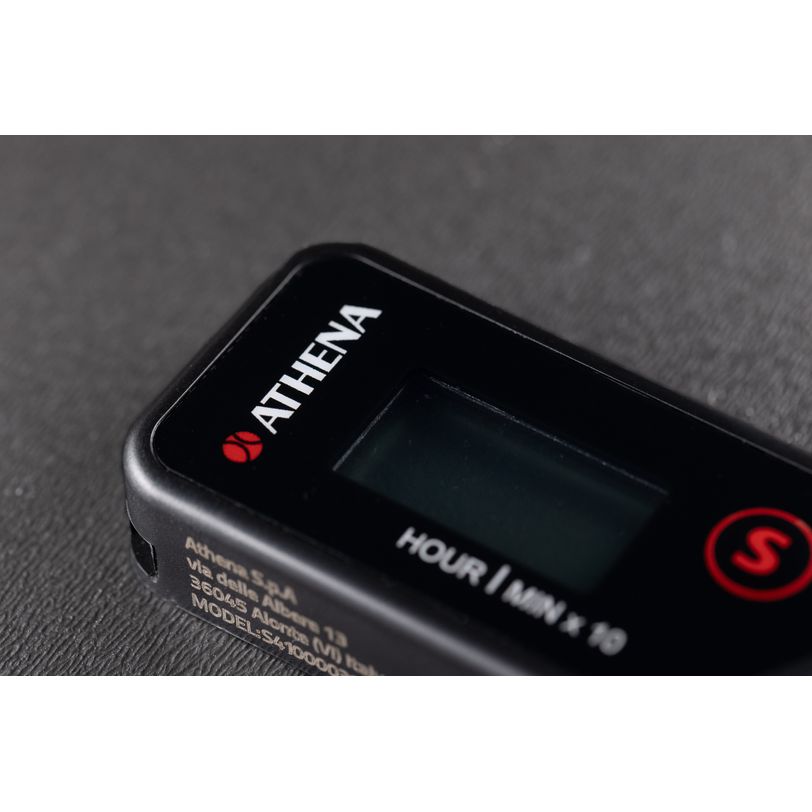

Wireless Vibration Sensitive Hour Meter
Description
Enhance your motorcycle adventures with the new HOURMETER ATHENA.
It accurately measures engine operating hours, providing detailed information for maintenance scheduling and performance monitoring.
Easy to install thanks to the included adhesive, the device interprets and distinguishes the vibrations on the frame, detecting engine operation precisely: with two separate counters for partial and total engine operating hours, it offers great versatility for monitoring your motorcycle usage.
Hour Meter features the Lock Mode function that allows locking the count, particularly useful during your motorcycle's transport phases: additionally, the battery is integrated and ensures operation for six years*.
Maximize performance and enjoy every moment in any conditions of use thanks to the shockproof and waterproof design, even in the most extreme applications.
*duration calculated with average motorcycle use in Motocross context.
Bullet points
Resettable wireless device
Settable sensitivity
Partial and total counting possibilities
Lock Mode to prevent accidental activation
Built in impact-resistant plastic
Technical features
| Battery Life | 6 years |
| display | LCD |
| Ip Standard Level | IP67 |
| Programmable Through App | No |
| Replaceable Battery | No |
Downloads
| Hour Meter_Technical Sheet_ITA | Download | |
| Hour Meter_Technical Sheet_ENG | Download | |
| Hour Meter_Technical Sheet_ES | Download | |
| Hour Meter_Technical Sheet_FR | Download | |
| Athena Hour Meter User Manual | Download | |
| Athena Hourmeter CE Declaration of Conformity - IT, EN, FR, EL, ES, DE | Download | |
| EU Declaration of Conformity – Regulation (EU) 2023/1542 | Download |
