Vespa Small Frame Complete Gasket Kit with O-rings (Engine Oil Seals not included)
High sealing and reliability without the need of extra sealants
Cutting-edge materials to ensure perfect resistance to pressure and mechanical and thermal stresses
Premium Unified gasket kit perfectly compatible with the Small Frame Vespa 50, 90 and 125 applications specified
Description

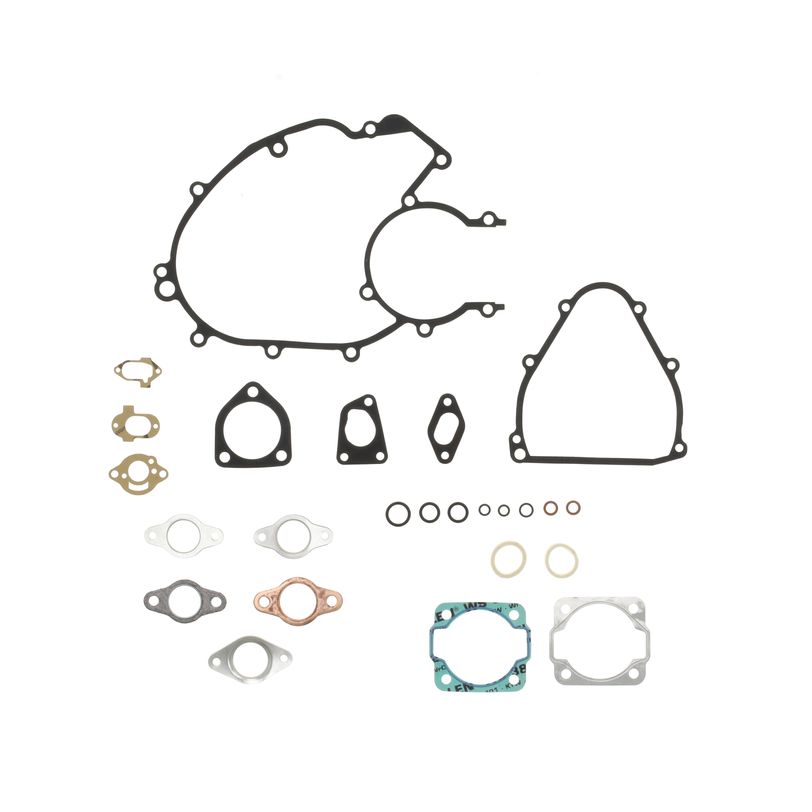

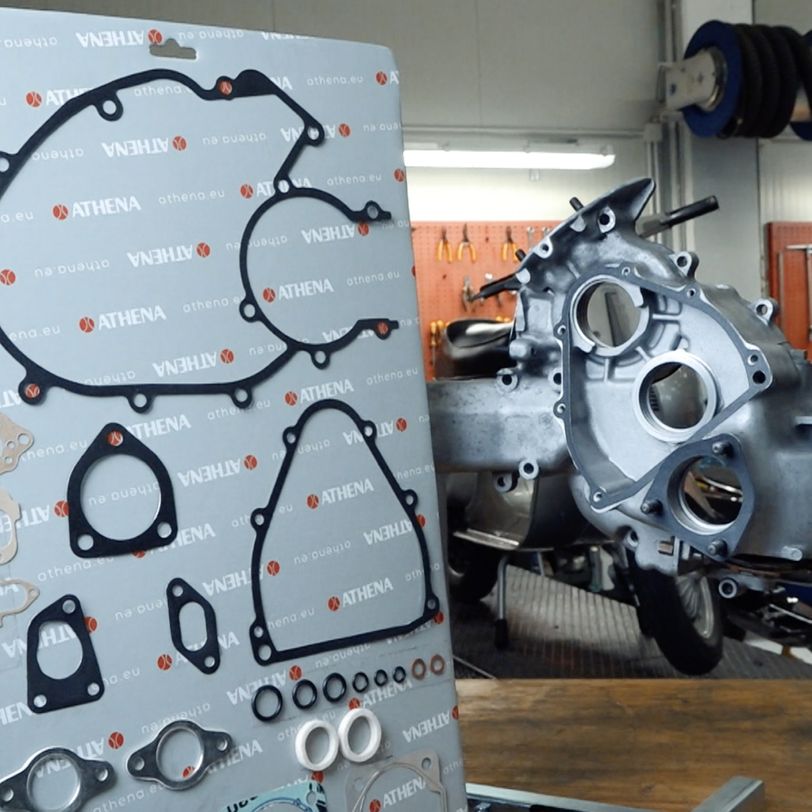

This kit includes all the gaskets for a complete engine overhaul. Athena offers the widest range of replacement gaskets available on the market, with over 40 years of experience in the sector, directly supplying the world's most important motorcycle manufacturers. Athena's gasket kits are based on solid know-how, continuous technological development carried out by its in house team of engineers and designers, and Italian manufacture that precisely follows the strict parameters required by the OEMs.
BYE BYE SILICONE
Unlike classic asbestos-free gaskets on the market,
this Athena gasket kit do not require extra sealants to guarantee a perfect seal.
Simply remove the old gaskets and install the new Athena kit: you will not have to clean silicone residues from the crankcase anymore nor wait hours after applying a sealant.
UNIQUE ON THE MARKET

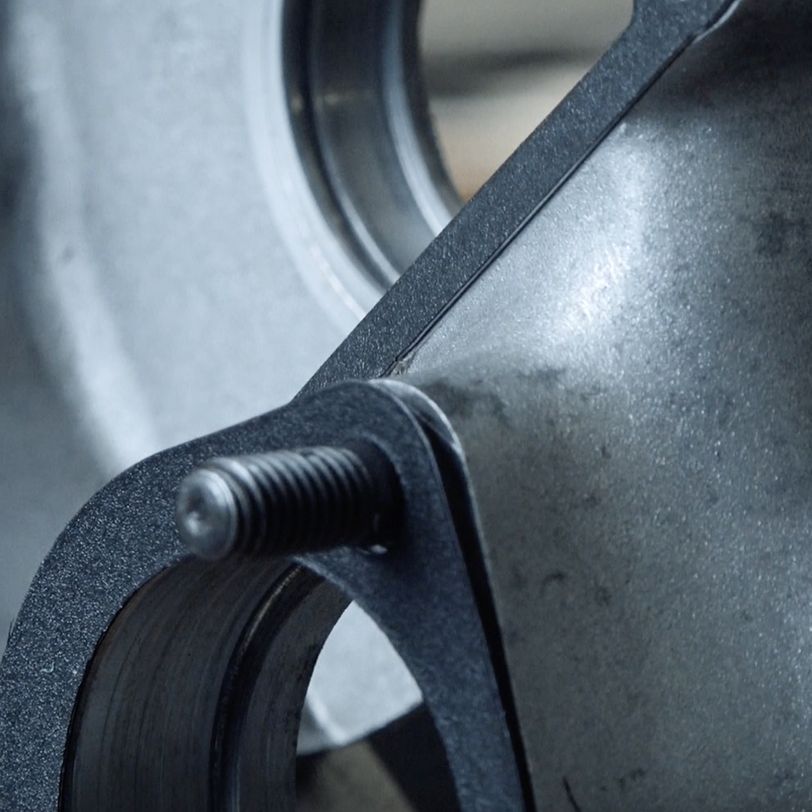

The aluminum core of the gasket ensures excellent resistance to engine pressure and thermal expansion, while the external rubber coating adheres perfectly to the engine surfaces, and it seals common porosity or defects of overhauled engines.
Classic asbestos-free gaskets can not boast these sealing and resistance characteristics.
UNIFIED GASKET KIT:> 40 APPLICATIONS
The composition of this kit unifies the most popular and beloved Vespa Smallframe applications, such as 50 Special, 90, 125 Primavera and ET3.

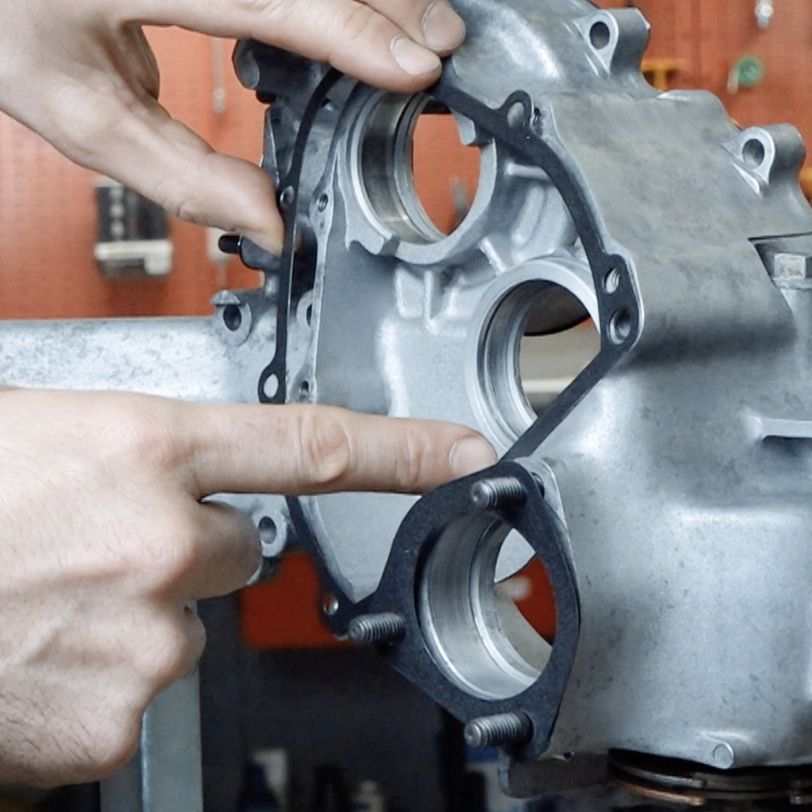

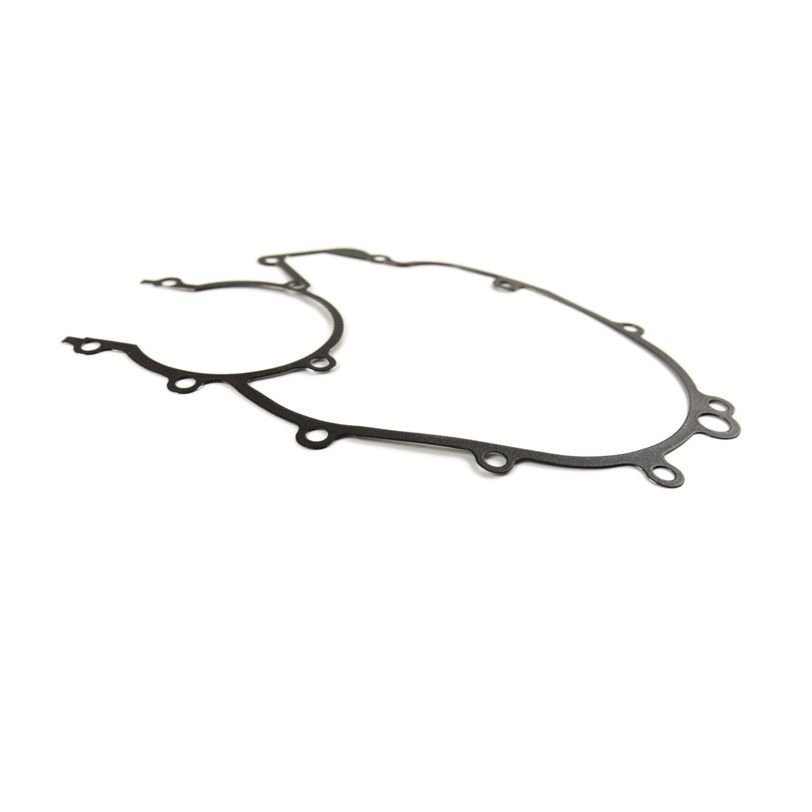

Choose the gaskets that best suits your needs, and carefully use a cutter to remove any extra parts of the crankcase gasket.
Discover the complete list of applications!
Vehicle compatibility
| PIAGGIO VESPA L (V5A1T) 50 cc 1966/1970 |
| PIAGGIO VESPA NUOVA (VMA1T) 125 cc 1965/1967 |
| PIAGGIO VESPA N (V5A1T) 50 cc 1963/1971 |
| PIAGGIO VESPA PK ETS / ELESTART (VMS1T) 125 cc 1984/1985 |
| PIAGGIO VESPA PK HP (V5N2T) 50 cc 1991 |
| PIAGGIO VESPA PK N NUOVO FL (VMX7T) 125 cc 1990/1991 |
| PIAGGIO VESPA PK S / ELESTART (V5X2T) 50 cc 1982/1984 |
| PIAGGIO VESPA PK S / ELESTART (V8X5T) 80 cc 1982/1986 |
| PIAGGIO VESPA PK S / ELESTART (V9X1T) 100 cc 1982/1984 |
| PIAGGIO VESPA PK S / ELESTART (VMX5T) 125 cc 1982/1984 |
| PIAGGIO VESPA PK S LUSSO / ELESTART (V5X2T) 50 cc 1985/1988 |
| PIAGGIO VESPA PK S LUSSO / ELESTART (V8X5T) 80 cc 1985/1988 |
| PIAGGIO VESPA PK SS / ELESTART (V5S1T) 50 cc 1983/1986 |
| PIAGGIO VESPA PK S (V5X1T) 50 cc 1982/1984 |
| PIAGGIO VESPA PK (VMX1T) 125 cc 1982/1985 |
| PIAGGIO VESPA PK XL2 / ELESTART (V5X3T) 50 cc 1986/1990 |
| PIAGGIO VESPA PK XL2 (VMX6T) 125 cc 1986/1990 |
| PIAGGIO VESPA PK XL / ELESTART (V5X3T) 50 cc 1985/1990 |
| PIAGGIO VESPA PK XL / ELESTART (VMX6T) 125 cc 1986/1990 |
| PIAGGIO VESPA PK XL FL (V5N1T) 50 cc 1985/1990 |
| PIAGGIO VESPA PK XL N NUOVA (V5X5T) 50 cc 1989/1990 |
| PIAGGIO VESPA PK XL RUSH / ELESTART (V5X4T) 50 cc 1988/1990 |
| PIAGGIO VESPA PK XLS (V5S2) 50 cc 1986/1990 |
| PIAGGIO VESPA PRIMAVERA ET3 (VMB1T) 125 cc 1976/1983 |
| PIAGGIO VESPA PRIMAVERA (VMA2T) 125 cc 1967/1976 |
| PIAGGIO VESPA RACER RACER (V9SS2T) 90 cc 1971/1974 |
| PIAGGIO VESPA REVIVAL (V5R1T) 50 cc 1990/1991 |
| PIAGGIO VESPA R (V5A1T) 50 cc 1969/1983 |
| PIAGGIO VESPA SPECIAL ELESTART (V5A3T) 50 cc 1969/1972 |
| PIAGGIO VESPA SPECIAL ELESTART (V5B2T) 50 cc 1972/1975 |
| PIAGGIO VESPA SPECIAL ELESTART (V5B4T) 50 cc 1975/1976 |
| PIAGGIO VESPA SPECIAL (V5A2T) 50 cc 1969/1972 |
| PIAGGIO VESPA SPECIAL (V5B1T) 50 cc 1972/1975 |
| PIAGGIO VESPA SPECIAL (V5B3T) 50 cc 1975/1983 |
| PIAGGIO VESPA SR / SPRINTER SR / SPRINTER (V5SS2T) 50 cc 1971/1979 |
| PIAGGIO VESPA SS / SUPER SPRINT SS SUPER SPRINT (V9SS1T) 90 cc 1965/1971 |
| PIAGGIO VESPA S (V5SA1T) 50 cc 1963/1984 |
| PIAGGIO VESPA V90 (V9A1T) 90 cc 1963/1966 |
- Net Weight (Kg): 0.05
- Thickness (mm): 0.50
- Thickness (mm): 0.20
- Net Weight (Kg): 0.00
- Net Weight (Kg): 0.05
- Net Weight (Kg): 0.15
- Vintage: No
- Net Weight (Kg): 0.20
- Vintage: Yes
- Net Weight (Kg): 0.20
- Vintage: No
- Net Weight (Kg): 0.03
- Vintage: No
- Net Weight (Kg): 0.04
- Vintage: No
- Net Weight (Kg): 0.20
- Vintage: Yes
- Net Weight (Kg): 0.40
- Vintage: No
- Net Weight (Kg): 0.13
- Vintage: No
- Oil Seal Total Height (mm): 11.00
- External Diameter (mm): 54.00
- Internal Diameter (mm): 41.00
- Material: Rubber
- Net Weight (Kg): 0.38
- Height: 10.00
- Oil Seal Total Height (mm): 10.50
- External Diameter (mm): 52.00
- Internal Diameter (mm): 40.00
- Oil Seal Total Height (mm): 11.00
- External Diameter (mm): 48.00
- Internal Diameter (mm): 35.00
- Material: Rubber
- Height: 8.00
- Oil Seal Total Height (mm): 10.50
- External Diameter (mm): 53.00
- Internal Diameter (mm): 41.00
- Net Weight (Kg): 0.29
- Vintage: No
- Net Weight (Kg): 0.14
- Vintage: No
