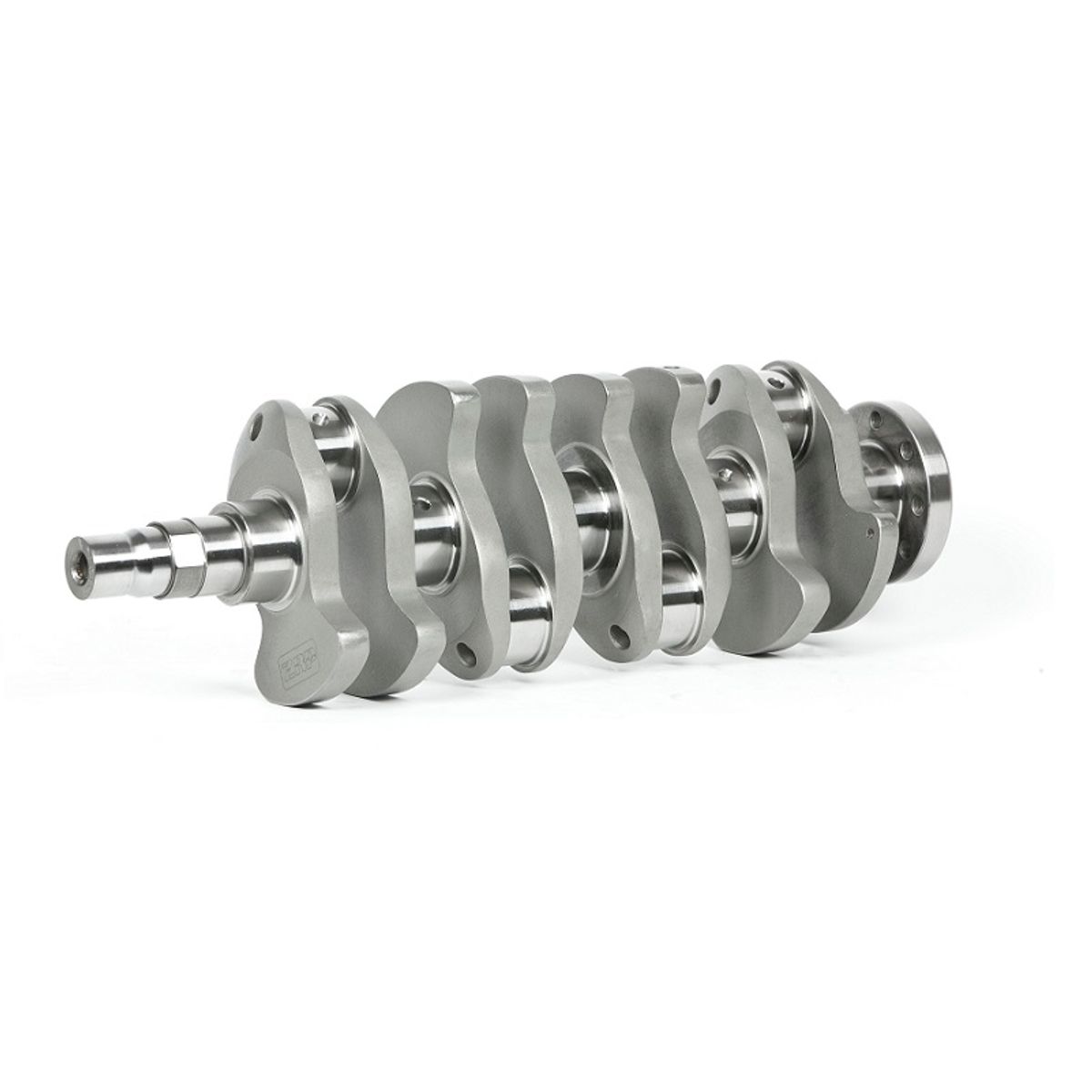

Crankshaft Stroke 85,50mm
Designed to obtain the best performances
Maximum reliability in external applications
High wear resistance properties
Description
Athena started a partnership with ZRP, leader in the production of high quality connecting rods, crankshafts and stroker kit, to extend its offer while keeping the highest standards. ZRP Crankshafts are constructed from 4340 billet precision steel and designed carefully for optimum engine performance. The production process involves meticulous checks such as sonic tests and X-ray for a reliable finished product. Each crankshaft is also exposed to a nitride process for hardening, together with heat treatments for superior wear resistance. They all have blank holes on their surface and they’re all balanced 1 gr.cm +/- 0.1 for 4 cylinders and 2 gr.cm +/- 0.1 for 6 cylinders. All ZRP’s crankshafts are plug and play.
- Material: Steel
- Main Journal (mm): 50.80
- Rod Journal (mm): 45.50
- Stroke (mm): 67.40
- Crankshaft Details: Std Stroke / Lightweight Design
- Main Journal (mm): 56.99
- Rod Journal (mm): 51.99
- Stroke (mm): 82.00
- Crankshaft Details: Stroker Crankshaft / Lightweight Design
- Main Journal (mm): 50.80
- Rod Journal (mm): 53.00
- Stroke (mm): 90.00
- Net Weight (Kg): 13.30
- Main Journal (mm): 57.00
- Rod Journal (mm): 45.00
- Stroke (mm): 88.00
- Crankshaft Details: Lightweight Design with “High-Speed” oiling system
- Hub diameter: 66.45
- Thickness (mm): 16.00
- Type: Spacers without bolts
- Hub C to C: 5X112
- Net Weight (Kg): 0.27
- Net Weight (Kg): 0.32
- Hub diameter: 66.45
- Thickness (mm): 12.00
- Type: Spacers without bolts
- Hub C to C: 5X112
- Gasket Bore Diameter (mm): 84.50
- Thickness (mm): 2.00
- Net Weight (Kg): 0.52
