ATHENA

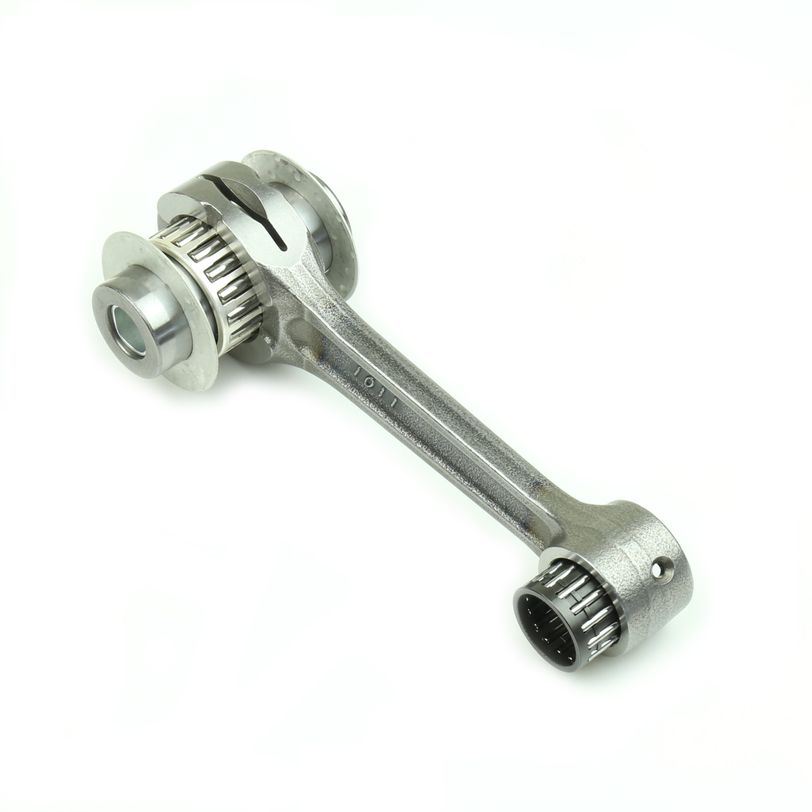

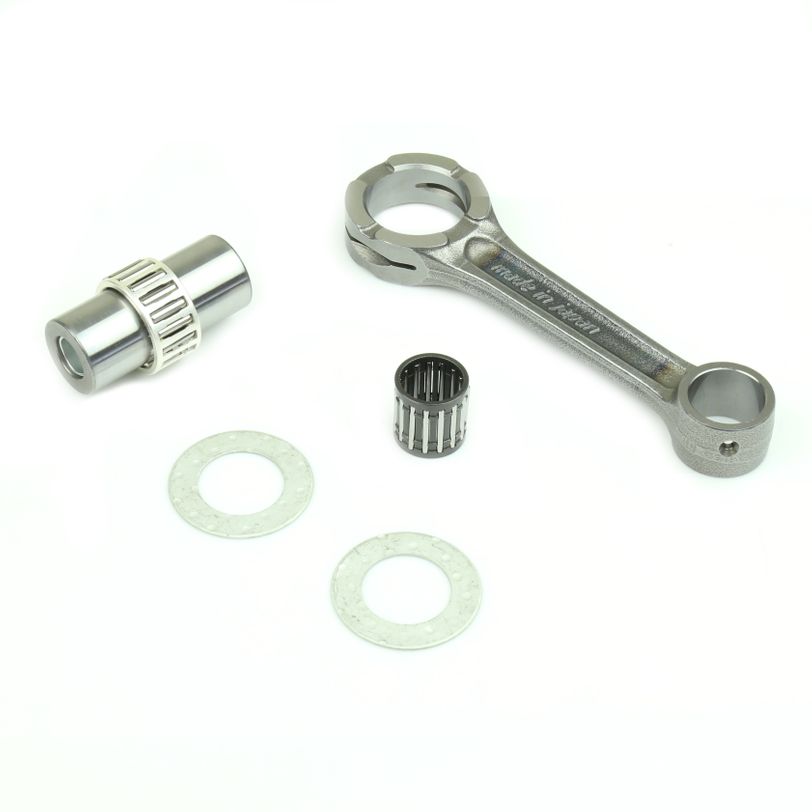

Connecting Rod Offroad Kit
Code: P40321011
$ 121.95
20+ pieces
Quantity
Bullet points
Excellent value for money
High quality materials
High resistance to stresses
Notes
Race Use Only Product - Please check details on the "Race use only" footer's section
Description
Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.
Technical features
| Big End Bore (mm) | 32.00 |
| Big End Pin Diameter (mm) | 25.00 |
| Big End Width (mm) | 16.50 |
| Center To Center (mm) | 125.30 |
| Net Weight (Kg) | 0.48 |
| Piston Pin Diameter (mm) | 22.00 |
| Small End Width (mm) | 20.00 |
| Washer Thickness (mm) | 1.00 |
Vehicle compatibility
| HONDA CR R 250 cc 2002/2007 |
